About product:
|

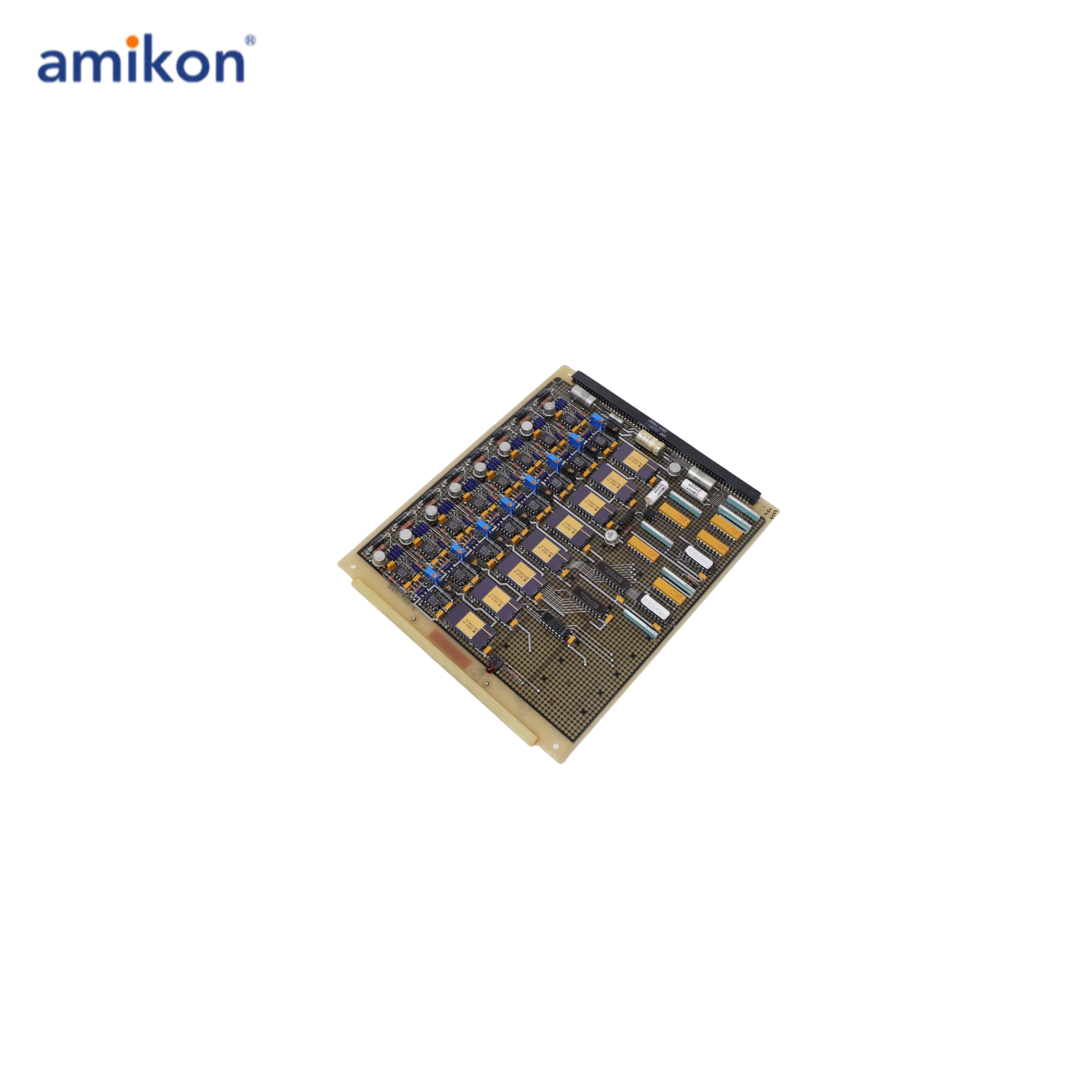

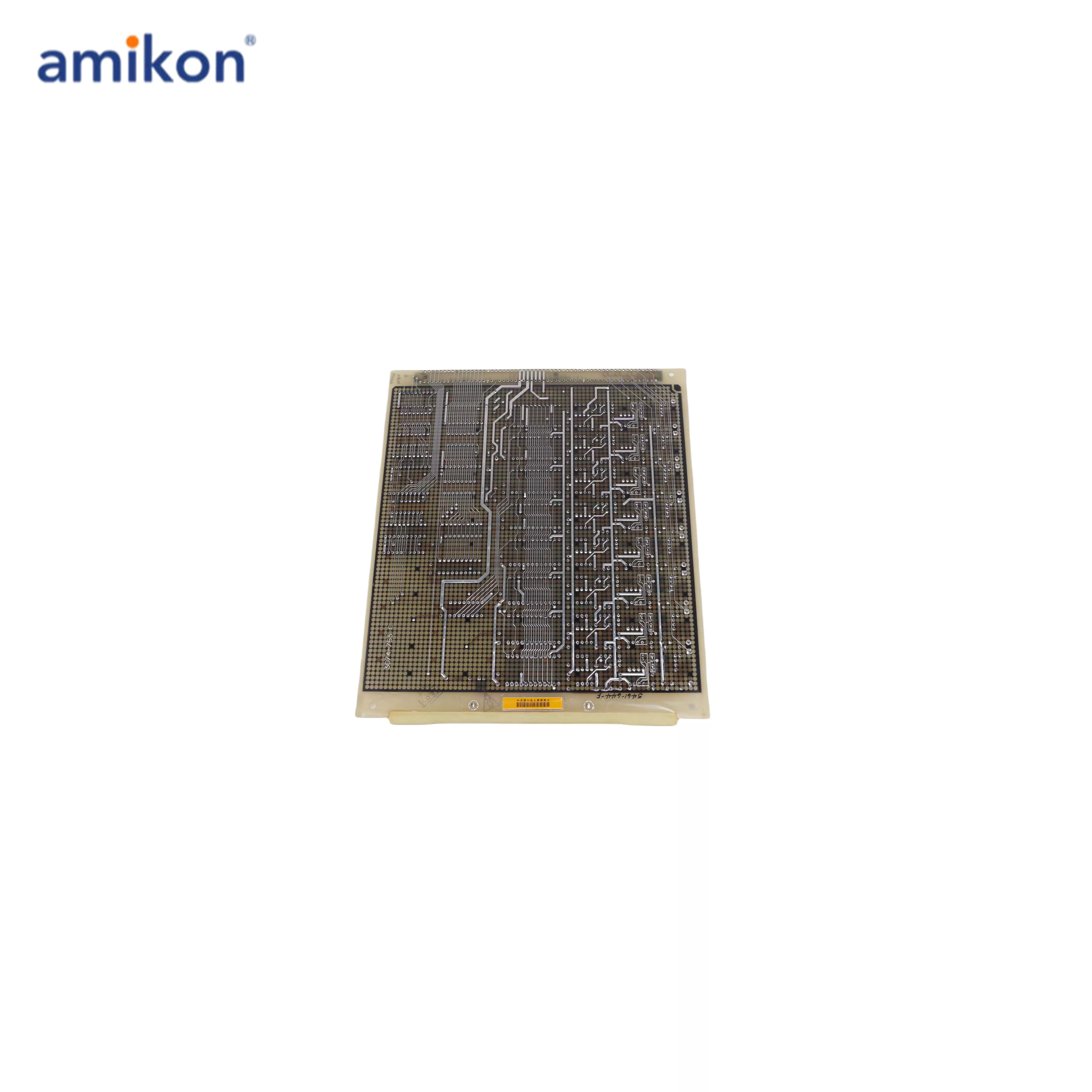

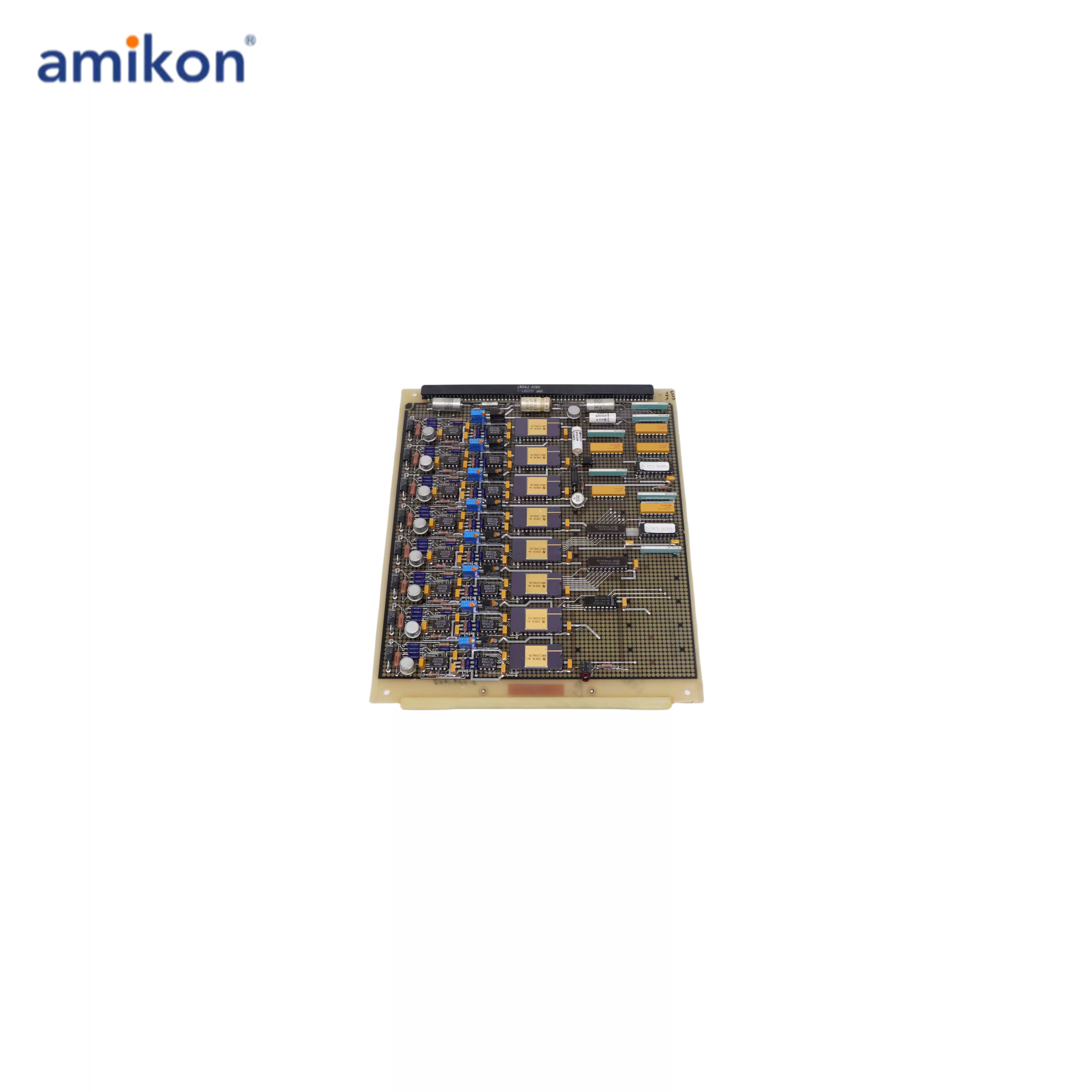

WOODWARD Final Driver Module 5461-655
|
|
The WOODWARD Final Driver Module 5461-655 is an essential component designed for precise control and management of final drive actuators in industrial applications. This module provides high-performance drive capabilities, ensuring accurate and responsive control of machinery and processes. With its robust design, the 5461-655 module is engineered to withstand harsh operating environments, making it ideal for use in power generation and automation systems. Its easy integration and user-friendly interface enhance operational efficiency, making it a reliable choice for optimizing actuator performance.
|
Description:
Part Number: 5461-655
Manufacturer: Woodward
Product type: Final Driver Module
Availability: In Stock
Country of Manufacture: United States (USA)
TMR System Power-up:
If the defined or expected result is not achieved at any point during this procedure, begin system troubleshooting.
1.Make sure the entire MicroNet TMR control system is installed.
2.Turn on one power supply and ensure that the green LED on the power supply is the only one that is lit.
3.Turn on the second power supply and ensure that the green LED on the power supply is the only one that is lit.
4.Ensure that all of the Kernel Power Supply's red fault LEDs are turned off. 2. If the system is configured with the CPU 040, skip step 5 and proceed to step #6. If the CPU 5200 is used in the TMR system, skip step 5 and proceed to step 6.
5.CPU 040: Toggle two of the CPU's RESET switches up briefly before returning them to their normal down position. Toggle the remaining CPU RESET switch to the up position, then back to the down position. The system will now perform off-line diagnostic testing, which may take several minutes. When all CPUs have synchronized and completed their diagnostic tests, there should be no red LEDs on the CPU modules or I/O modules, and the control will begin running the application program.
6.CPU 5200: Wait until the CPUs' off-line diagnostics are complete and the CPUs are visible in AppManager. If the CPUs were running when they were turned off, they will restart the application that was running when they were turned off. If no Applications were running, in AppManager, select an Application on each CPU and click Start. The CPUs will execute the chosen application, synchronize, and finish their diagnostic tests. There should be no red LEDs on the CPU or I/O modules, and the application program should be running on the control. The Green SYSCON and RUN LEDs should be illuminated, while the Yellow STBY LED should be turned off.
WOODWARD Final Driver Module 5461-655 FAQ:
1. What is the primary function of the WOODWARD Final Driver Module 5461-655?
The primary function of the 5461-655 module is to provide precise control and drive capabilities for final drive actuators in various industrial applications.
2. In which industries is this module commonly used?
This module is commonly used in industries such as power generation, process automation, and any application that requires accurate actuator control.
3. How does the module ensure reliable performance in harsh environments?
The 5461-655 module is constructed with durable materials and advanced design features that allow it to operate reliably in challenging conditions.
