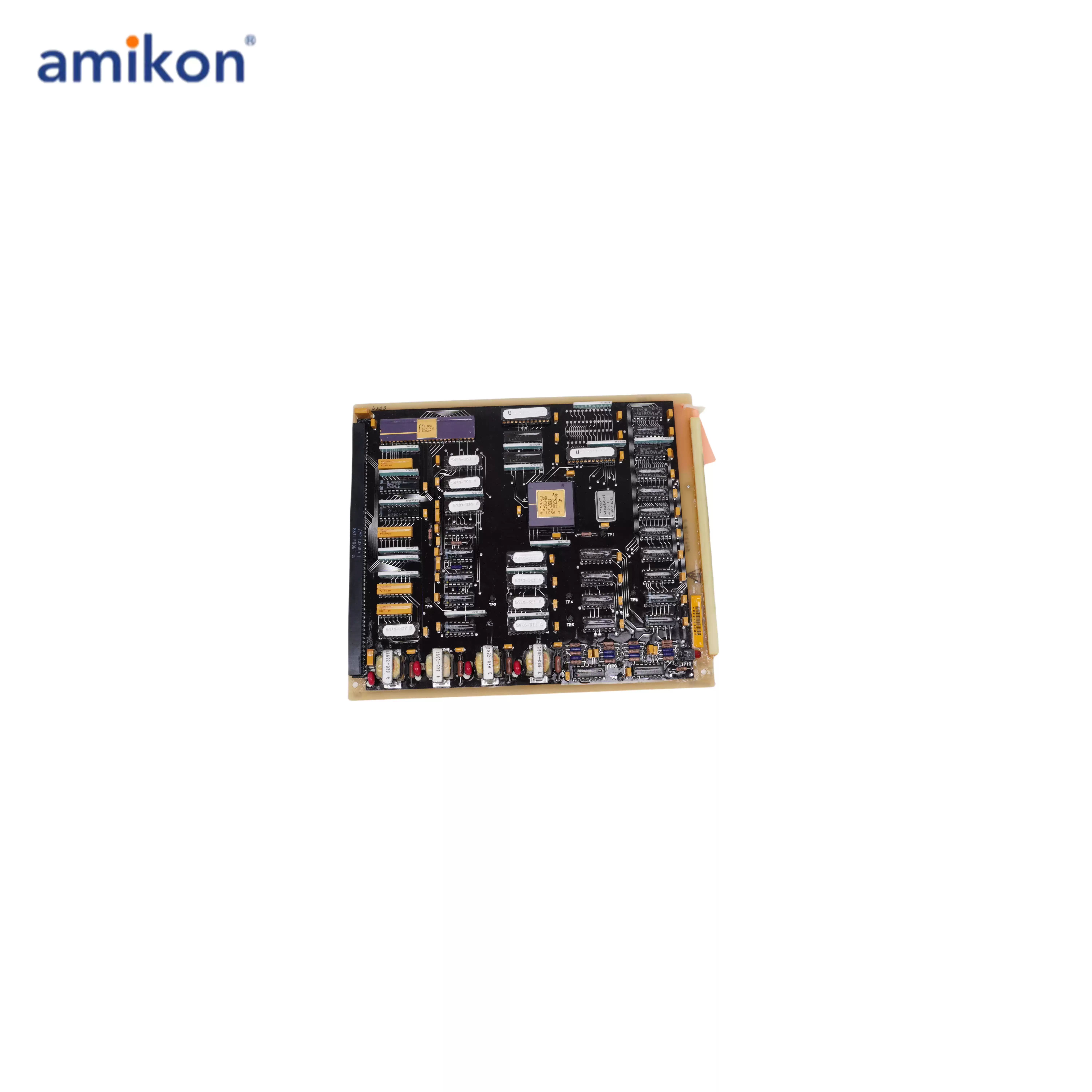

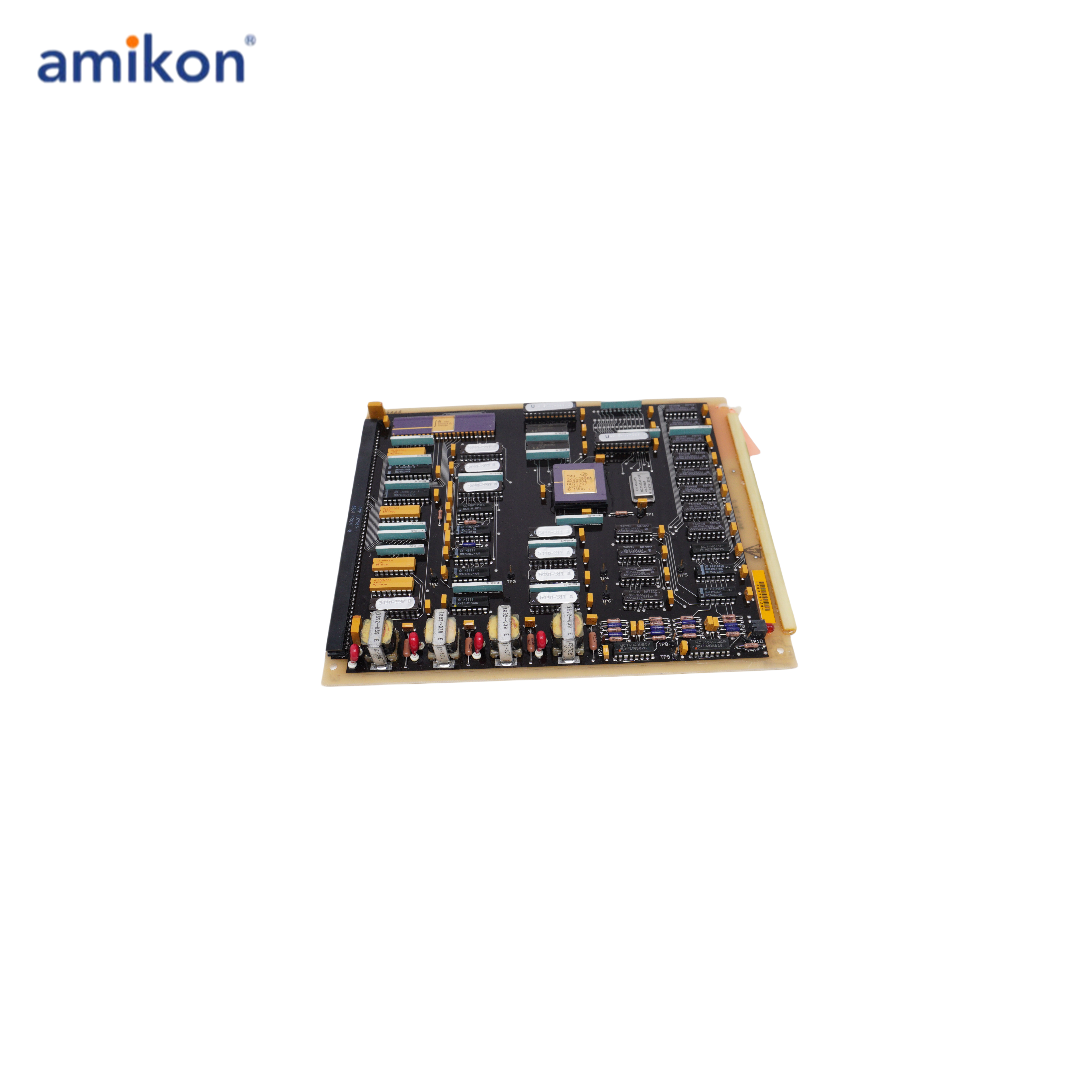

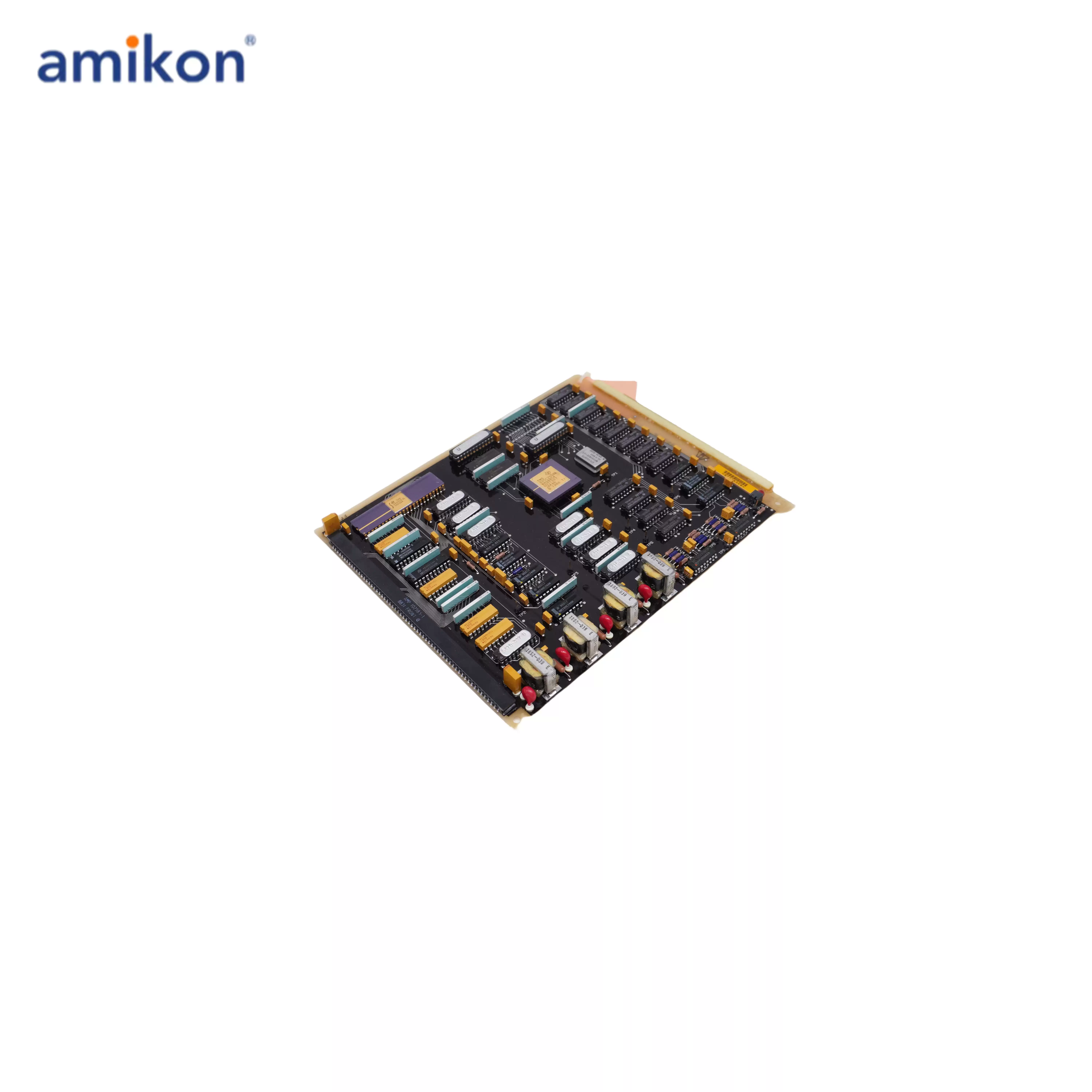

WOODWARD Speed Sensor Board 5462-718
|
|
The WOODWARD Field Terminal Module 5441-693 is a robust and versatile communication interface designed to facilitate seamless interaction between field devices and control systems in industrial applications. This module provides reliable data exchange and supports various communication protocols, ensuring efficient monitoring and control of processes. Its durable construction is tailored for demanding environments, while the intuitive interface allows for easy configuration and maintenance. The 5441-693 module is an essential component for enhancing operational efficiency and reliability in a wide range of industrial settings.
|
Specifications:
Part Number: 5462-718
Manufacturer: Woodward
Product type: Speed Sensor Board
Availability: In Stock
Country of Manufacture: United States (USA)
Speed Sensor Inputs MPUs：
1.Cable Shielding and Grounding: The foundation of dependable signal transmission lies in the shielding of the cable. Ensure that the cable is properly shielded, providing a safeguard against external interference. Equally crucial is the proper grounding of this shield. A secure grounding connection fortifies the shield's effectiveness in shielding the signals from extraneous disturbances.
2.Input Voltage Measurement: On the terminal block, it is imperative to measure the input voltage. The ideal voltage range falls within 1 to 25 VRMS. This measurement not only confirms the health of the electrical connections but also sets the stage for accurate data processing downstream.
3.Signal Waveform Analysis: Scrutinize the signal waveform with precision. A critical attribute to ascertain is the absence of double zero crossings. This absence ensures that the signal is consistent and devoid of anomalies that could lead to erroneous measurements.
4.Ground Connection and 60 Hz Signal: A careful examination should confirm the absence of any ground connections that could taint the signal integrity. Additionally, verify that the resulting 60 Hz signal, often indicative of a grounding issue, is not present. This elimination of unwanted frequencies contributes to the purity of the data.
5.Frequency Calculation: Calculate the frequency of the signal. The target range lies between 100 Hz and 25 kHz. This calculation not only confirms the accuracy of the signal but also aligns with the expected operational parameters.
6.Kernel Inputs Examination: Delve into the individual inputs of each kernel. With the terminal block jumpers in place, both A and B should read an input, and C should reflect the same input as well. The numerical data extracted from these inputs should be incorporated into the application software. If the jumpers are not installed, the numbers will differ for kernel C, and they should display a remarkable consistency, ideally within 0.1% of each other. This synchronization underscores the harmony between the various kernel inputs.
