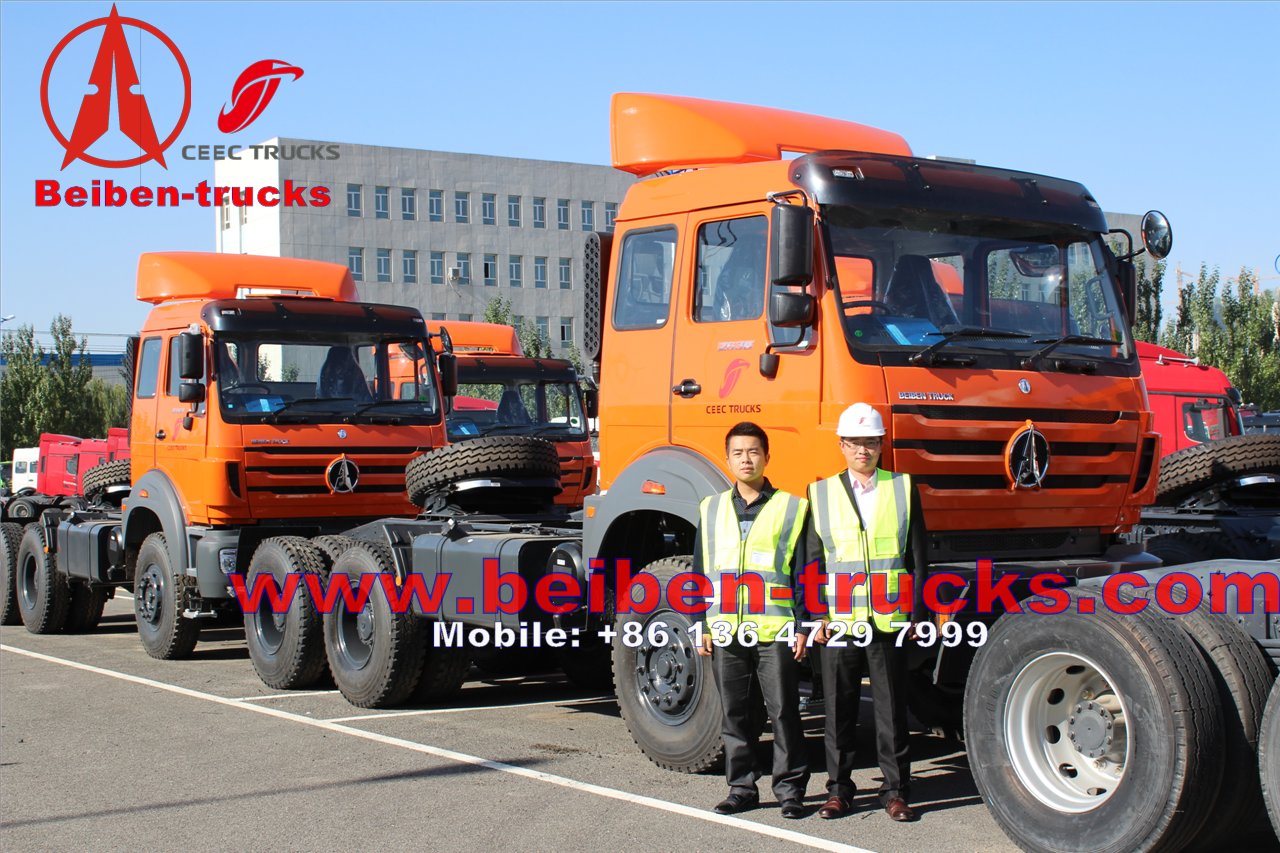

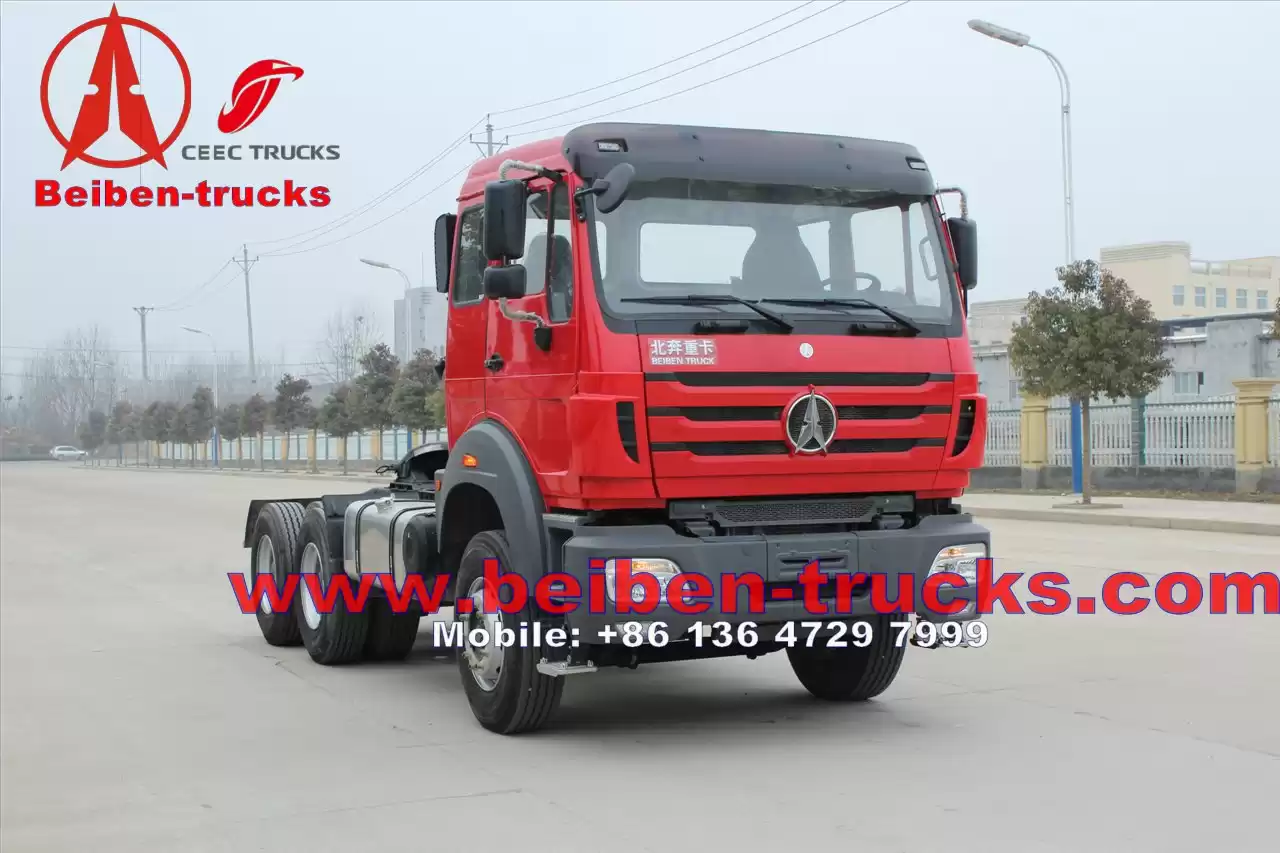

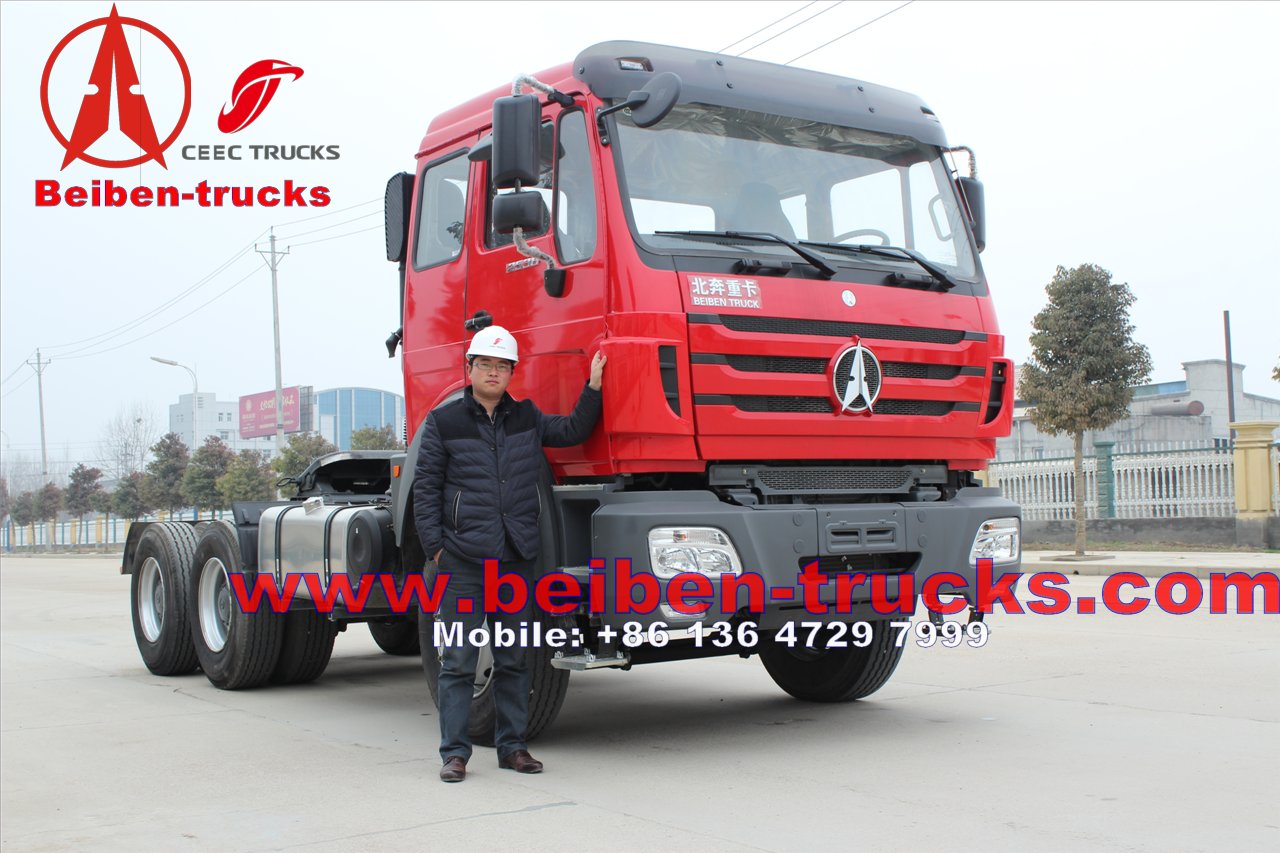

Beiben 2538SZ /6×4/3450+1450/Long Cab/LHD
|
|

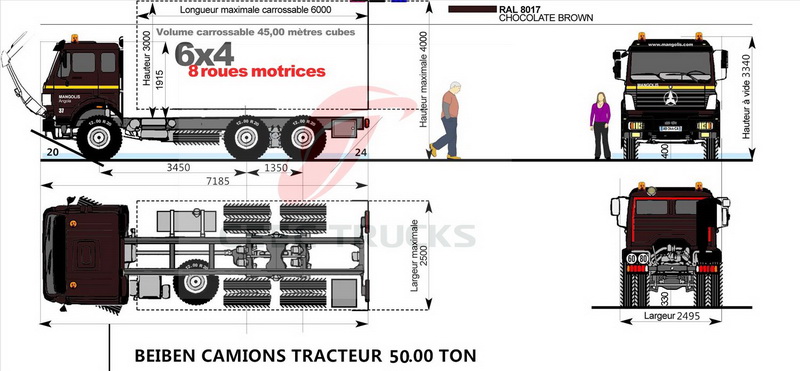

Dimension
|
7136*2495*3180mm
|
|
Approaching
angle/Departure angle
|
26/64°
|
|
Overhang(front/rear)
|
1410/825mm
|
|
Wheel base
|
3450+1450mm
|
|
Max speed
|
90km/h
|
|
Curb weight
|
9200kg
|
|
Max towing
weight
|
36900kg
|
|
Max loading on
fifth wheel, Permitted(kg)
|
15670kg
|
|
Slope climbing
capability
|
Max.40%
|
|
Engine
|
Model
|
WP10.380，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection
|
|
Displacement
|
9.726L/Diesel
|
|
Stroke
|
126/130mm
|
|
Max. power
|
280/2200
(kw/rpm)
|
|
Max.torque
|
1460/1200-1600（Nm/rpm）
|
|
Emission
stantard
|
EuroⅢ
|
|
Fuel tanker
capacity
|
400L
|
|
Clutch
|
∮430, Single
dry frictional disc，Hydraulic
boosting
|
|
Gearbox
|
Fast 12JS200T,
mechanism,12forward gears,2 reverse gear, manual operated
|
|
Gear ratio of
gear box
|
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00
R: 14.86 3.33
|
|
Suspension
system
|
Front
|
Mercedez benz Non-free
standing leaf spring,telescopic shock absorber with stablizer bar suspension
, 13pcs
|
|
Rear
|
Mercedez benz Non-free standing stablization spring,
balance suspension system, 13pcs
|
|
Brake system
|
Service brake
|
Brake gap can
be adjusted automatically, double circulation air brake system
|
|
Assistant
brake
|
Engine exhaust
brake
|
|
Park brake
|
Potential
springs pressing on middle and rear wheels
|
|
Steering
system
|
TAS85,whole
circulation in ball, hydraulic booster
|
|
Frame
|
Fish belly
shape, variable width, variable sections
|
|
Model
|
JOST ∮90 single
direction
|
|
Height of fifth
wheel(mm) (unload)
|
1410
|
|
Radius of
front gap (mm)
|
2300
|
|
Radius of rear
slew (mm)
|
2600
|
|
Front axle
(Mercedes Technology)
|
Double-shoe
pneumatic brake, non-driving steering axle
|
|
Middle and
Rear axle (Mercedes Technology)
|
Double-shoe
pneumatic brake, ductile casting casing, with hub redactor, double reduction
driving axle
|
|
Tyre
|
12.00-R20
|
|
Electrical
system
|
Battery
|
2X12V/135Ah
|
|
Generator
|
28V-35A
|
|
Starter
|
5.4Kw/24V
|
|
Cabin
|
NG80B
Long-Flat roof cabin with single sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C
|
|
