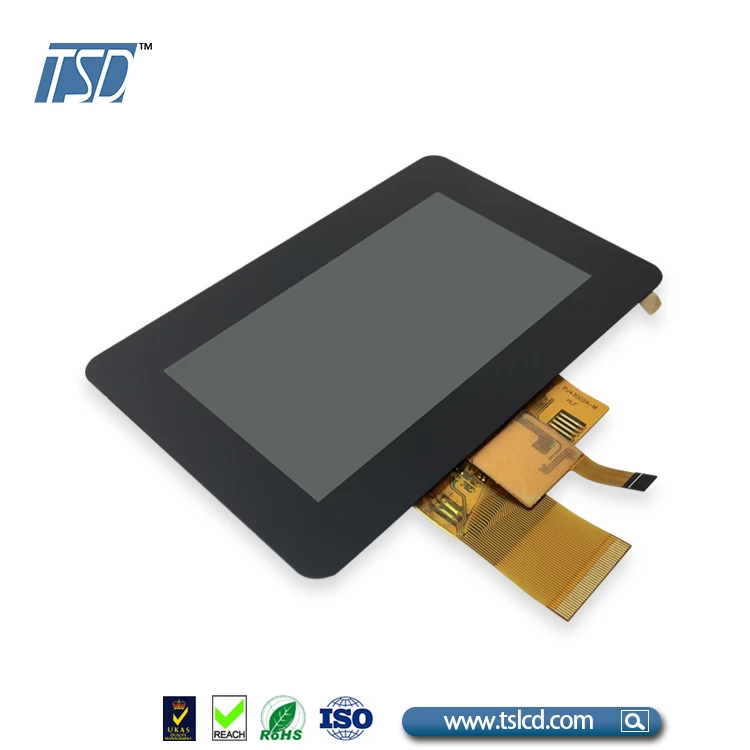

WQVGA 4.3inch LCD display with P-cap touch screen
|
Specification
|
|
Part No.
|
TST043WQBS-36C
|
|
Outline Dimension(mm)
|
105.5x67.2x3.0(Typ.)
|
|
Display Area(mm)
|
95.04(H)x53.41(V)
|
|
Driver IC
|
ST7282
|
|
Resolution(dots)
|
WQVGA, 480*RGB*272
|
|
Description
|
4.3" 500 nits brightness lcd display panel
|
|
Operating temperature(°C)
|
-20~70
|
|
Storage temperature(°C)
|
-30~80
|
|
Number of Pixel(pixels)
|
480RGB(H)*272(V)
|
|
Pixel Pitch
|
0.198(H)*0.198(V)
|
|
Pixel arrangement
|
RGB Vertical stripe
|
|
Display mode
|
Normal white,262k colors, 4.3 inch tft lcd
|
|
Surface treatment
|
Antiglare, Hard-Coating(3H)
|
|
Touch screen
|
with CTP
|
|
Module brightness(cd/m2)
|
500(Typ.)
|
|
Backlight
|
LED Side-light type,
|
|
10 pcs. white led(20MA/chip, recomendation)
|
|
Power Consumption(w)
|
Logic system
|
0.09Max.
|
|
B/L system
|
0.924Max.
|
