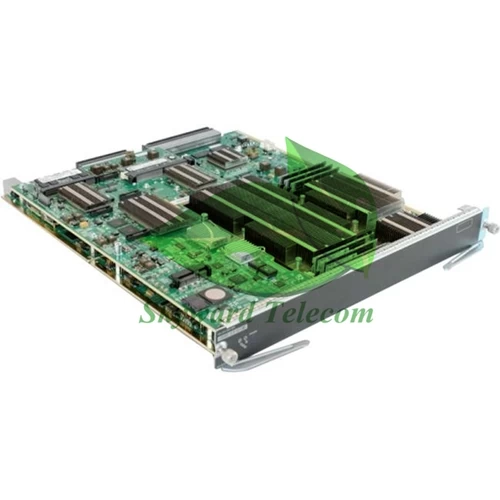

WS-SVC-ASA-SM1-K9 Overview
Cisco Catalyst 6500/7600 Series ASA Service module WS-SVC-ASA-SM1-K9 provides the seamless integration of Cisco Catalyst 6500 Series switch and Cisco 7600 Series router to offer unmatched security, reliability and performance in a single blade. The ASA Services Module makes it easy to add full firewall capabilities to an existing infrastructure by sliding a blade into an empty slot in an existing Catalyst 6500 Series switch or Cisco 7600 Series router - no additional rack space, cabling, power, or physical interface is required. WS-SVC-ASA-SM1-K9 helps data centers increase effectiveness and efficiency in protecting their networks and applications, it also works in tandem with other modules in the chassis to deliver robust security throughout the entire chassis, effectively making every port a security port.
WS-SVC-ASA-SM1-K9 Specification
|
Brand
|
Cisco
|
|
Part
number
|
WS-SVC-ASA-SM1-K9
|
|
Product
Description
|
ASA Services Module for Catalyst 6500-E.
3DES/AES
|
|
Devide
Tyde
|
Cisco
Catalyst 6500/7600 ASA Service moulde
|
|
Maximum firewall throughput
|
20 Gbps
|
|
Multiprotocol firewall throughput
|
16 Gbps
|
|
Concurrent connections
|
10000000
|
|
Connections per second
|
300000
|
|
Maximum 3DES/AES VPN throughput
|
2 Gbps
|
|
Maximum site-to-site and IPsec IKEv1 client VPN user
sessions
|
10000
|
|
Maximum AnyConnect or clientless VPN user sessions
|
10000
|
|
Cisco Cloud Web Security users
|
7500
|
|
Capacities
|
|
|
Security contexts
|
5, 10,
20, 50, 100, 250 licenses (2 included)
|
|
Cards per switch
|
4 ASA
Services Modules per Catalyst 6500 or Cisco 7600 Series chassis
|
|
VLANs
|
1000
|
|
High availability
|
Active/Active,
Active/Standby
|
|
NAT translations
|
10
million
|
|
Transparent mode VLANs
|
16 pairs
|
|
Access control entries
|
2 million
|
|
Supervisor engines supported
|
● 6500 Series Supervisor Engine 2T and
Supervisor Engine 720 Systems
|
|
Warranty
|
One year
|
|
Lead
time
|
2-3 business days
|
|
Shipment
|
DHL, Fedex, Aramex, EMS or per
request
|
