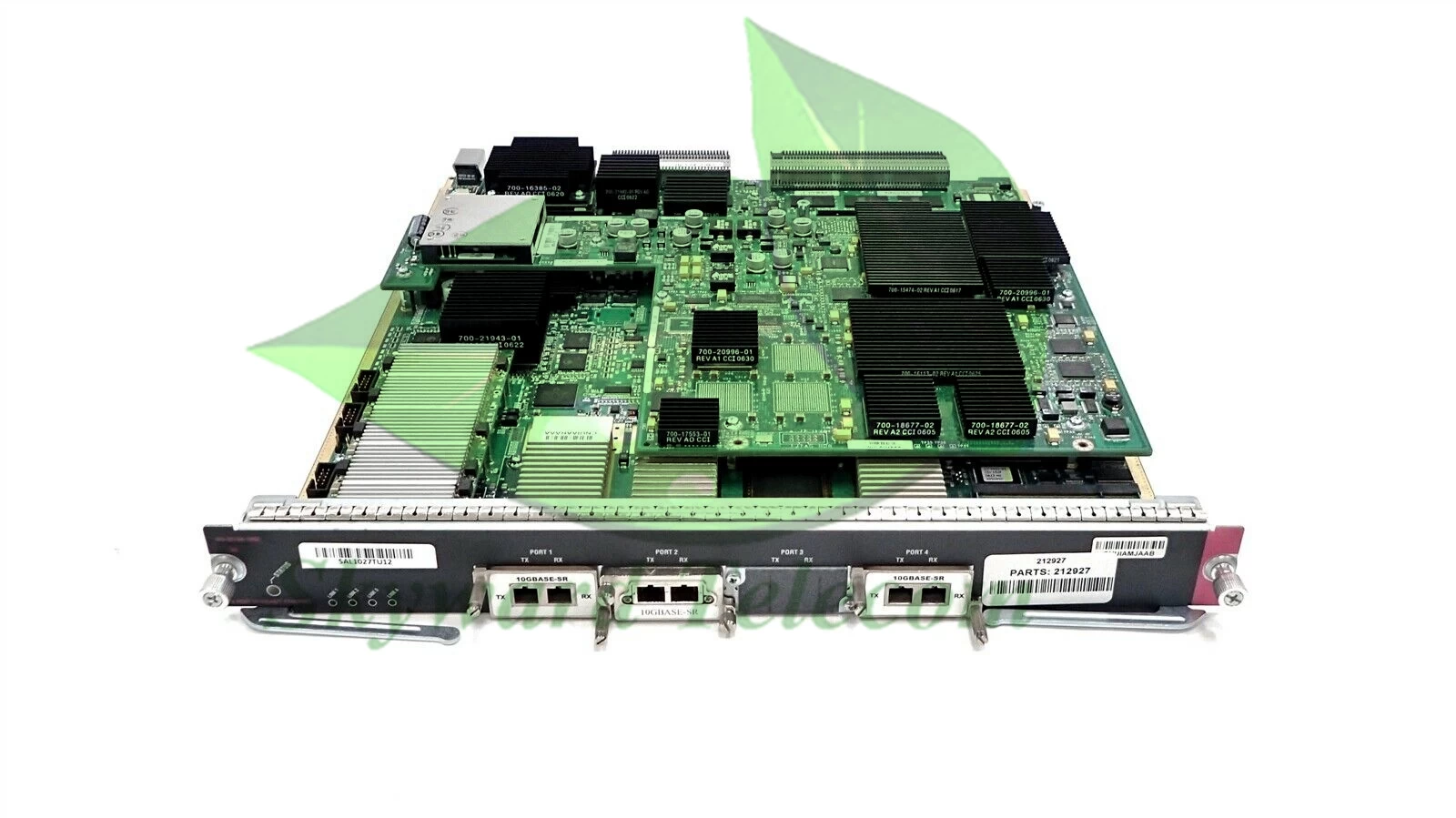

Product Code
|
WS-X6704-10GE
|
|
Feature
|
4-Port
10GbE Fiber Module
|
|
Ports
|
4
|
|
Optics
|
XENPAK
|
|
Switch
fabric connection
|
40
Gbps (80 Gbps full duplex)
|
|
Oversubscription
|
0.042361111
|
|
Forwarding
engine
|
Default:
Centralized forwarding card (CFC)
|
|
|
Optional: Distributed
forwarding card with DFC3A, DFC3B, DFC3BXL, DFC3C, or DFC3CXL
|
|
Queues
|
Receive:
8q8t
|
|
|
Transmit: 1p7q8t
|
|
Queuing
mechanisms
|
Class
of service (CoS)–based queue mapping
|
|
Scheduler
|
Deficit
Weighted Round Robin (DWRR)
|
|
|
Weighted Random Early
Detection (WRED)
|
|
Port
buffers
|
16
MB per port
|
|
Hardware-based
multicast replication
|
Ingress
and egress
|
|
(Layer 2)
|
Approximately 20 GB
per replication engine
|
|
|
2 replication engines
per module
|
|
Hardware-based
multicast replication
|
Ingress
and egress
|
|
(Layer 3)
|
Approximately 10 GB
per replication engine
|
|
|
2 replication engines
per module
|
|
Jumbo
frame support for bridged and routed packets
|
Up
to 9216 bytes
|
|
Maximum
port density per chassis
|
34
ports (9-slot chassis)
|
|
Maximum
port density per VSS
|
68
ports
|
|
Can
be used to form virtual switch link
|
No
|
|
Supervisor
engines supported
|
Cisco Catalyst 6500 Series Virtual Switching
Supervisor Engine 720 with 10GE uplinks or Supervisor Engine 720 with any
policy feature card (PFC; chassis will work in lowest common denominator
mode)
|
|
Chassis
supported
|
Any Cisco Catalyst 6500 E-Series chassis, C6509-NEB-A
chassis, non-E-Series chassis with fan tray 2, or Cisco 7600 Series or 7600-S
Series chassis (NEBS compliant: operating temperature up to 55°C)
|
|
|
Not supported in
Cisco Catalyst 6503 non-E Series chassis
|
|
Slot
requirements
|
Can occupy any slot in any Cisco Catalyst 6503-E,
6504-E, 6506, 6506-E, 6509, 6509-E, 6509-V-E, or 6509-NEB-A chassis; or Cisco
7604, 7607, 7609, or 7600-S Series chassis
|
|
|
Can occupy only slots
9 through 13 in a Cisco Catalyst 6513 or Cisco 7613 chassis
|
|
Onboard
memory
|
256
MB default, upgradable to 512 MB or 1 GB
|
|
Warranty
|
1 year
|
|
Lead time
|
2-3 business days
|
|
Shipment
|
DHL, Fedex, Aramex,
EMS or per request
|
