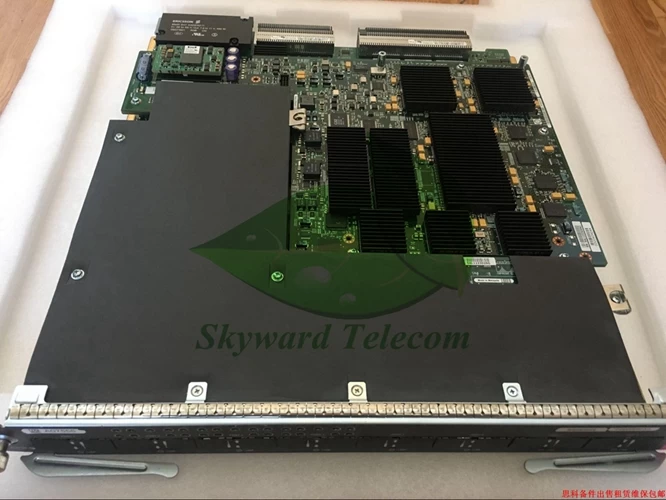

Cisco Catalyst 6500 Series 10 Gigabit Ethernet modules Specifications
|
|
Standard protocols
|
IEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ak, IEEE 802.3aq, and IEEE 802.3an
|
|
Physical specifications
|
● Occupies one slot in the Cisco Catalyst 6500 Series chassis or Cisco 7600 Series chassis
● Dimensions (H x W x D): 1.2 x 14.4 x 16 in. (3.0 x 35.6 x 40.6 cm)
● Weight:
● Cisco Catalyst 6708 and 6716: 13 pounds excluding X2 components; ¼ pound for each X2
◦ Cisco Catalyst 6704: 10 pounds excluding XENPAK and DFC components; 2/3 pound for each XENPAK
|
|
Environmental conditions
|
Operating temperature:
● Agency-certified for operation: 32 to 104°F (0 to 40°C)
● Design and tested for operation 32 to 130°F (0 to 55°C)
● Storage temperature: –40 to 167°F (–40 to 75°C)
● Relative humidity: 10 to 90 percent, noncondensing
Operating altitude:
● Agency-certified for operation: –500 to 6500 ft (–150 to 2000m)
● Designed and tested for operation –500 to 10000 ft (–150 to 3000m)
|
|
Regulatory compliance
|
Cisco Catalyst 6500 Series 10 Gigabit Ethernet modules, when installed in a system, comply with the following EMC and safety standards:
EMC Standards:
● FCC Part 15 (CFR 47) Class A
● ICES-003 Class A
● VCCI Class A
● EN55022 Class A
● EN55024
● CISPR24
● CISPR 22 Class A
● AS/NZS CISPR 22 Class A
● ETS 300 386
● KN 22 Class A
● EN 50082-1
● EN61000-3-2
● EN61000-3-3
● EN61000-6-1
● CNS13438 Class A
● KN6100 -4 Series
Safety Standards:
● UL 60950-1
● CAN/CSA C22.2 No. 60950
● EN 60950-1
● IEC 60950-1
● AS/NZS 60950-1
● IEC 60825 Class 1
● EN 60825 Class 1
● 21CFR 1040
|
|
NEBS criteria levels
|
SR-3580 Issue 3, June 2007 (GR-63-CORE, issue 3, and GR-1089-CORE, issue 4)
|
|
ETSI
|
● ETS 300 019-2-1, Class 1.1 Storage
● ETS 300 019-2-2, Class 2.1 and 2.2 Transportation
● ETS 300 019-2-3, Class 3.1E Stationary Use
|
|
Network management
|
● ETHERLIKE-MIB (RFC 1643)
● IF-MIB (RFC 1573)
● Bridge MIB (RFC 1493)
● CISCO-STACK-MIB
● CISCO-VTP-MIB
● CISCO-CDP-MIB
● RMON MIB (RFC 1757)
● CISCO-PAGP-MIB
● CISCO-STP-EXTENSIONS-MIB
● CISCO-VLAN-BRIDGE-MIB
● CISCO-VLAN-MEMBERSHIP-MIB
● ENTITY-MIB (RFC 2037)
● HC-RMON
● RFC1213-MIB (MIB-II)
● SMON-MIB
|
|
Power requirements
|
● WS-X6716-10T-3C: 509.3W (12.1A @ 42V)
● WS-X6716-10T-3CXL: 538.7W (12.8A @ 42V)
● WS-X6716-10G-3C: 457.8W (10.9A @ 42V)
● WS-X6716-10G-3CXL: 487.2W (11.6A @ 42V)
● WS-X6708-10G-3C: 444.36W (10.58A @ 42v)
● WS-X6708-10G-3CXL: 473.76w (11.28A @ 42V)
● WS-X6704-10GE with DFC3CXL: 362.46W (8.63A @ 42V)
● WS-X6704-10GE with DFC3C: 333.06W (7.93A @ 42V)
● WS-X6704-10GE with DFC3BXL: 402.36W (9.58A @ 42V)
● WS-X6704-10GE with DFC3B: 377.16W (8.98A @ 42V)
● WS-X6704-10GE with DFC3A: 389.76W (9.28A @ 42V)
● WS-X6704-10GE with CFC: 295.26W (7.03A @ 42V)
|
|
Indicators
|
● Status: green (operational), red (faulty), and orange (module booting)
● Link: green (port enabled and connected), orange (port disabled), and off (port enabled and not connected)
|
