Standard protocols
|
IEEE
802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE
802.3ad, IEEE 802.3ae, IEEE 802.3ak, IEEE 802.3aq, and IEEE 802.3an
|
|
Physical specifications
|
Occupies

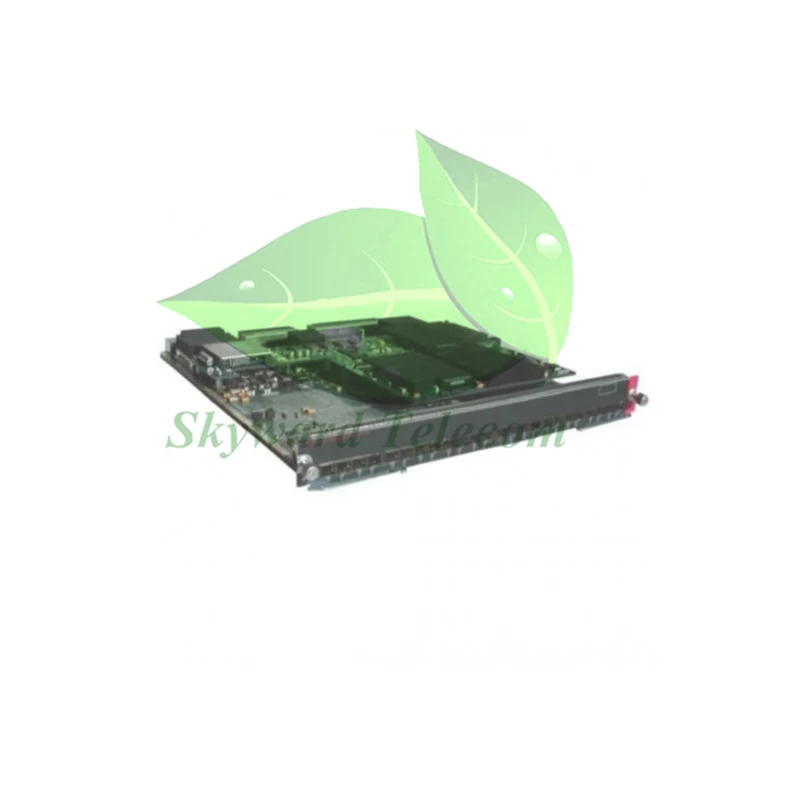

one slot in the Cisco Catalyst 6500 E-Series chassis
|
|
Dimensions (H x W x D): 1.2 x 14.4 x 16 in. (3.0 x 35.6 x 40.6 cm)
|
|
Weight:
|
|
WS-X6816-10G-2T & 2TXL, WS-X6816-10T-2T
& 2TXL: 13.6 pounds excluding X2 components; ¼ pound for each X2
|
|
Environmental
conditions
|
Operating
temperature:
|
|
Agency-certified for operation: 32 to 104°F (0 to 40°C)
|
|
Design and tested for operation 32 to 130°F (0 to 55°C)
|
|
Storage temperature: -40 to 167°F (-40 to 75°C)
|
|
Relative humidity: 10 to 90 percent, noncondensing
|
|
Operating altitude:
|
|
Agency-certified for operation: -500 to 6500 ft (-150 to 2000m)
|
|
Designed and tested for operation -500 to 10000 ft (-150 to 3000m)
|
|
Regulatory compliance
|
6800 Series 10 Gigabit Ethernet Copper module, when
installed in a system, comply with the following EMC and safety
standards:
|
|
EMC Standards:
|
|
● FCC Part 15 (CFR 47) Class A
|
|
● ICES-003 Class A
|
|
● VCCI Class A
|
|
● EN55022 Class A
|
|
● EN55024
|
|
● CISPR24
|
|
● CISPR 22 Class A
|
|
● AS/NZS CISPR 22 Class A
|
|
● ETS 300 386
|
|
● KN 22 Class A
|
|
● EN 50082-1
|
|
● EN61000-3-2
|
|
● EN61000-3-3
|
|
● EN61000-6-1
|
|
● CNS13438 Class A
|
|
● KN6100 -4 Series
|
|
Safety Standards:
|
|
● UL 60950-1
|
|
● CAN/CSA C22.2 No. 60950
|
|
● EN 60950-1
|
|
● IEC 60950-1
|
|
● AS/NZS 60950-1
|
|
● IEC 60825 Class 1
|
|
● EN 60825 Class 1
|
|
● 21CFR 1040
|
|
NEBS
criteria levels
|
SR-3580
Issue 3, June 2007 (GR-63-CORE, issue 3, and GR-1089-CORE, issue 4)
|
|
ETSI
|
● ETS
300 019-2-1, Class 1.1 Storage
|
|
● ETS 300 019-2-2, Class 2.1 and 2.2 Transportation
|
|
● ETS 300 019-2-3, Class 3.1E Stationary Use
|
|
Network management
|
● ETHERLIKE-MIB
(RFC 1643)
|
|
● IF-MIB (RFC 1573)
|
|
● Bridge MIB (RFC 1493)
|
|
● CISCO-STACK-MIB
|
|
● CISCO-VTP-MIB
|
|
● CISCO-CDP-MIB
|
|
● RMON MIB (RFC 1757)
|
|
● CISCO-PAGP-MIB
|
|
● CISCO-STP-EXTENSIONS-MIB
|
|
● CISCO-VLAN-BRIDGE-MIB
|
|
● CISCO-VLAN-MEMBERSHIP-MIB
|
|
● ENTITY-MIB (RFC 2037)
|
|
● HC-RMON
|
|
● RFC1213-MIB (MIB-II)
|
|
● SMON-MIB
|
|
Power requirements
|
● WS-X6816-10G-2T:
488.5 Watts
|
|
● WS-X6816-10G-2TXL: 503.5 Watts
|
|
● WS-X6816-10T-2T: 514.96 Watts
|
|
● WS-X6816-10T-2TXL: 529.96 Watts
|
|
Indicators
|
● Status:
green (operational), red (faulty), and orange (module booting)
|
|
● Link: green (port enabled and
connected), orange (port disabled), and off (port enabled and not connected)
|
|
Warranty
|
1 year
|
|
Lead time
|
2-3 business days
|
|
Shipment
|
DHL, Fedex, Aramex,
EMS or per request
|
