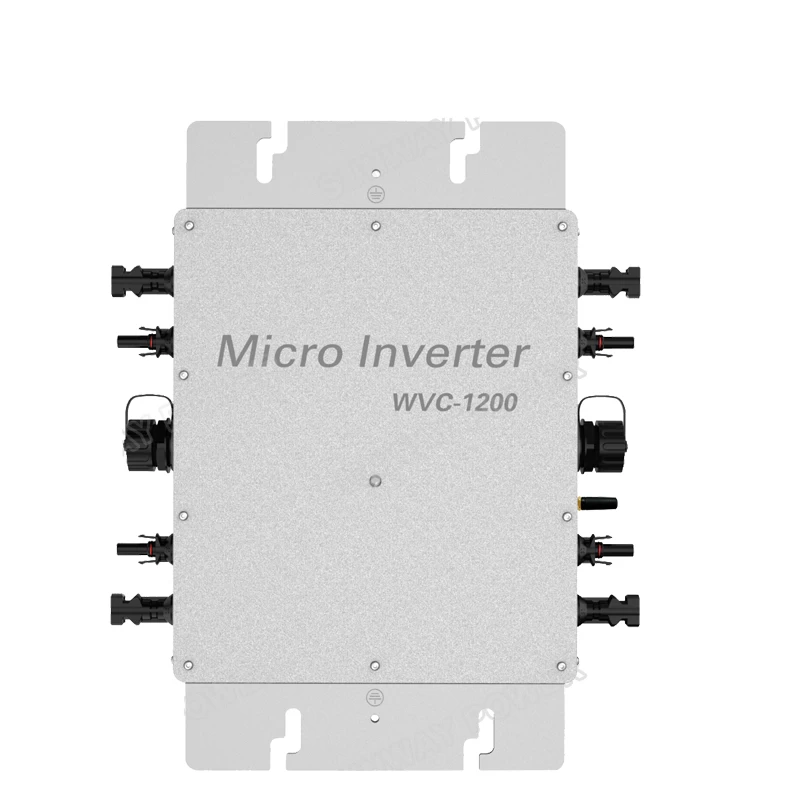

WVC-1200 (Wireless) Using IP65 waterproof streamline design, Can effectively prevent rainwater on the surface erosion, Built-in high-performance Maximum Power Point Tracking（MPPT）Function，Better able to track changes in the solar luminosity and control different output power, Effectively capture and collect sunlight. AC electric power transmission using the reverse transmission technology, Is one of our patented technology, The inverter output power can provide load priority use, Extra electricity to the grid, Efficient use of the inverter to the power emitted, Electricity transmission rate of up to 99%.
Features：
l High performance maximum power point tracking (MPPT)
l Reverse power transmission
l Intelligent monitoring management
l Input /output is fully isolated to protect the electrical safety
l Multiple parallel stacking
l Digital control system
l Simplify maintenance (user serviceable)
l Operation and maintenance costs low
l Flexible installation
l Use the wireless 433MHz communication mode
Parameters of WVC 1200 micro inverter grid tie inverter
WVC-1200 (Wireless)
|
Parameters |
WVC-1200 (Wireless)-120VAC/230VAC |
|||
|
Maximum input power |
1200Watt |
|||
|
Recommended using solar panels |
Power4×300W,open circuit voltage 36-50VOC |
|||
|
Solar panel open circuit voltage range |
36-50VOC |
|||
|
Peak power tracking voltage |
22-50V |
|||
|
Min / Max start voltage |
22-50V |
|||
|
Maximum DC short current |
80A |
|||
|
Maximum Input Current |
54.4A |
|||
|
Automatic shift AC voltage and output |
Automatic shift local grid voltage |
|||
|
Output Data |
@120VAC |
@230VAC |
||
|
Peak power output |
1200Watt |
1200Watt |
||
|
Rated output power |
1150Watt |
1150Watt |
||
|
Rated output current |
9.58A |
5A |
||
|
Rated voltage range |
80-160VAC |
180-260VAC |
||
|
Rated frequency range |
47-52.5Hz/57-62.5Hz |
47-52.5Hz/57-62.5Hz |
||
|
Power factor |
>99% |
>99% |
||
|
Maximum units per branch circuit |
3PCS（Single-phase） |
5PCS（Single-phase） |
||
|
Output Efficiency |
@120VAC |
@230VAC |
||
|
Static MPPT efficiency |
99.5% |
99.5% |
||
|
Maximum output efficiency |
91.2% |
92.5% |
||
|
Night time power consumption |
<1W |
<1W |
||
|
THD |
<5% |
<5% |
||
|
Exterior |
||||
|
Operating temperature range |
-40℃ to +60℃ |
|||
|
Dimensions (WxHxD) |
370mm×300mm×41.6mm |
|||
|
N.W. |
2.83kg |
|||
|
Waterproof level |
IP65 |
|||
|
Cooling |
Self-cooling |
|||
|
Communication Mode |
Wireless 433MHz |
|||
|
Power transmission mode |
Reverse transfer, load priority |
|||
|
Monitoring System |
Lifetime free |
|||
|
Electromagnetic compatibility |
EN50081.part1 EN50082.part1 |
|||
|
Grid disturbance |
EN61000-3-2Safety EN62109 |
|||
|
Grid detection |
DIN VDE 1026 UL1741 |
|||
|
Certificate |
CEC,CE National patent technology |
|||
|
Package weight |
||||
|
Sepcification |
Single(packing) |
Whole(2PCS) |
||
|
G.W. |
4.03Kg |
9.00Kg |
||
|
Dimensions |
430×375×115mm |
430×400×270mm |
||
* Attn:each MODEM can control 46 PCS micro inverters on the condition of non-intelligent electric box

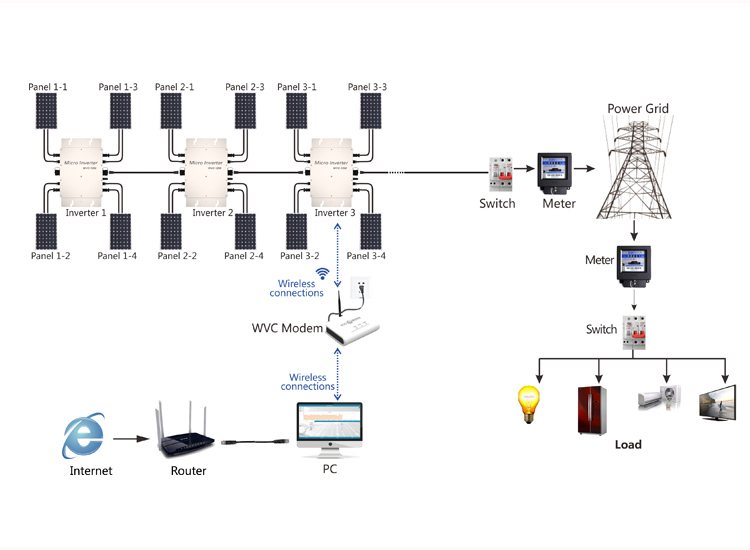

System connection of WVC 1200 micro inverter

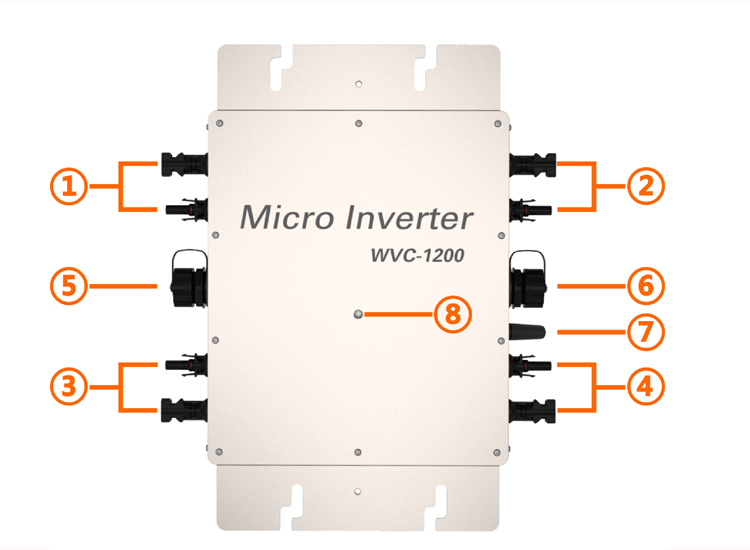

①PV Panel Input 1 ②PV Panel Input 2 ③PV Panel Input 3 ④PV Panel Input 4
⑤AC Input – Connect to the Previous ⑥AC Output – Connect to the Next
⑦433/462MHz Wireless Line ⑧LED Display
