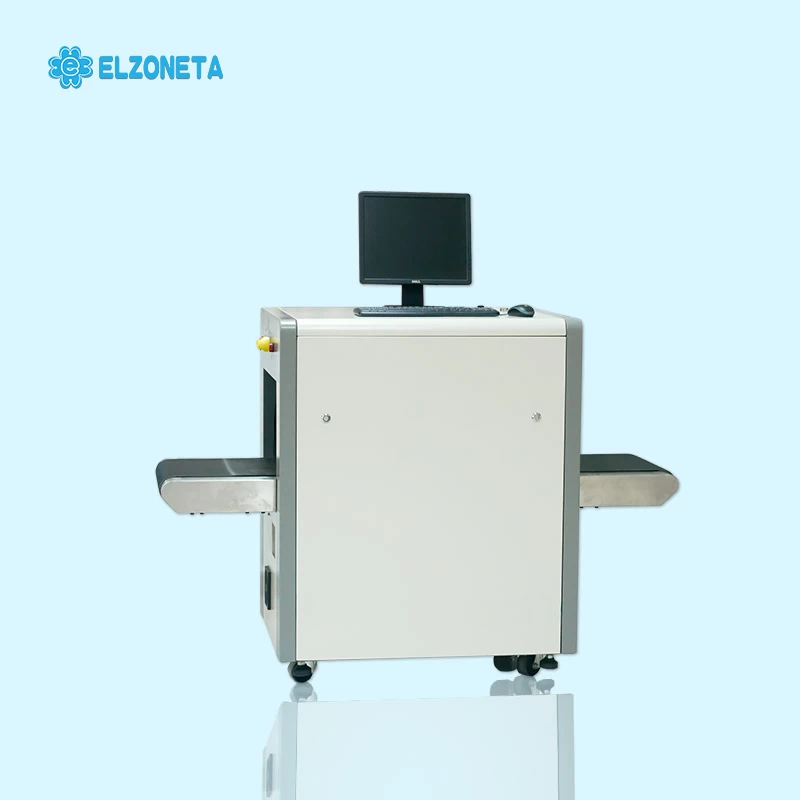

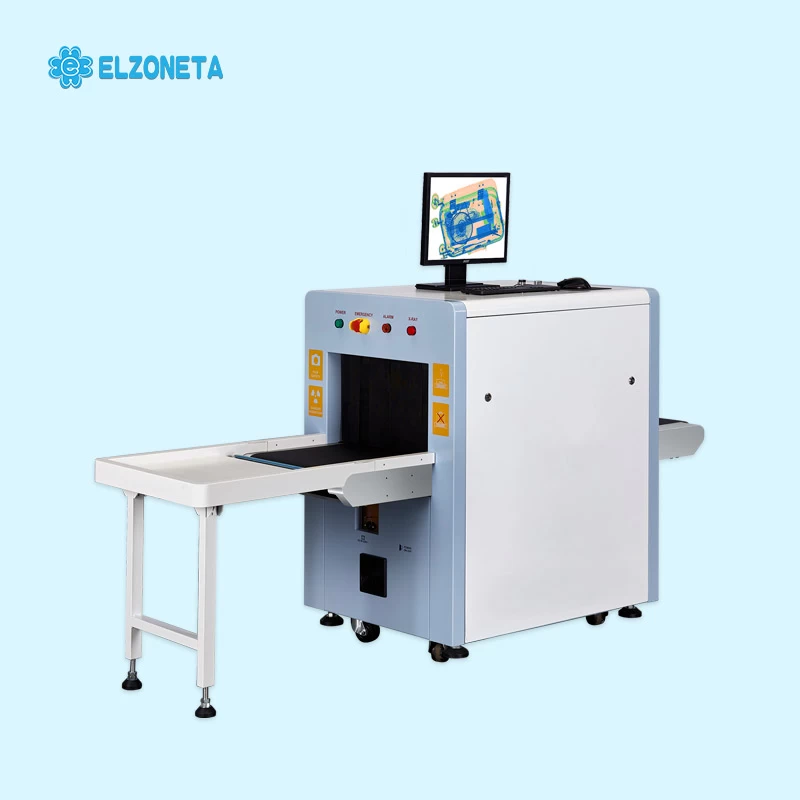

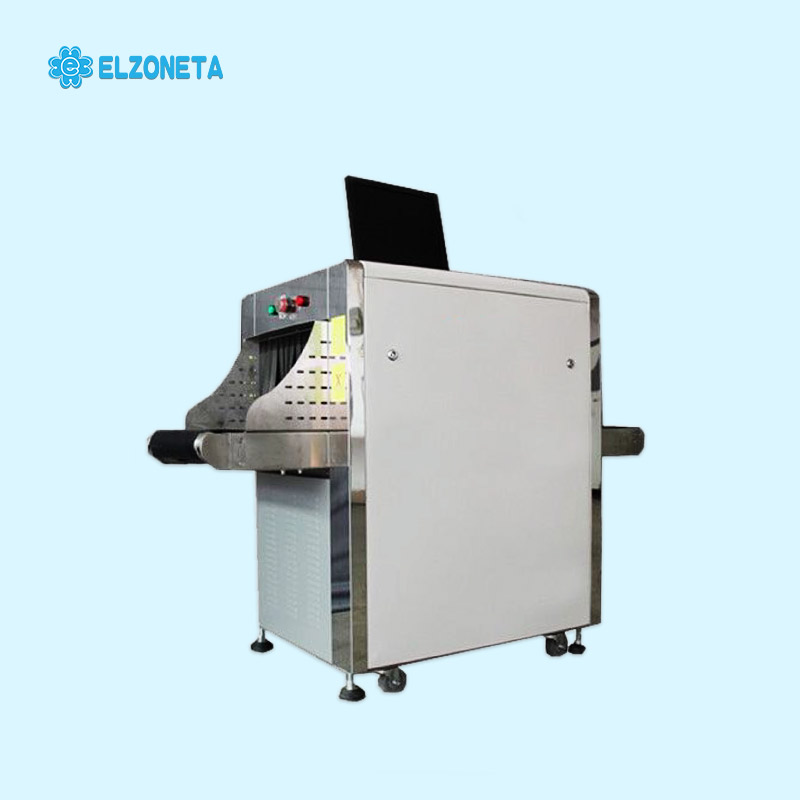

EC-ACS-BS01 X Ray Baggage Scanner Machine
Feature
1.Original Hamamatsu detectors, image quality, Omron electrical components.Enhance the overall quality
2.Global leading parameters: the inspection report issued by the Ministry of Public Security, shows that each
parameter is ahead of other products, more details in the inspection report.
3.Energy-saving design: The machine can sense objects automatically,if there is luggage on the machine will
be operating, if there is no luggage,it'll be quiet. (Optional)
4.A key shutdown control: simply rotate the key when clicking shutdown,safe shutdown automaticly ,reduce
equipment failure.
5.Environmental-friendly Design: lead shade with protective film, prevent lead from hand contact, avoid lead
pollution.
Image Processing System
1.X-ray sensor: L-shaped photodiode array detector (single energy), 12bit depth
2.Monitor: high resolution 19 inch LCD BenQ monitor
3.Color image display: 24-bit true color display
4.Edge Enhancement: the outline of objects will be more clear
5.Super Image Enhancement: the details of the image are more clear
6.High penetration display: improve image contrast in bright areas, so the easy penetrating area will be more clear
7.Low penetration display: improve image contrast in dark areas, so the difficult penetrating area will be more clear
8.Magnifier local: amplification function
9.Brighten / darken: Increase / decrease image brightness
10.Image pull back / front pull: Show the top 20 images, and the current image can be any image processing
11.Image Restoration: Restored to its original state
12.Image Storage: Real-time save any image, any image can be processed arbitrarily ,continuous work to save
Technical Parameters
Tunnel size： 500（W）×300（H）mm
Conveyor speed： Hour detection 600ps / h toy shoes products 0.22m/s
Load： 120 kg
Resolution： ∮0.0787 mm
Conveyor height from the ground： 700mm
Penetration： ≥38-40 mm
Monitor： BenQ 19in LCD monitor
Storage：500G hard drive to save any image in real time, can store more than 100,000 and can make any image processing, and continuous work to save.
Noise： ≤55dB(A)
Operating system： Windows XP
Single check dose： One-time inspection of the X-ray light source irradiation amount ≤ 1.22uGy
Leaking radiation dose rate：Away from any device outer surface of 5cm, the ray irradiation leak rate should be ≤ 0.12uGy / h
Dimensions： （L） 1750mm （W）730mm（H）1200mm
NW / GW： 280 kg / 350 kg
