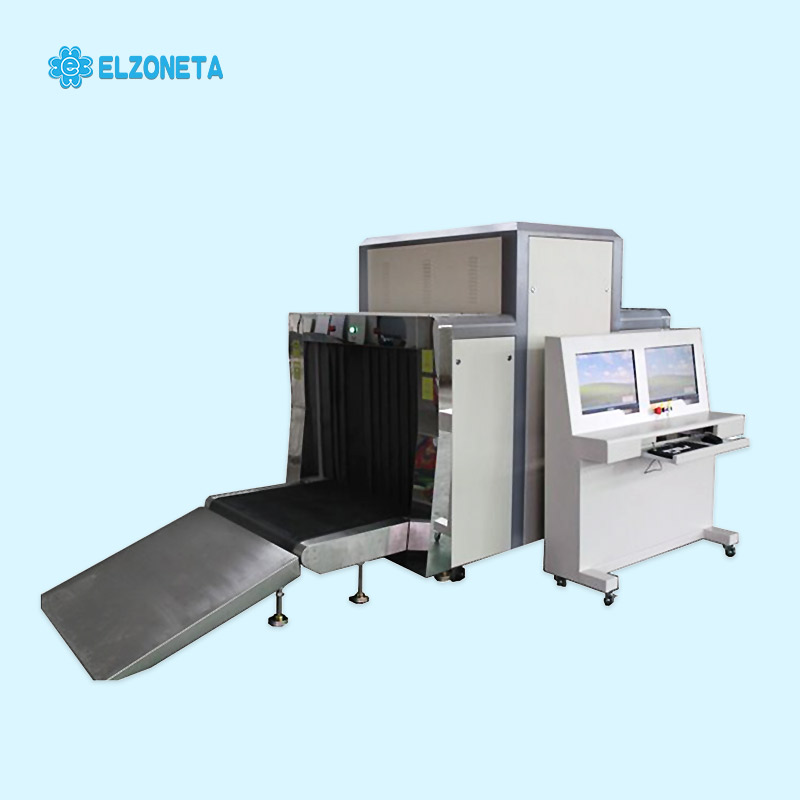

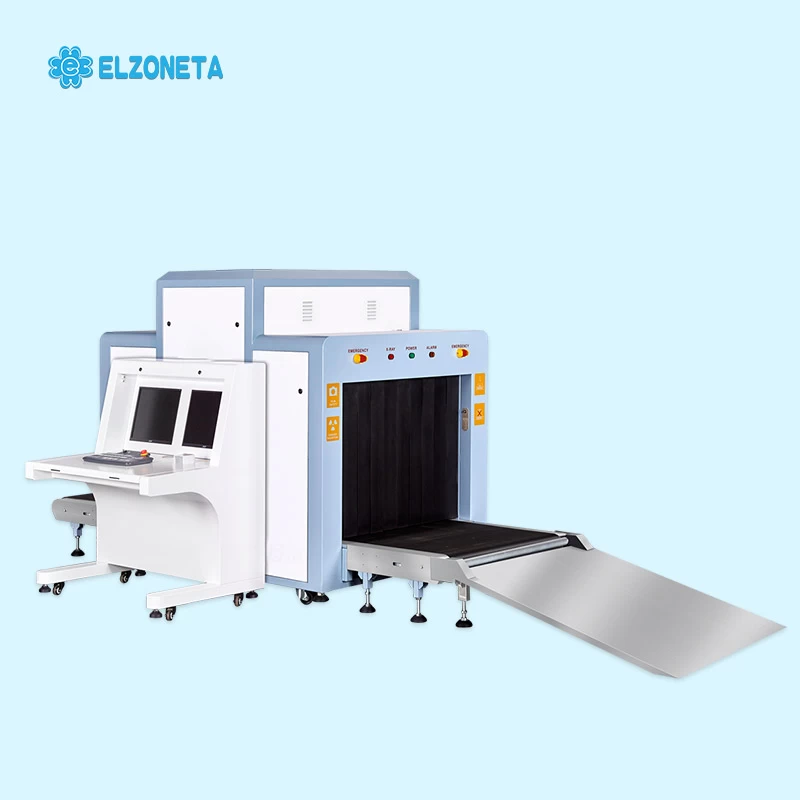

EC-ACS-BS02 X Ray Scanning Machine Baggage
Features
● Original Hamamatsu detectors, image quality, Omron electrical components.Enhance the overall quality
● Global leading parameters: the inspection report issued by the Ministry of Public Security, shows that each
parameter is ahead of other products, more details in the inspection report.
● Energy-saving design: The machine can sense objects automatically,if there is luggage on the machine will
be operating, if there is no luggage,it'll be quiet. (Optional)
● A key shutdown control: simply rotate the key when clicking shutdown,safe shutdown automaticly ,reduce
equipment failure.
● Environmental-friendly Design: lead shade with protective film, prevent lead from hand contact, avoid lead
pollution.
● Dynamic screen switching: when it is stationary screen it can be switched and when it is dynamic it also
can switch freely.
Products Certification
● Strict quality internal control , double-check principles of engineering and production
● Safeguard measures for machine parts
● Through the testing by Ministry of public security and police use electronic product quality testing center
● Through the EU CE certification
● Through the ISO9001 quality management system certification
● Through the ISO14001 environmental management system certification
● Through the GB/T28001 occupation health and safety management system certification
● Through thes provincial Environmental Protection Department of radiation safety certification
● Through the provincial occupation health inspection center detection of radiation
● Through the the people's Republic of China State Bureau of copyright of computer software copyright
registration certificate
● Double soft certification
Specification
X-ray Generator
Ray Beam direction: Top-illuminated
Tube current: 0.4~1.25mA（adjustable）
Anode voltage: 100~160 kV（adjustable）
Angle: 90°
Generator cooling / working periods: Sealed oil bath with forced air / 100％
Image performance system
X-ray sensor: L type photo-diode array detector(Multi-energy), 12-bit
Monitor: high resolution 19 inch LCD monitor
Color quality: 24-bit real-color
Console: full package sealed display, connecting cables can be adjusted according
Edge Enhancement: object contour edge is more distinct
Super Image Enhancement: image detail is more distinct
High-penetrate strength display: increase brightness of dark area in image to display object which is behind high-absorptive mass distinctly
Low-penetrate strength display: increase contrast of low absorptive mass to display it distinctly
Magnifier: function of partial enlargement
Brightening / dimming: increase brightness of image/decrease brightness of image
Image recurrence: display previous twenty images and process any one of them
Image restoration: restore image to initial status at the time of stopping conveyor
Image Storage: real-time store more than 100,000 images and process it in operating status
Film safety: ISO1600 film safety
Multi-energy function
Multi-energy color: orange--organic displays, blue--inorganic displays, green--the mixture
High-energy / low-energy: switching display two energy , high-energy display metals, low-energy displays non-metallic
Drugs explosives Auxiliary: Auxiliary detect drugs ,explosives and other dangerous items
Alarm by sounds and light: alarm by sounds and light when conform to condition
Environment
Operating temperature / humidity: 0℃～45℃／20%～95% (non-condensing)
Storage temperature / humidity: -20℃～60℃／20%～95% (non-condensing)
Voltage: 90V~250V 50/60Hz
Power consumption: 1.0KW（max）
Noise level: < 55dB （A）
