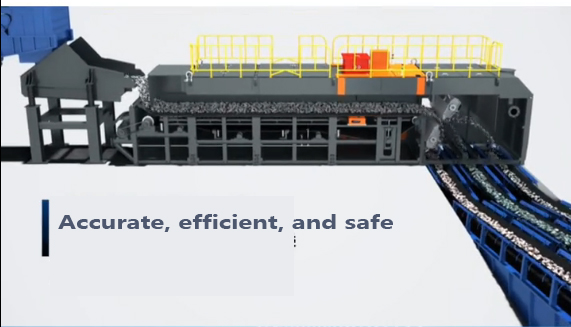

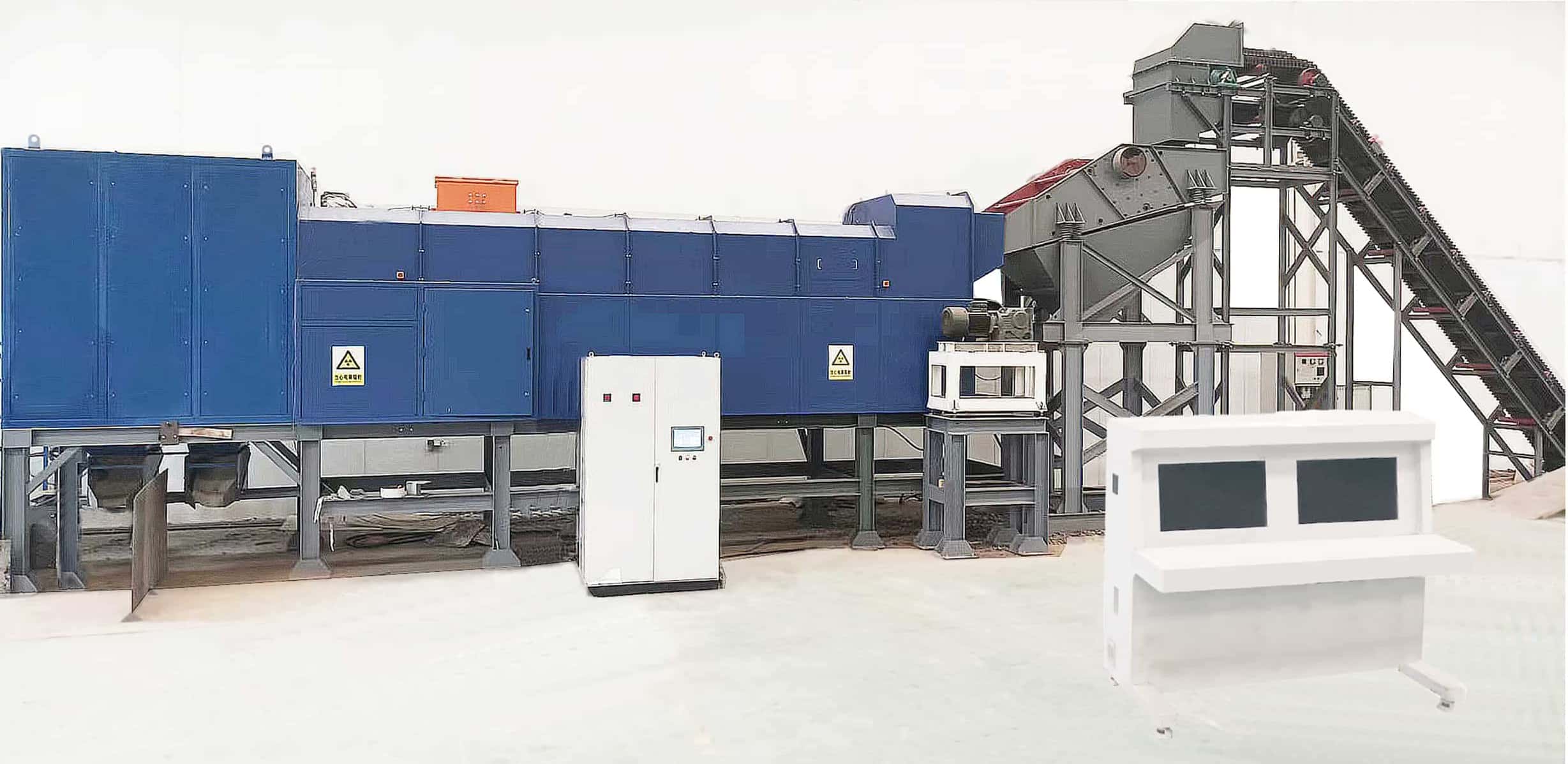

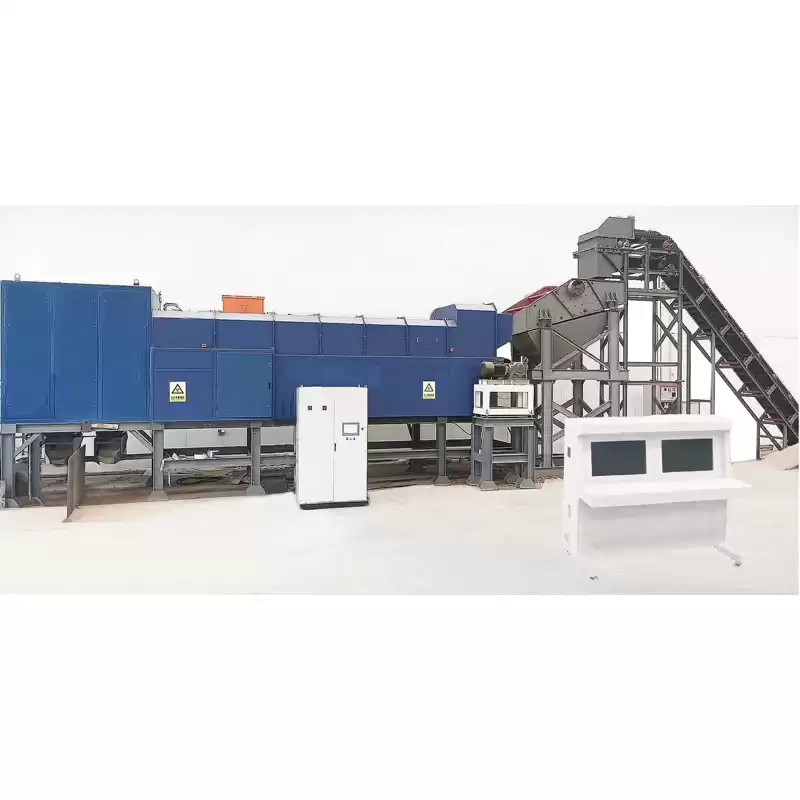

X-ray (XRT) XRT Intelligent garbage sorter Household waste separator Domestic waste sorter
X-ray (XRT) can detect the chemical composition of materials. This means that by sorting with XRT, you can separate mixtures of a wide variety of non-ferrous metals into their constituent parts such as aluminum, zinc, copper, stainless steel and more. Simply change the sorting program on the supplied operator panel and the desired metals are sorted with one machine.
The machine can sort the waste after incineration, collect the useful materials, and then landfill the tailings.
It can also classify construction waste and recycle it.
|
+50~-300mm large particle (calculated with density 1.4g/ cm³)
|
|
Technical Parameters
|
MTX12-300
|
MTX14-300
|
MTX16-300
|
MTX18-300
|
MTX20-300
|
MTX24-300
|
MTX28-300
|
MTX32-300
|
MTX36-300
|
MTX40-300
|
|
Width of track drapery(mm)
|
1200
|
1400
|
1600
|
1800
|
2000
|
2400
|
2800
|
3200
|
3600
|
4000
|
|
DealCapacity
(T/H)
|
110
|
130
|
150
|
170
|
190
|
230
|
260
|
300
|
340
|
380
|
|
Theoretical configuration（Mt/a）
|
1.8-2.3
|
2.3-2.7
|
2.7-3.1
|
3.1-3.6
|
3.6-4.0
|
4.0-4.8
|
4.8-5.5
|
5.5-6.5
|
6.5-7.0
|
7.0-8.0
|
|
The actual capacity should be calculated accoring to mineral density.
|
|
+25~-100mm ,middle particle (calculated with density 1.4g/ cm³)
|
|
Technical Parameters
|
MTX12-100
|
MTX14-100
|
MTX16-100
|
MTX18-100
|
MTX20-100
|
MTX24-100
|
MTX28-100
|
MTX32-100
|
MTX36-100
|
MTX40-100
|
|
Width of track drapery(mm)
|
1200
|
1400
|
1600
|
1800
|
2000
|
2400
|
2800
|
3200
|
3600
|
4000
|
|
DealCapacity
(T/H)
|
66
|
78
|
90
|
102
|
114
|
126
|
155
|
180
|
205
|
230
|
|
Theoretical configuration（Mt/a）
|
0.9-1.0
|
1.1-1.3
|
1.3-1.5
|
1.5-1.7
|
1.7-1.9
|
1.9-2.4
|
2.4-2.8
|
2.8-3.2
|
3.2-3.6
|
3.6-4.0
|
|
The actual capacity should be calculated accoring to mineral density.
|
|
+10~-60mm small particle (calculated with density 2.7g/ cm³)
|
|
Technical Parameters
|
MTX12-30
|
MTX14-30
|
MTX16-30
|
MTX18-30
|
MTX20-30
|
MTX24-30
|
MTX28-30
|
MTX32-30
|
MTX36-30
|
MTX40-30
|
|
Width of track drapery(mm)
|
1200
|
1400
|
1600
|
1800
|
2000
|
2400
|
2800
|
3200
|
3600
|
4000
|
|
处理能力（T/H）
DealCapacity
(T/H)
|
35
|
42
|
49
|
56
|
63
|
77
|
91
|
105
|
119
|
133
|
|
The actual capacity should be calculated accoring to mineral density.
|
