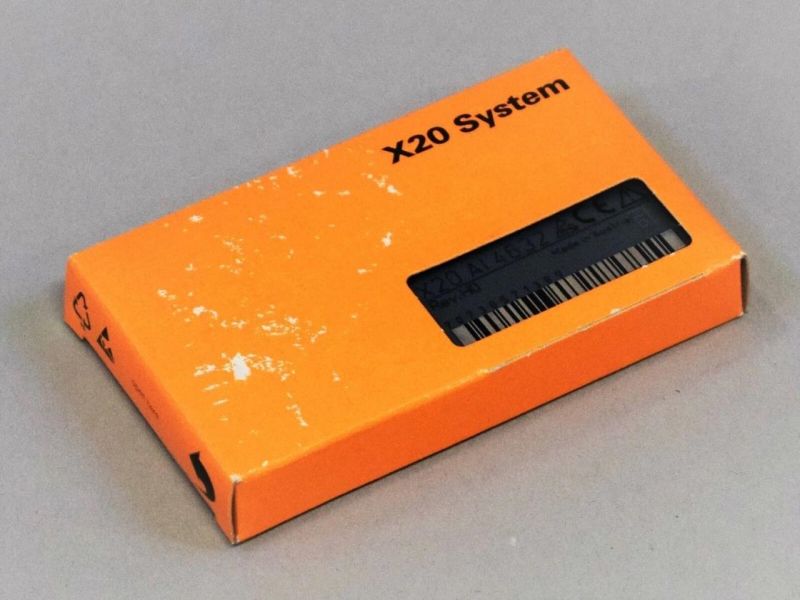

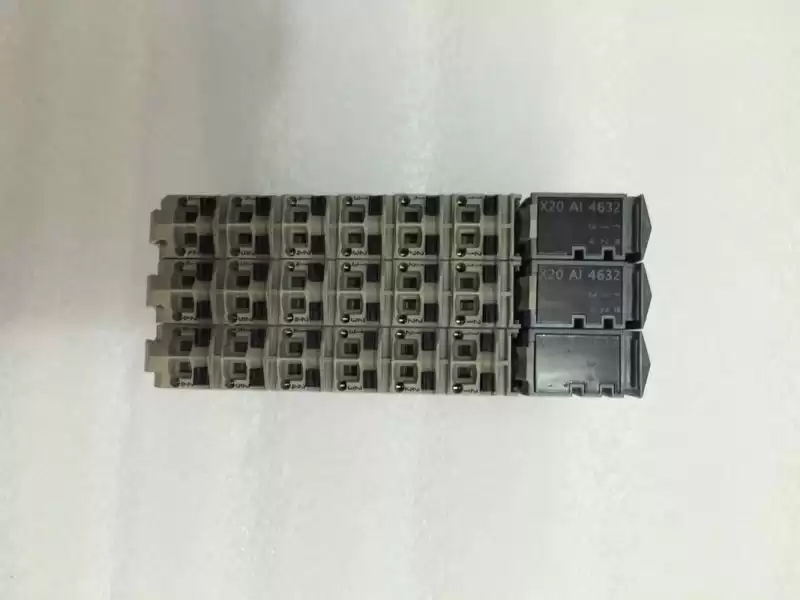

MATERIAL NUMBER:
X20AI4632
DESCRIPTION:
- 4 analog inputs
- Either current or voltage signal possible
- 16-bit digital converter resolution
- Simultaneous input conversion
- Very fast conversion time
The module is equipped with 4 inputs with 16-bit digital converter resolution. It is possible to select between the current and voltage signal using different terminals.
General information
| B&R ID code |
0x1BA1 |
| Status indicators |
I/O function per channel, operating state, module status |
| Diagnostics |
|
| Module run/error |
Yes, using LED status indicator and software |
| Inputs |
Yes, using LED status indicator and software |
| Channel type |
Yes, using software |
| Power consumption |
|
| Bus |
0.01 W |
| Internal I/O |
1.5 W |
| Additional power dissipation caused by actuators (resistive) [W] |
- |
| Certifications |
|
| CE |
Yes |
| UKCA |
Yes |
| ATEX |
Zone 2, II 3G Ex nA nC IIA T5 Gc
IP20, Ta (see X20 user's manual)
FTZÚ 09 ATEX 0083X |
| UL |
cULus E115267
Industrial control equipment |
| HazLoc |
cCSAus 244665
Process control equipment
for hazardous locations
Class I, Division 2, Groups ABCD, T5 |
| DNV |
Temperature: B(0 - 55°C)
Humidity: B(up to 100%)
Vibration: B(4 g)
EMC: B(bridge and open deck) |
| LR |
ENV1 |
| KR |
Yes |
| ABS |
Yes |
| EAC |
Yes |
| KC |
Yes |
Analog inputs
| Input |
±10 V or 0 to 20 mA, via different terminal connections |
| Input type |
Differential input |
| Digital converter resolution |
|
| Voltage |
±15-bit |
| Current |
15-bit |
| Conversion time |
50 μs for all inputs |
| Output format |
INT |
| Output format |
|
| Voltage |
INT 0x8001 - 0x7FFF / 1 LSB = 0x0001 = 305.176 µV |
| Current |
INT 0x0000 - 0x7FFF / 1 LSB = 0x0001 = 610.352 nA |
| Input impedance in signal range |
|
| Voltage |
20 MΩ |
| Current |
- |
| Load |
|
| Voltage |
- |
| Current |
<400 Ω |
| Input protection |
Protection against wiring with supply voltage |
| Permissible input signal |
|
| Voltage |
Max. ±30 V |
| Current |
Max. ±50 mA |
| Output of digital value during overload |
|
| Undershoot |
|
| Voltage |
0x8001 |
| Current |
0x0000 |
| Overshoot |
|
| Voltage |
0x7FFF |
| Current |
0x7FFF |
| Conversion procedure |
SAR |
| Input filter |
Hardware - Third-order low-pass filter / cutoff frequency 10 kHz |
| Max. error |
|
| Voltage |
|
| Gain |
0.08% |
| Offset |
0.01% |
| Current |
|
| Gain |
0.08% |
| Offset |
0.02% |
| Max. gain drift |
|
| Voltage |
0.01%/°C |
| Current |
0.01%/°C |
| Max. offset drift |
|
| Voltage |
0.001%/°C |
| Current |
0.002%/°C |
| Common-mode rejection |
|
| DC |
70 dB |
| 50 Hz |
70 dB |
| Common-mode range |
±12 V |
| Crosstalk between channels |
<-70 dB |
| Nonlinearity |
|
| Voltage |
<0.01% |
| Current |
<0.015% |
| Insulation voltage between channel and bus |
500 Veff |
Electrical properties
| Electrical isolation |
Channel isolated from bus
Channel not isolated from channel |
Operating conditions
| Mounting orientation |
|
| Horizontal |
Yes |
| Vertical |
Yes |
| Installation elevation above sea level |
|
| 0 to 2000 m |
No limitation |
| >2000 m |
Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 |
IP20 |
Ambient conditions
| Temperature |
|
| Operation |
|
| Horizontal mounting orientation |
-25 to 60°C |
| Vertical mounting orientation |
-25 to 50°C |
| Derating |
See section "Derating". |
| Storage |
-40 to 85°C |
| Transport |
-40 to 85°C |
| Relative humidity |
|
| Operation |
5 to 95%, non-condensing |
| Storage |
5 to 95%, non-condensing |
| Transport |
5 to 95%, non-condensing |
Mechanical properties
| Note |
Order 1x terminal block X20TB12 separately.
Order 1x bus module X20BM11 separately. |
| Pitch |
12.5+0.2mm |
