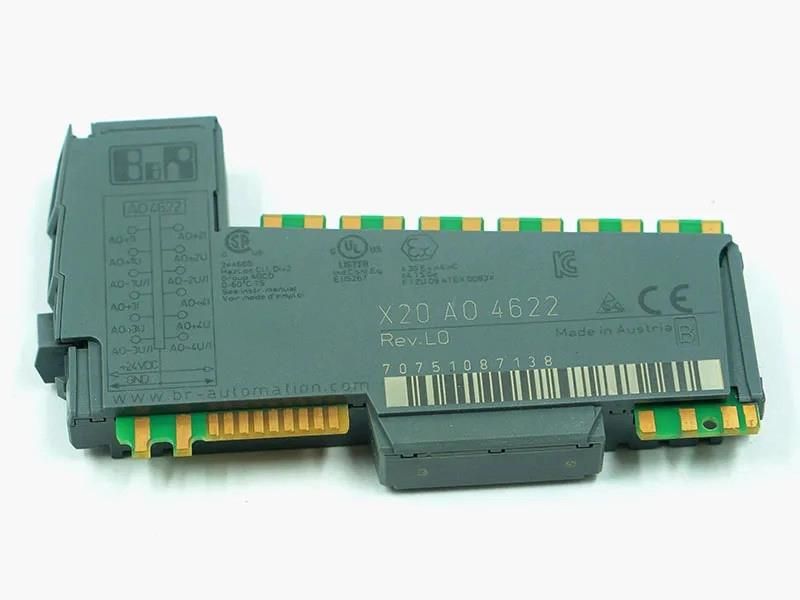

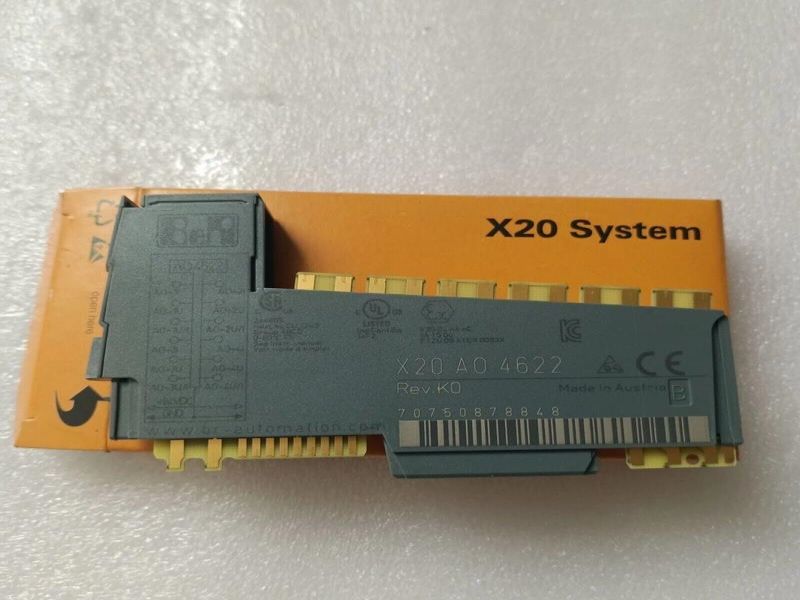

MATERIAL NUMBER:
X20AO4622
DESCRIPTION:
- 4 analog outputs
- Either current or voltage signal possible
- 13-bit digital converter resolution
X20 analog output module, 4 outputs, 10 V or 0 to 20 mA / 4 to 20 mA, 13-bit converter resolution
General information
| B&R ID code |
0x1BA3 |
| Status indicators |
I/O function per channel, operating state, module status |
| Diagnostics |
|
| Module run/error |
Yes, using LED status indicator and software |
| Channel type |
Yes, using software |
| Power consumption |
|
| Bus |
0.01 W |
| Internal I/O |
1.8 W (Rev. ≥ J0), 2.2 W (Rev. < J0) |
| Additional power dissipation caused by actuators (resistive) [W] |
- |
| Certifications |
|
| CE |
Yes |
| UKCA |
Yes |
| ATEX |
Zone 2, II 3G Ex nA nC IIA T5 Gc
IP20, Ta (see X20 user's manual)
FTZÚ 09 ATEX 0083X |
| UL |
cULus E115267
Industrial control equipment |
| HazLoc |
cCSAus 244665
Process control equipment
for hazardous locations
Class I, Division 2, Groups ABCD, T5 |
| DNV |
Temperature: B(0 - 55°C)
Humidity: B(up to 100%)
Vibration: B(4 g)
EMC: B(bridge and open deck) |
| LR |
ENV1 |
| KR |
Yes |
| ABS |
Yes |
| EAC |
Yes |
| KC |
Yes |
Analog outputs
| Output |
±10 V or 0 to 20 mA / 4 to 20 mA, via different terminals |
| Max. output current |
10 mA at voltage >5 V
15 mA at voltage <5 V |
| Digital converter resolution |
|
| Voltage |
±12-bit |
| Current |
12-bit |
| Conversion time |
300 µs for all outputs |
| Settling time on output change over entire range |
500 µs |
| Switch on/off behavior |
Internal enable relay for startup |
| Max. error |
|
| Voltage |
|
| Gain |
0.08% |
| Offset |
0.05% |
| Current |
|
| Gain |
0.09% |
| Offset |
0.05% |
| Output protection |
Short-circuit proof |
| Output format |
|
| Voltage |
INT 0x8001 - 0x7FFF / 1 LSB = 0x0008 = 2.441 mV |
| Current |
INT 0x0000 - 0x7FFF / 1 LSB = 0x0008 = 4.883 µA |
| Load per channel |
|
| Voltage |
Max. ±10 mA, load ≥1 kΩ |
| Current |
Load max. 600 Ω (Rev. ≥ J0), 500 Ω (Rev. < J0) |
| Short-circuit proof |
Current limiting ±40 mA |
| Output filter |
First-order low-pass filter / cutoff frequency 10 kHz |
| Max. gain drift |
|
| Voltage |
0.015%/°C |
| Current |
0.02 %/°C |
| Max. offset drift |
|
| Voltage |
0.032%/°C |
| Current |
0.032%/°C |
| Error caused by load change |
|
| Voltage |
Max. 0.11%, from 10 MΩ → 1 kΩ, resistive |
| Current |
Max. 0.5%, from 1 Ω → 600 Ω, resistive |
| Nonlinearity |
<0.007% |
| Insulation voltage between channel and bus |
500 Veff |
Electrical properties
| Electrical isolation |
Channel isolated from bus
Channel not isolated from channel |
Operating conditions
| Mounting orientation |
|
| Horizontal |
Yes |
| Vertical |
Yes |
| Installation elevation above sea level |
|
| 0 to 2000 m |
No limitation |
| >2000 m |
Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 |
IP20 |
Ambient conditions
| Temperature |
|
| Operation |
|
| Horizontal mounting orientation |
-25 to 60°C (Rev. ≥ J0), 0 to 55°C (Rev. < J0) |
| Vertical mounting orientation |
-25 to 50°C (Rev. ≥ J0), 0 to 50°C (Rev. < J0) |
| Derating |
See section "Derating". |
| Storage |
-40 to 85°C |
| Transport |
-40 to 85°C |
| Relative humidity |
|
| Operation |
5 to 95%, non-condensing |
| Storage |
5 to 95%, non-condensing |
| Transport |
5 to 95%, non-condensing |
Mechanical properties
| Note |
Order 1x terminal block X20TB12 separately.
Order 1x bus module X20BM11 separately. |
| Pitch |
12.5+0.2mm |
