MATERIAL NUMBER:

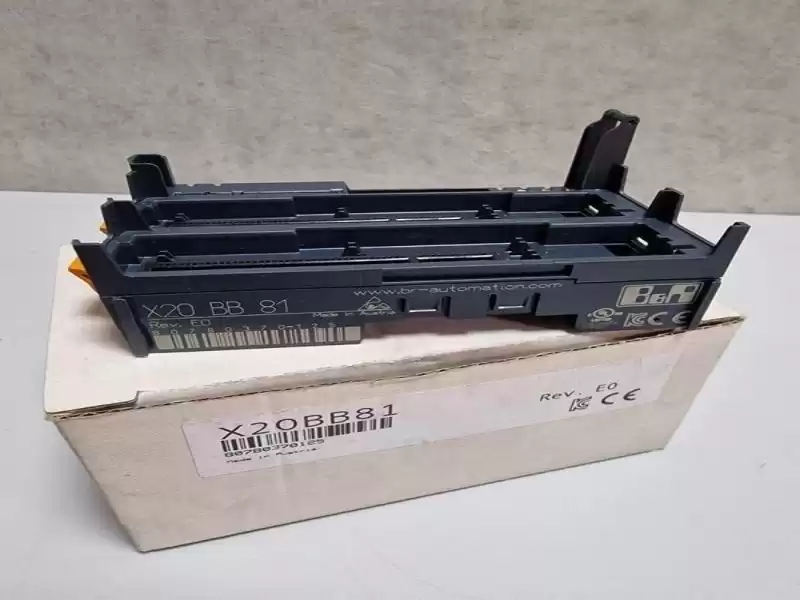

X20BB81
DESCRIPTION:
- Bus base with one expansion slot
The bus module has an expansion slot. The following modules are used on this module:
- Base module (BC, HB, etc.)
- Add-on module (IF, HB, etc.)
- Supply module
The left and right end cover plates are included in delivery.
Short description
| Bus module |
Bus base with one expansion slot |
General information
| Power consumption |
|
| Bus |
0.50 W |
| Internal I/O |
- |
| Additional power dissipation caused by actuators (resistive) [W] |
- |
| Certifications |
|
| CE |
Yes |
| UKCA |
Yes |
| ATEX |
Zone 2, II 3G Ex nA nC IIA T5 Gc
IP20, Ta (see X20 user's manual)
FTZÚ 09 ATEX 0083X |
| UL |
cULus E115267
Industrial control equipment |
| HazLoc |
cCSAus 244665
Process control equipment
for hazardous locations
Class I, Division 2, Groups ABCD, T5 |
| DNV |
Temperature: B(0 - 55°C)
Humidity: B(up to 100%)
Vibration: B(4 g)
EMC: B(bridge and open deck) |
| LR |
ENV1 |
| ABS |
Yes |
| EAC |
Yes |
| KC |
Yes |
I/O power supply
| Nominal voltage |
24 VDC |
| Permissible contact load |
10 A |
Operating conditions
| Mounting orientation |
|
| Horizontal |
Yes |
| Vertical |
Yes |
| Installation elevation above sea level |
|
| 0 to 2000 m |
No limitation |
| >2000 m |
Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 |
IP20 |
Ambient conditions
| Temperature |
|
| Operation |
|
| Horizontal mounting orientation |
-25 to 60°C |
| Vertical mounting orientation |
-25 to 50°C |
| Derating |
- |
| Storage |
-40 to 85°C |
| Transport |
-40 to 85°C |
| Relative humidity |
|
| Operation |
5 to 95%, non-condensing |
| Storage |
5 to 95%, non-condensing |
| Transport |
5 to 95%, non-condensing |
Mechanical properties
| Note |
Left and right X20 end cover plates included in delivery |
| Pitch |
62.5+0.2mm |
