MATERIAL NUMBER:

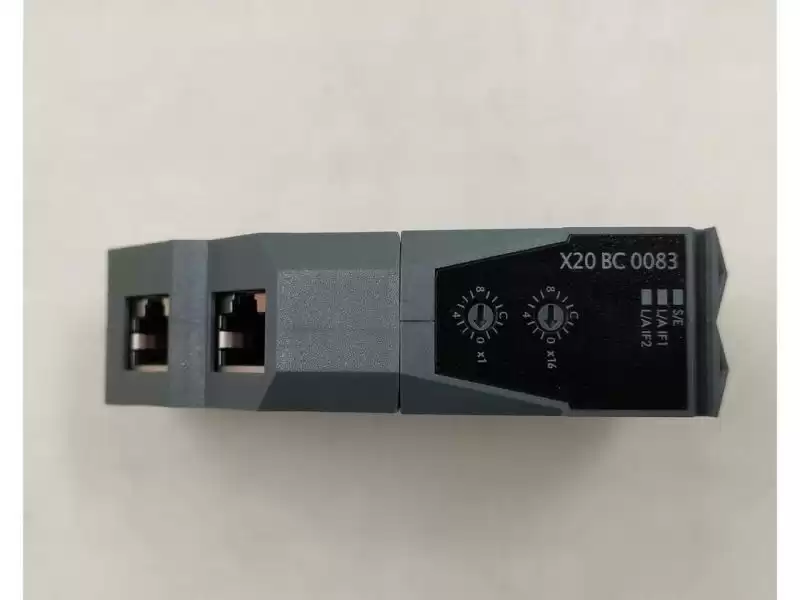

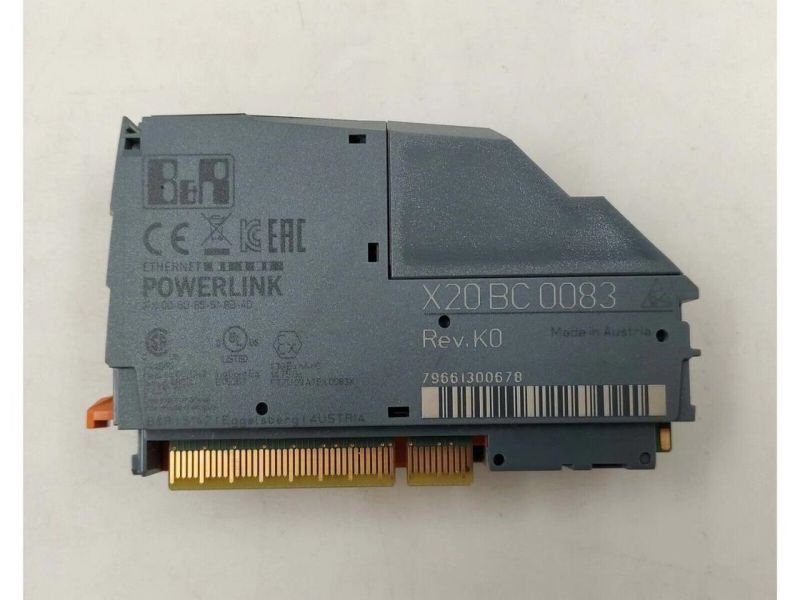

X20BC0083
DESCRIPTION:
- POWERLINK
- I/O configuration and firmware update via the fieldbus
- Integrated hub for economical wiring
The bus controller makes it possible to connect X2X Link I/O nodes to POWERLINK. It is also possible to operate the X2X Link cycle synchronously 1:1 or synchronous to POWERLINK using a prescaler.
POWERLINK is a standard protocol for Fast Ethernet equipped with hard real-time characteristics. The POWERLINK Standardization Group (EPSG) ensures that the standard remains open and is continually developed
General information
| B&R ID code |
0x1F1E |
| Status indicators |
Module status, bus function |
| Diagnostics |
|
| Module status |
Yes, using LED status indicator and software |
| Bus function |
Yes, using LED status indicator and software |
| Power consumption |
|
| Bus |
2 W |
| Additional power dissipation caused by actuators (resistive) [W] |
- |
| Certifications |
|
| CE |
Yes |
| UKCA |
Yes |
| ATEX |
Zone 2, II 3G Ex nA nC IIA T5 Gc
IP20, Ta (see X20 user's manual)
FTZÚ 09 ATEX 0083X |
| UL |
cULus E115267
Industrial control equipment |
| HazLoc |
cCSAus 244665
Process control equipment
for hazardous locations
Class I, Division 2, Groups ABCD, T5 |
| DNV |
Temperature: B(0 - 55°C)
Humidity: B(up to 100%)
Vibration: B(4 g)
EMC: B(bridge and open deck) |
| LR |
ENV1 |
| KR |
Yes |
| ABS |
Yes |
| EAC |
Yes |
| KC |
Yes |
Interfaces
| Fieldbus |
POWERLINK (V1/V2) controlled node |
| Type |
Type 2 |
| Variant |
2x shielded RJ45 (hub) |
| Line length |
Max. 100 m between 2 stations (segment length) |
| Transfer rate |
100 Mbit/s |
| Transfer |
|
| Physical layer |
100BASE-TX |
| Half-duplex |
Yes |
| Full-duplex |
No |
| Autonegotiation |
Yes |
| Auto-MDI/MDIX |
Yes |
| Hub propagation delay |
0.96 to 1 µs |
| Min. cycle time |
|
| Fieldbus |
200 μs |
| X2X Link |
200 μs |
| Synchronization between bus systems possible |
Yes |
Electrical properties
| Electrical isolation |
POWERLINK isolated from bus and I/O |
Operating conditions
| Mounting orientation |
|
| Horizontal |
Yes |
| Vertical |
Yes |
| Installation elevation above sea level |
|
| 0 to 2000 m |
No limitation |
| >2000 m |
Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 |
IP20 |
Ambient conditions
| Temperature |
|
| Operation |
|
| Horizontal mounting orientation |
-25 to 60°C |
| Vertical mounting orientation |
-25 to 50°C |
| Derating |
- |
| Storage |
-40 to 85°C |
| Transport |
-40 to 85°C |
| Relative humidity |
|
| Operation |
5 to 95%, non-condensing |
| Storage |
5 to 95%, non-condensing |
| Transport |
5 to 95%, non-condensing |
Mechanical properties
| Note |
Order 1x terminal block X20TB12 separately.
Order 1x power supply module X20PS9400 or X20PS9402 separately.
Order 1x bus base X20BB80 separately. |
| Pitch |
37.5+0.2mm |
