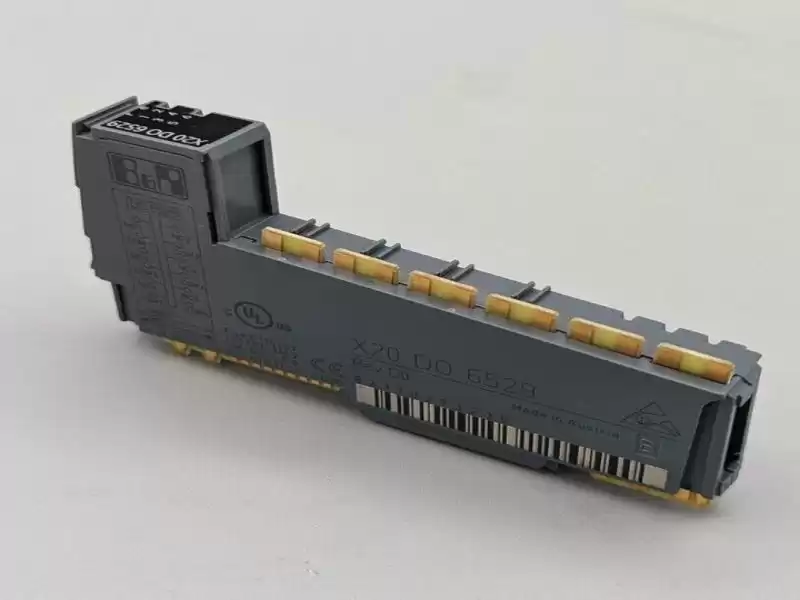

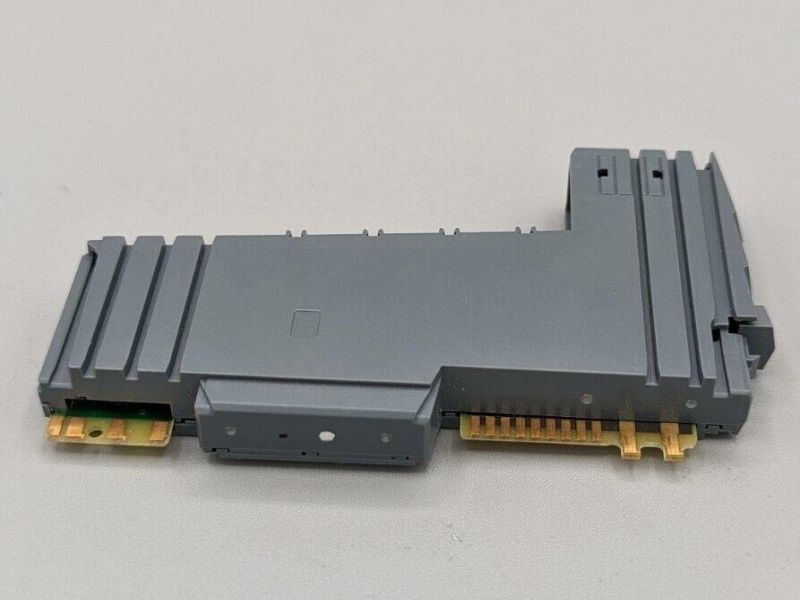

MATERIAL NUMBER:
X20DO6529
DESCRIPTION:
- 6 digital outputs
- Relay module for 115 VAC
- 6 normally open contacts
- Single-channel isolated outputs
The module is equipped with 6 relay outputs.
Short description
| I/O module |
6 digital outputs 30 VDC / 115 VAC, outputs single-channel isolated |
General information
| B&R ID code |
0x2019 |
| Status indicators |
I/O function per channel, operating state, module status |
| Diagnostics |
|
| Module run/error |
Yes, using LED status indicator and software |
| Outputs |
Yes, using LED status indicator |
| Power consumption |
|
| Bus |
1.1 W |
| Internal I/O |
- |
| Additional power dissipation caused by actuators (resistive) [W] |
+0.45 |
| Certifications |
|
| CE |
Yes |
| UKCA |
Yes |
| ATEX |
Zone 2, II 3G Ex nA nC IIA T5 Gc
IP20, Ta (see X20 user's manual)
FTZÚ 09 ATEX 0083X |
| UL |
cULus E115267
Industrial control equipment |
| HazLoc |
cCSAus 244665
Process control equipment
for hazardous locations
Class I, Division 2, Groups ABCD, T5 |
| DNV |
Temperature: B(0 - 55°C)
Humidity: B(up to 100%)
Vibration: B(4 g)
EMC: B(bridge and open deck) |
| LR |
ENV1 |
| KR |
Yes |
| ABS |
Yes |
| EAC |
Yes |
| KC |
Yes |
Digital outputs
| Variant |
Relay / Normally open contact
Channels are single-channel isolated. |
| Nominal voltage |
30 VDC / 115 VAC |
| Max. voltage |
125 VAC |
| Switching voltage |
Max. 110 VDC / 125 VAC |
| Rated frequency |
DC / 45 to 63 Hz |
| Nominal output current |
1 A at 30 VDC / 0.5 A at 115 VAC |
| Total nominal current |
6 A at 30 VDC / 3 A at 115 VAC |
| Actuator power supply |
External |
| Inrush current |
Max. 2 A (per channel) |
| Contact resistance |
75 mΩ at 6 VDC / 1 A |
| Switching delay |
|
| 0 → 1 |
≤4 ms |
| 1 → 0 |
≤4 ms |
| Insulation voltages |
|
| Channel - Bus |
Tested at 1500 VAC |
| Channel - Channel |
Tested at 1000 VAC |
| Service life |
|
| Electrical |
Min. 100 x 10³ ops. |
| Mechanical |
Min. 50 x 106ops. (3 Hz) |
| Switching capacity |
|
| Minimum |
0.01 mA / 10 mV DC |
| Maximum |
30 W / 62.5 VA |
| Protective circuit |
|
| Internal |
None |
| External |
|
| AC |
RC combination or VDR |
| DC |
Inverse diode, RC combination or VDR |
Electrical properties
| Electrical isolation |
Channel isolated from channel, bus and I/O power supply |
Operating conditions
| Mounting orientation |
|
| Horizontal |
Yes |
| Vertical |
Yes |
| Installation elevation above sea level |
|
| 0 to 2000 m |
No limitation |
| >2000 m |
Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 |
IP20 |
Ambient conditions
| Temperature |
|
| Operation |
|
| Horizontal mounting orientation |
-25 to 60°C |
| Vertical mounting orientation |
-25 to 50°C |
| Derating |
See section "Derating". |
| Storage |
-40 to 85°C |
| Transport |
-40 to 85°C |
| Relative humidity |
|
| Operation |
5 to 95%, non-condensing |
| Storage |
5 to 95%, non-condensing |
| Transport |
5 to 95%, non-condensing |
Mechanical properties
| Note |
Order 1x terminal block X20TB12 separately.
Order 1x bus module X20BM11 separately. |
| Pitch |
12.5+0.2mm |
