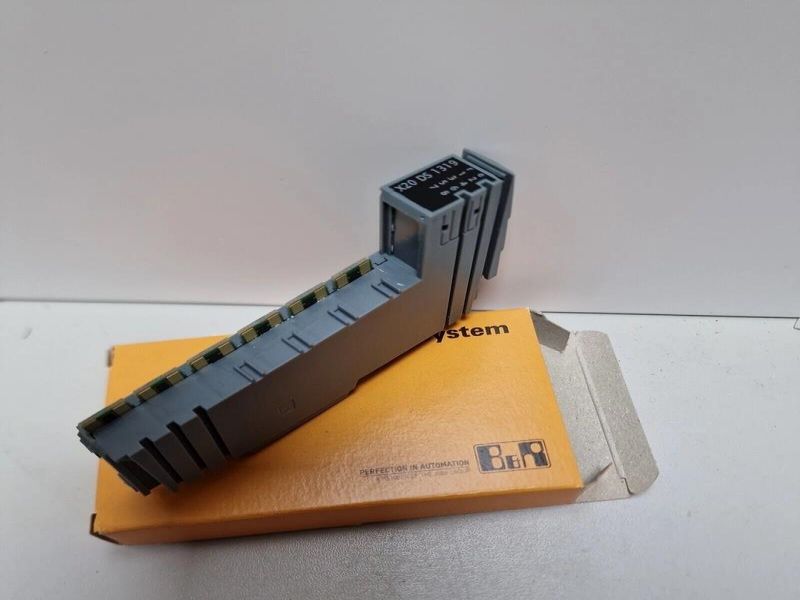

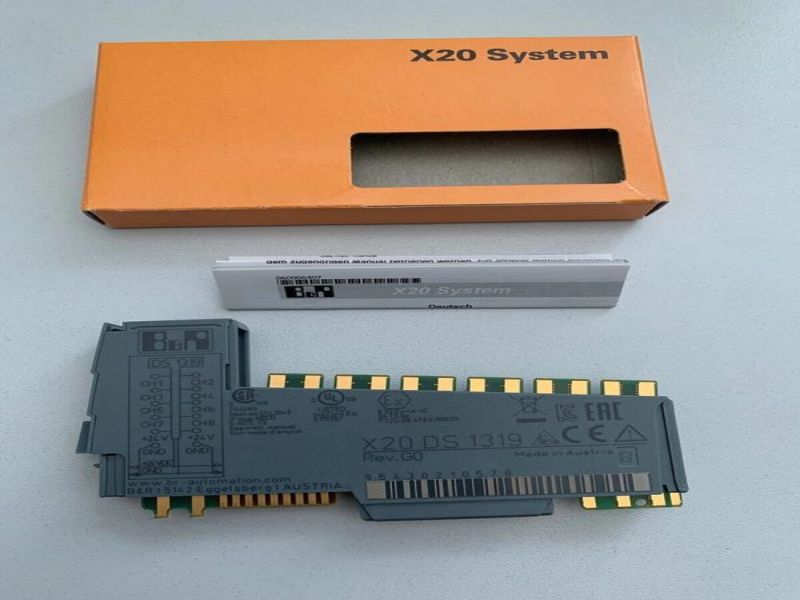

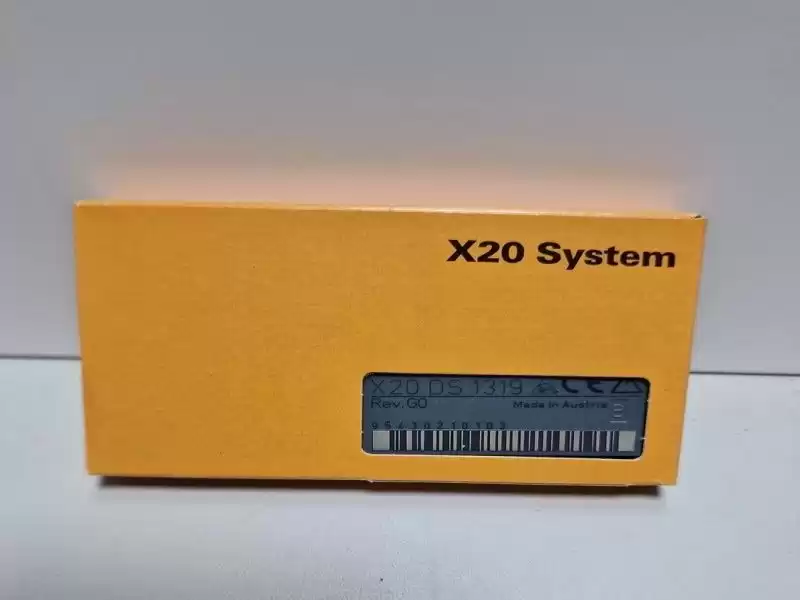

X20DS1319 B&R X20 SYSTEM I/O Module 4 Digital Input Channels

MATERIAL NUMBER:

X20DS1319

DESCRIPTION:

• 4 digital input channels
• 4 digital channels, configurable as inputs or outputs
• 1 universal counter pair (2 event counters, AB counters or up/down counters)
• Linear movement generator (A/B, direction/frequency) with up to 2 reference pulses
• SSI absolute encoder
• NetTime timestamp: Input data, target position, position change, edge change, counter change

This module is a multifunction digital signal processor module. It can be used extremely flexibly for a wide variety of tasks involving digital signal processing or digital signal generation. Two primary example applications include controlling stepper output stages with pulse and direction signals or using as encoder emulation. In this application, for example, frequency inverters or servo axes with the speed follow function can follow a real or virtual master axis.

An additional essential feature is the module's integrated timestamp function. It allows counter ramps curves to be generated virtually independently of bus cycle times during encoder emulation, for example. Only the target counter value and moment when it should be reached are transferred. The module automatically generates the corresponding counter values at the appropriate time, precisely in microsecond resolution and independently of the bus clock.



Short description

I/O module

4 digital input channels, 4 digital channels configurable as inputs or outputs, 1 universal counter pair (2 event counters, AB counter or up/down counter), linear movement generator (A/B, direction/frequency) with up to two reference pulses, SSI absolute encoder, relative or absolute moments of input edges with μs resolution, time-triggered I/O, I/O oversampling

General information

B&R ID code	0x2547
Status indicators	I/O function per channel, operating state, module status
Diagnostics
Module run/error	Yes, using LED status indicator and software
Outputs	Yes, using LED status indicator
Power consumption
Bus	0.01 W
Internal I/O	1.5 W
Additional power dissipation caused by actuators (resistive) [W]	-
Type of signal lines	Shielded lines must be used for all signal lines.
Certifications
CE	Yes
UKCA	Yes
ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
UL	cULus E115267 Industrial control equipment
HazLoc	cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
DNV	Temperature: B(0 - 55°C) Humidity: B(up to 100%) Vibration: B(4 g) EMC: B(bridge and open deck)
LR	ENV1
KR	Yes
ABS	Yes
EAC	Yes
KC	Yes

Linear motion generator

Quantity	1
Encoder outputs	24 V, asymmetrical (A/B, direction/frequency)
Counter size	16/32-bit

Digital inputs

Quantity	4 + 4, configuration as input or output using software
Nominal voltage	24 VDC
Input voltage	24 VDC -15% / +20%
Input current at 24 VDC	Approx. 1.3 mA
Input circuit	Sink
Input filter
Hardware	≤2 µs
Software	-
Input resistance	18.4 kΩ
Additional functions	SSI absolute encoder, universal counter pair, latch function for universal counter pair
Input frequency	100 kHz
Switching threshold
Low	<5 VDC
High	>15 VDC
Overload characteristics of encoder power supply	Short-circuit proof, overload-proof
Insulation voltage between channel and bus	500 Veff

SSI absolute encoder

Quantity	1
Counter size	Up to 32-bit depending on encoder
Max. transfer rate	125 kbit/s
Encoder power supply	Module-internal, max. 600 mA
Nominal voltage	24 V, asymmetrical

Universal counter pair

Quantity	1
Operating modes	2x event counter, up/down counter, AB counter
Encoder inputs	24 V, asymmetrical
Counter size	16/32-bit
Input frequency	Max. 100 kHz
Evaluation
AB counter	4x
Event counters	2x
Up/Down counter	2x
Signal form	Square wave pulse
Encoder power supply	Module-internal, max. 600 mA

Digital outputs

Quantity	Up to 4, configuration as input or output using software
Variant	Push / Pull / Push-Pull
Nominal voltage	24 VDC
Switching voltage	24 VDC -15% / +20%
Nominal output current	0.1 A
Total nominal current	0.4 A
Output circuit	Sink and/or source
Output protection	Thermal shutdown in the event of overcurrent or short circuit, integrated protection for switching inductive loads
Diagnostic status	Output monitoring
Leakage current when the output is switched off	Max. 25 µA
Residual voltage	<0.9 V at 0.1 A nominal current
Peak short-circuit current	<10 A
Switch-on in the event of overload shutdown or short-circuit shutdown	Approx. 10 ms (depends on the module temperature)
Switching delay
0 → 1	<2 µs
1 → 0	<2 µs
Switching frequency
Resistive load	Max. 125 kHz
Inductive load	See section "Switching inductive loads".
Braking voltage when switching off inductive loads	Switching voltage + 0.6 VDC
Additional functions	Clock for SSI absolute encoder, linear movement generator

Electrical properties

Electrical isolation

Channel isolated from bus   Channel not isolated from channel

Operating conditions

Mounting orientation
Horizontal	Yes
Vertical	Yes
Installation elevation above sea level
0 to 2000 m	No limitation
>2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature
Operation
Horizontal mounting orientation	-25 to 60°C
Vertical mounting orientation	-25 to 50°C
Derating	-
Storage	-40 to 85°C
Transport	-40 to 85°C
Relative humidity
Operation	5 to 95%, non-condensing
Storage	5 to 95%, non-condensing
Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB12 separately. Order 1x bus module X20BM11 separately.
Pitch	12.5+0.2mm
