MATERIAL NUMBER:

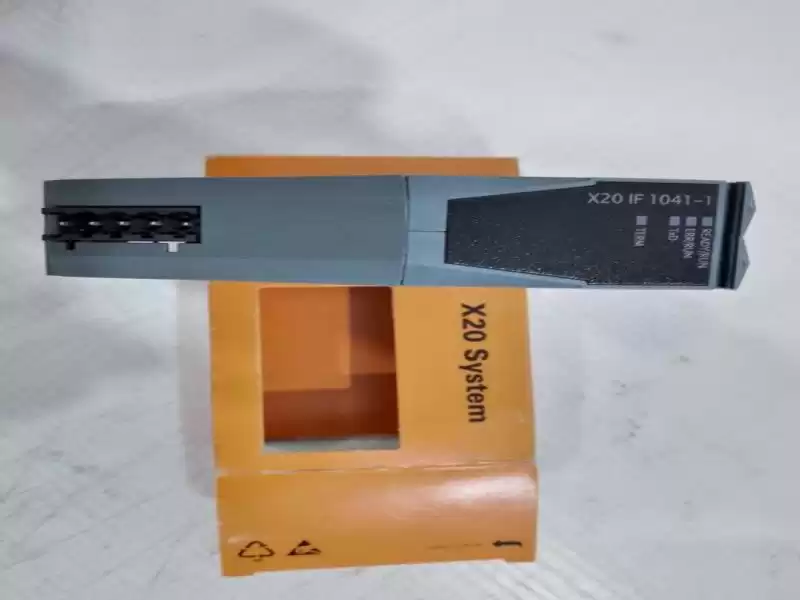

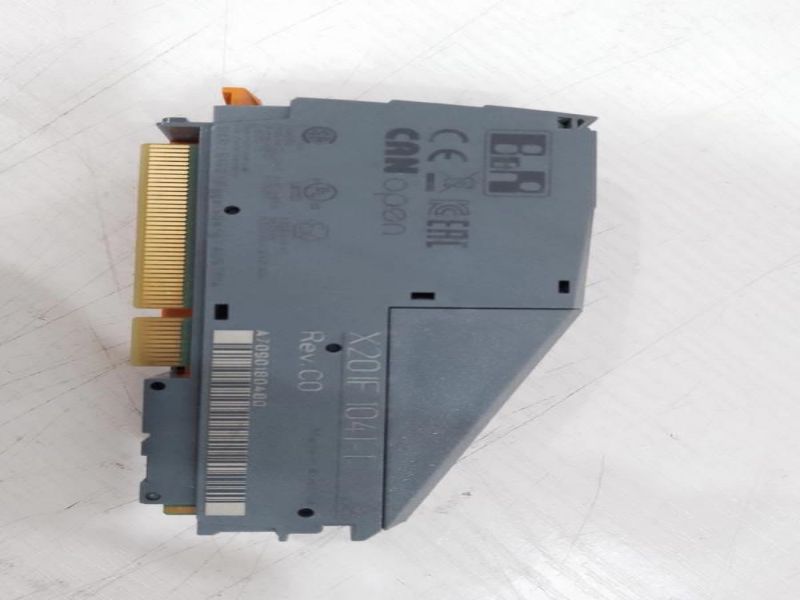

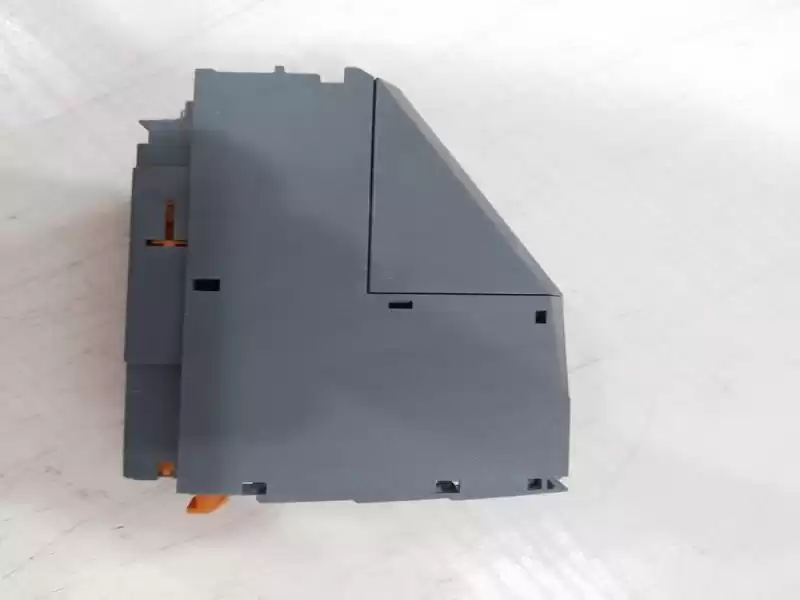

X20IF1041-1
DESCRIPTION:
- CANopen master
- Integrated terminating resistor
The interface module is equipped with a CANopen interface. This allows third-party components to be integrated in the B&R system and makes it possible to quickly and easily transfer data in both directions.
The interface module can be operated in X20 CPUs or in the expandable POWERLINK bus controller X20BC1083.
Short description
| Communication module |
CANopen master |
General information
| B&R ID code |
0xA709 |
| Status indicators |
Module status, network status, data transfer, terminating resistor |
| Diagnostics |
|
| Module status |
Yes, using LED status indicator and software |
| Network status |
Yes, using LED status indicator and software |
| Data transfer |
Yes, using LED status indicator |
| Terminating resistor |
Yes, using LED status indicator |
| Power consumption |
1.1 W |
| Additional power dissipation caused by actuators (resistive) [W] |
- |
| Certifications |
|
| CE |
Yes |
| UKCA |
Yes |
| ATEX |
Zone 2, II 3G Ex nA nC IIA T5 Gc
IP20, Ta (see X20 user's manual)
FTZÚ 09 ATEX 0083X |
| UL |
cULus E115267
Industrial control equipment |
| HazLoc |
cCSAus 244665
Process control equipment
for hazardous locations
Class I, Division 2, Groups ABCD, T5 |
| DNV |
Temperature: B(0 - 55°C)
Humidity: B(up to 100%)
Vibration: B(4 g)
EMC: B(bridge and open deck) |
| LR |
ENV1 |
| KR |
Yes |
| ABS |
Yes |
| EAC |
Yes |
| KC |
Yes |
Interfaces
| Interface IF1 |
|
| Fieldbus |
CANopen master |
| Variant |
5-pin male multipoint connector |
| Max. distance |
1000 m |
| Transfer rate |
Max. 1 Mbit/s |
| Terminating resistor |
Integrated in module |
| Controller |
netX100 |
| Memory |
8 MB SDRAM |
Electrical properties
| Electrical isolation |
PLC isolated from CANopen (IF1) |
Operating conditions
| Mounting orientation |
|
| Horizontal |
Yes |
| Vertical |
Yes |
| Installation elevation above sea level |
|
| 0 to 2000 m |
No limitation |
| >2000 m |
Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 |
IP20 |
Ambient conditions
| Temperature |
|
| Operation |
|
| Horizontal mounting orientation |
-25 to 60°C |
| Vertical mounting orientation |
-25 to 50°C |
| Derating |
- |
| Storage |
-40 to 85°C |
| Transport |
-40 to 85°C |
| Relative humidity |
|
| Operation |
5 to 95%, non-condensing |
| Storage |
5 to 95%, non-condensing |
| Transport |
5 to 95%, non-condensing |
Mechanical properties
| Note |
Order 1x terminal block TB2105 separately. |
| Slot |
In the X20 CPU and expandable bus controller X20BC1083 |
