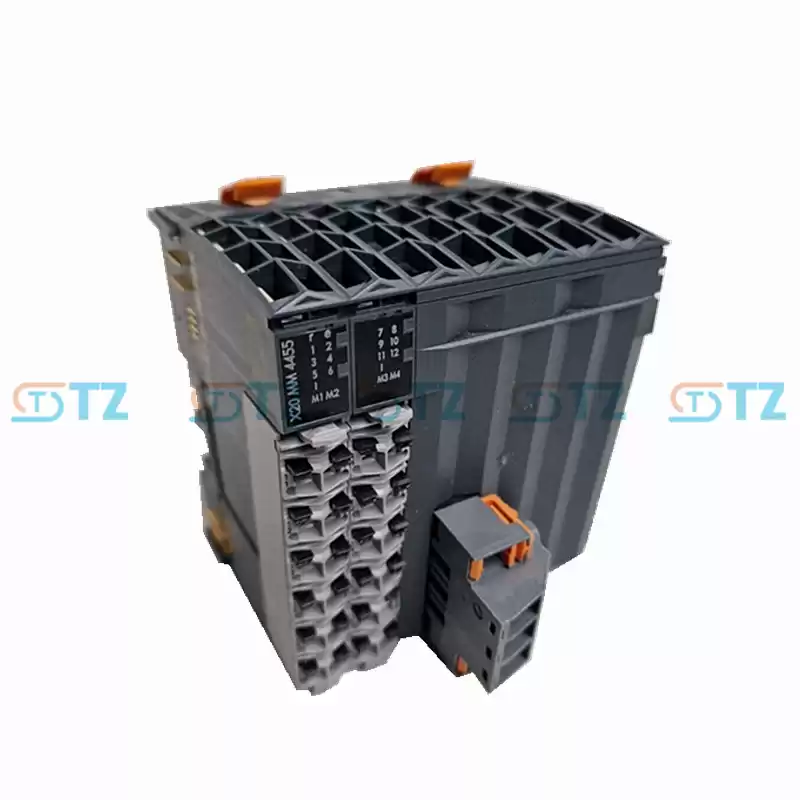

X20MM4455 B&R X20 System PWM Motor Module

X20 PWM motor module, 24 to 48 VDC ±25%, 4 PWM motor bridges, 6 A continuous current, 10 A peak current, 4x 3 digital inputs 5 VDC single-ended, source, configurable as incremental encoder.

HS CODE : 8538909200



4x outputs (H bridge) with PWM control and 24 to 48 VDC ±25% supply

6 A nominal current (10 A max. current)

15 Hz to 50 kHz frequency, 16-bit

PWM resolution, 15-bit + sign, minimum 10 ns

Configurable dither

12 inputs 5 V, configurable for AB and ABR incremental encoders

2x 5 V encoder supply with up to 200 mA

Source connection of digital inputs for encoder's open collector outputs

1-wire connections

The PMW motor bridge module is used to control 4 DC motors with a nominal voltage of 24 to 48 VDC ±25% at a nominal current up to 6 A.

All items are Distributor Ready-stock Genuine Brand-new Supplying, please inform us if the other conditions are needed, Used, Open-box, Refurbished, etc.

Allen Bradley - CompactLogix; ControlLogix, Flex I/O, MicroLogix, etc.

Siemens - Simatic S7-300; S7-400; S7-1200; S7-1500; HMI 6AV etc.

ABB - Advant 800xA S800; S200; S400; S500; S600; S700; S900 etc.

GE Fanuc - 90-30; 90-70; PACSystems RX3i, etc.

Honeywell - Experion® PKS; ControlEdge™ HC900; etc.

Many Available just wait for you, feel free to ask to get better deal!!!
