4x outputs (H bridge) with PWM control and 24 to 48 VDC ±25% supply
6 A nominal current (10 A max current)
15 Hz to 50 kHz frequency, 16-bit
PWM resolution, 15-bit, + sign, minimum 10 ns
Configurable dither
4x 4 inputs 24V, can be configured as ABR
Sink connection
1-wire connections

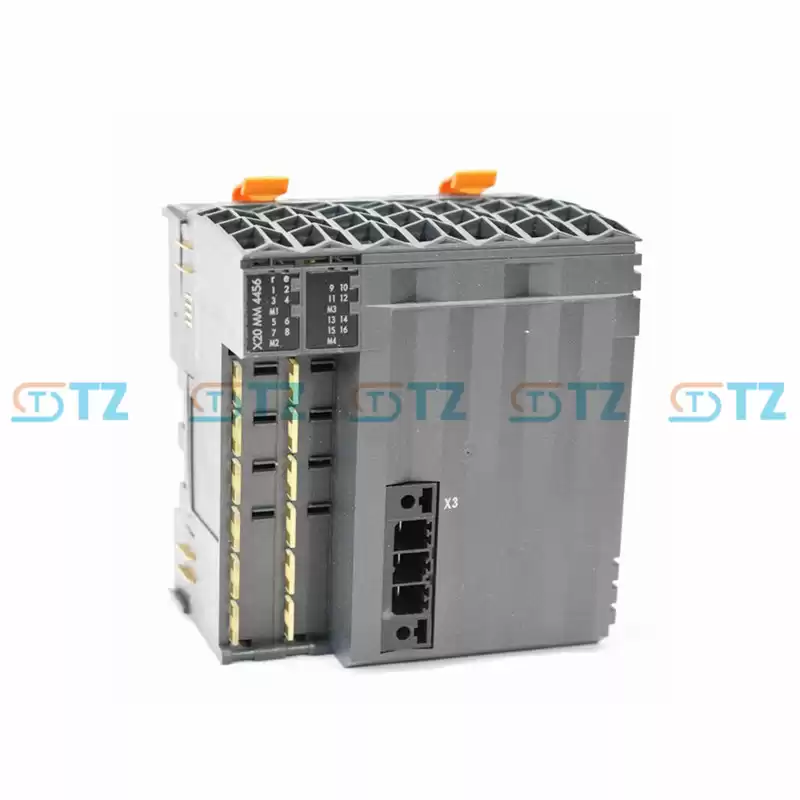

The PMW motor bridge module is used to control 4 DC motors with a nominal voltage of 24 to 48 VDC ±25% at a nominal current up to 6 A.
All items are Distributor Ready-stock Genuine Brand-new Supplying, please inform us if the other conditions are needed, Used, Open-box, Refurbished, etc.
Allen Bradley - CompactLogix; ControlLogix, Flex I/O, MicroLogix, etc.
Siemens - Simatic S7-300; S7-400; S7-1200; S7-1500; HMI 6AV etc.
ABB - Advant 800xA S800; S200; S400; S500; S600; S700; S900 etc.
GE Fanuc - 90-30; 90-70; PACSystems RX3i, etc.
Honeywell - Experion® PKS; ControlEdge™ HC900; etc.
Many Available just wait for you, feel free to ask to get better deal!!!
