MATERIAL NUMBER:

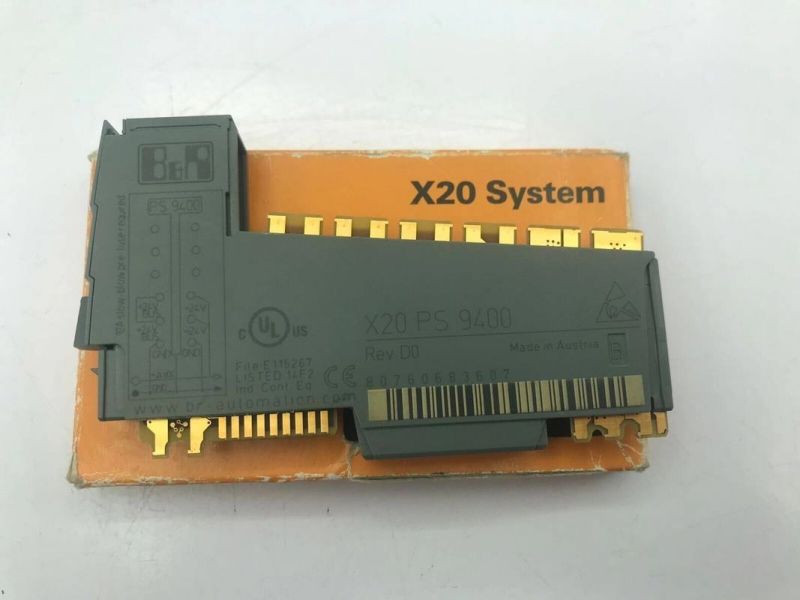

X20PS9400
DESCRIPTION:
- Supply for the bus controller, X2X Link and internal I/O supply
- Feed and bus controller / X2X Link supply electrically isolated
- Redundancy of bus controller / X2X Link supply possible by operating multiple supply modules simultaneously
- Service interface (RS232)
The supply module is used together with an X20 bus controller. It is equipped with a feed for the bus controller, the X2X Link and the internal I/O supply.
Short description
| Power supply module |
24 VDC supply module for bus controller, X2X Link power supply and I/O |
| Interfaces |
1x RS232 service interface |
General information
| B&R ID code |
0x1F8C |
| Status indicators |
Overload, operating status, module status, RS232 |
| Diagnostics |
|
| Module run/error |
Yes, using LED status indicator and software |
| RS232 data transfer |
Yes, using LED status indicator |
| Overload |
Yes, using LED status indicator and software |
| Power consumption for X2X Link power supply |
1.42 W |
| Power consumption |
|
| Internal I/O |
0.6 W |
| Additional power dissipation caused by actuators (resistive) [W] |
- |
| Certifications |
|
| CE |
Yes |
| UKCA |
Yes |
| ATEX |
Zone 2, II 3G Ex nA nC IIA T5 Gc
IP20, Ta (see X20 user's manual)
FTZÚ 09 ATEX 0083X |
| UL |
cULus E115267
Industrial control equipment |
| HazLoc |
cCSAus 244665
Process control equipment
for hazardous locations
Class I, Division 2, Groups ABCD, T5 |
| DNV |
Temperature: B(0 - 55°C)
Humidity: B(up to 100%)
Vibration: B(4 g)
EMC: B(bridge and open deck) |
| LR |
ENV1 |
| KR |
Yes |
| ABS |
Yes |
| EAC |
Yes |
| KC |
Yes |
Bus controller / X2X Link power supply input
| Input voltage |
24 VDC -15% / +20% |
| Input current |
Max. 0.7 A |
| Fuse |
Integrated, cannot be replaced |
| Reverse polarity protection |
Yes |
Bus controller / X2X Link power supply output
| Nominal output power |
7 W |
| Parallel connection |
Yes |
| Redundant operation |
Yes |
| Overload characteristics |
Short-circuit proof, temporary overload |
Input I/O power supply
| Input voltage |
24 VDC -15% / +20% |
| Fuse |
Required line fuse: Max. 10 A, slow-blow |
| Reverse polarity protection |
No |
Output I/O power supply
| Nominal output voltage |
24 VDC |
| Behavior on short circuit |
Required line fuse |
| Permissible contact load |
10 A |
Interfaces
| Service interface |
|
| Signal |
RS232 |
| Variant |
Connection made using 12-pin terminal block X20TB12 |
| Max. transfer rate |
115.2 kbit/s |
Electrical properties
| Electrical isolation |
BC/X2X Link supply isolated from BC/X2X Link power supply
I/O supply not isolated from I/O power supply, and RS232 not isolated from bus
|
Operating conditions
| Mounting orientation |
|
| Horizontal |
Yes |
| Vertical |
Yes |
| Installation elevation above sea level |
|
| 0 to 2000 m |
No limitation |
| >2000 m |
Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 |
IP20 |
Ambient conditions
| Temperature |
|
| Operation |
|
| Horizontal mounting orientation |
-25 to 60°C |
| Vertical mounting orientation |
-25 to 50°C |
| Derating |
See section "Derating". |
| Storage |
-40 to 85°C |
| Transport |
-40 to 85°C |
| Relative humidity |
|
| Operation |
5 to 95%, non-condensing |
| Storage |
5 to 95%, non-condensing |
| Transport |
5 to 95%, non-condensing |
Mechanical properties
| Note |
Order 1x terminal block X20TB12 separately.
Order 1x bus base X20BB8x separately. |
| Pitch |
12.5+0.2mm |
