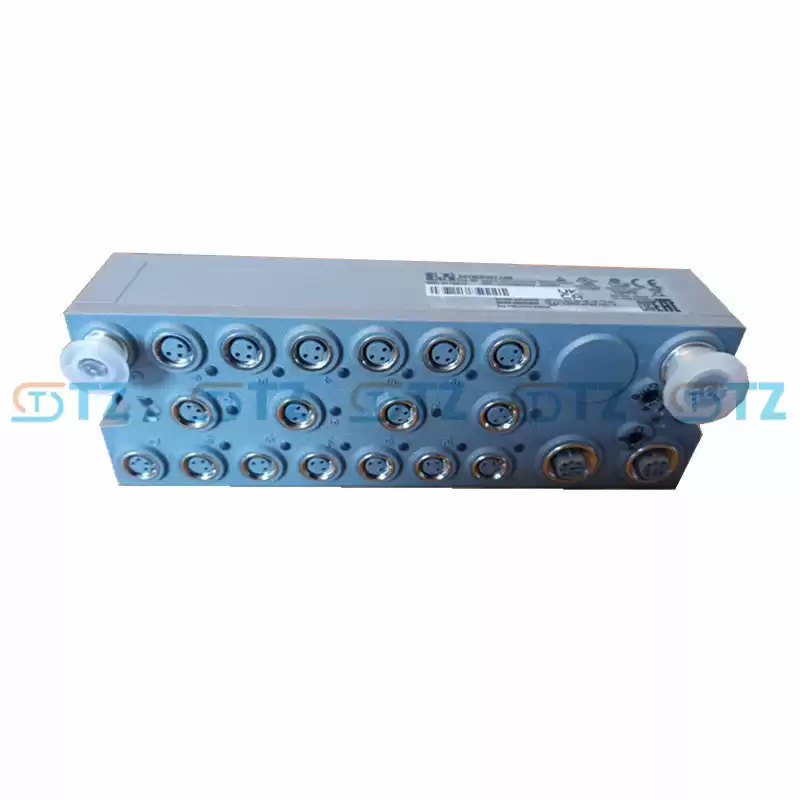

X67BC6321.L08 B&R X67 System Bus Controller

X67 bus controller, 1 PROFIBUS DP interface, X2X Link power supply 15 W, 16 digital channels configurable as inputs or outputs, 24 VDC, 0.5 A, configurable input filter, 2 event counters 50 kHz, M8 connectors, high-density module.

HS CODE : 8538909200



Fieldbus: PROFIBUS DP

Integrated Y-connector for fieldbus connection

16 digital channels, configurable as inputs or outputs

M8 connection type

Simple I/O configuration via the fieldbus

Integrated connection to local expansions via X2X Link for 63 additional modules

Configurable I/O cycle (0.2 to 1 ms)

PROFIBUS DP is based on the physics of the RS485 interface. Data transfer is controlled using a hybrid bus access procedure: Active stations receive communication rights via a token passing procedure and can then access all stations on the network according to the master-slave principle. The maximum time of circulation for a token can be configured, which results in a defined cycle time.

Access represents various services for the user for both cyclic and for acyclic data transfer.

This bus controller makes it possible to connect X2X Link I/O nodes to PROFIBUS DP. It supports PROFIBUS DP with all of its options and other additional properties. In addition to the device, module and channel diagnostics provided in the PROFIBUS standard, it is also possible, for example, to switch to the slot diagnostics option in S7 format.

X67 or other modules based on X2X Link can be connected to the bus controller. The configuration of the modular system is optimally supported by PROFIBUS DP.
