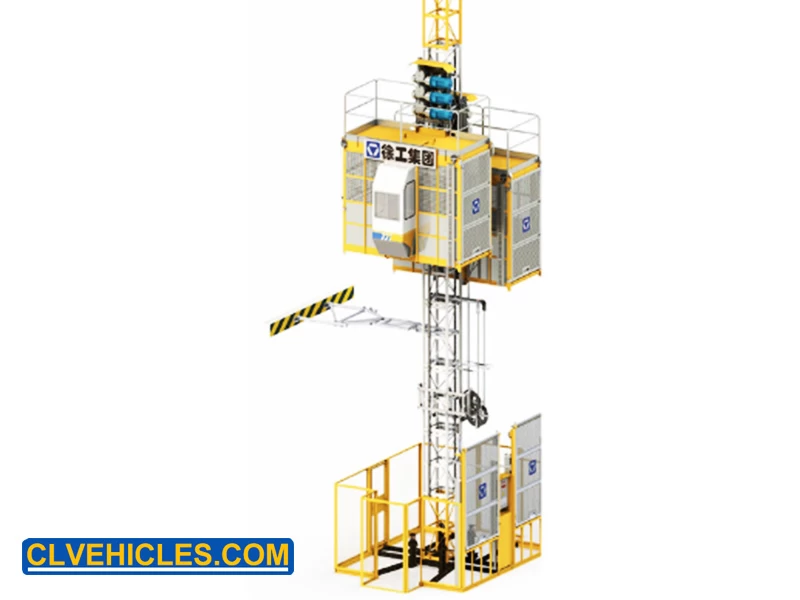

XCMG SC200/200C Material Hoist Lift
SC200/200 construction hoist showed double cage, balanced weight, rated load capacity of every cage for 2000kg gear and rack construction elevator.
The drive mechanism of its adopts two / three mechatronics drive form, which make between pinion and rack with same pressure and more stability and reliable safety than other hoisting mechanism as well as set up safety switch for overload and restricted speed in the circuit.
Every cage have equipped with safety devices to guard against falling and you don't need to set another machinery room or well hole and easy to removal and mounting, transportation flexible, especially it can enhance work efficiency and reduce worker labor intensity.
Quick Details
|
Rated load of single cage
|
2000KG
|
|

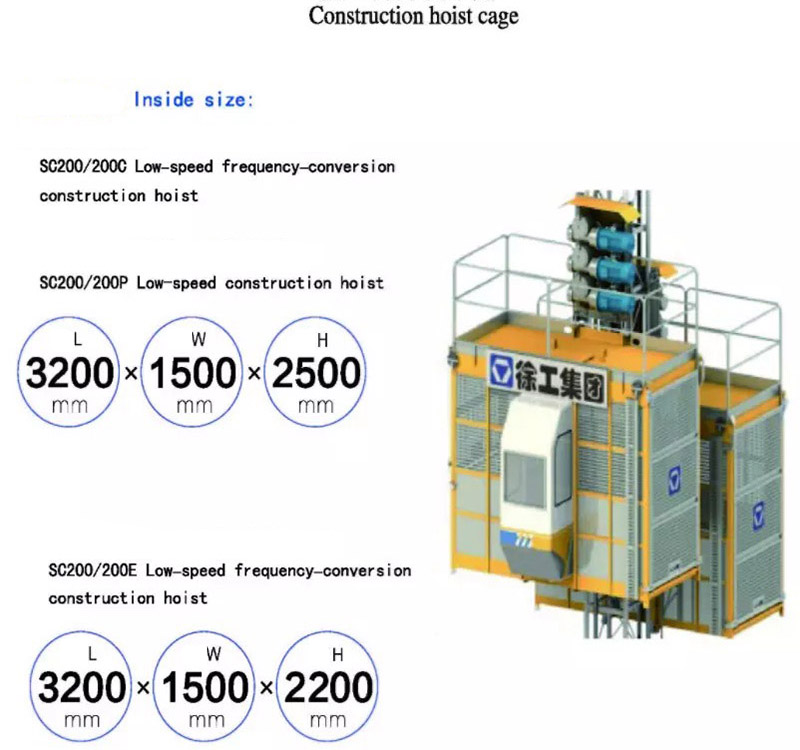

Hanging cage size (length width height)
|
3200× 1500× 2500 (mm)
|
|
Guide rail frame size
|
650× 650× 1508 (mm)
|
|
The transmission mechanism
|
2×2×15KW
|
|
Frequency converter power
|
2 ×45KW
|
|
Operating speed
0-36m/min
|
|
Applications

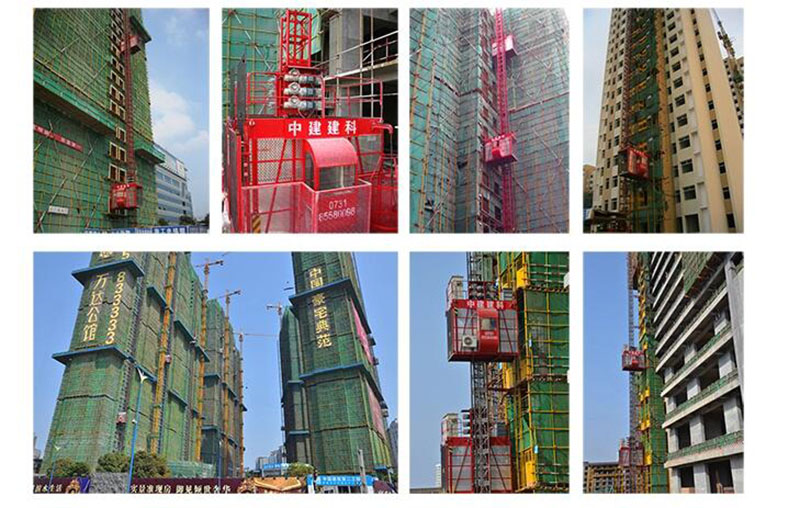

This product absorbs advanced technology at home and abroad, is novel in design, simple in operation and convenient to dismantle and repair. Its safety design and configuration is fully in conformity with national standards. It is mainly suitable for bridge, chimney, building and other high-rise building builders and cargo transportation, and can also be used in warehouses, wharf and other places where vertical transportation needs to be used.
Competitive Advantages
1.Rack and pinion transmission;
2.Dual motor drive;
3.Low speed, power/frequency conversion dual control system;
4. Electrical control system :
PLC control;
Power/frequency conversion dual control system, in the case of frequency conversion failure, a key switch to power frequency, to ensure normal operation, do not affect customer use;
5.Steel structure:
Guide rail frame, attached wall and mainstream manufacturers in the industry can be interchangeable butt, universal;
The hanging cage coaming is made of t3 perforated aluminum plate, which is firm and reliable.
Q345B steel is used for the main structural parts under stress, with high bearing capacity, safe and reliable;
