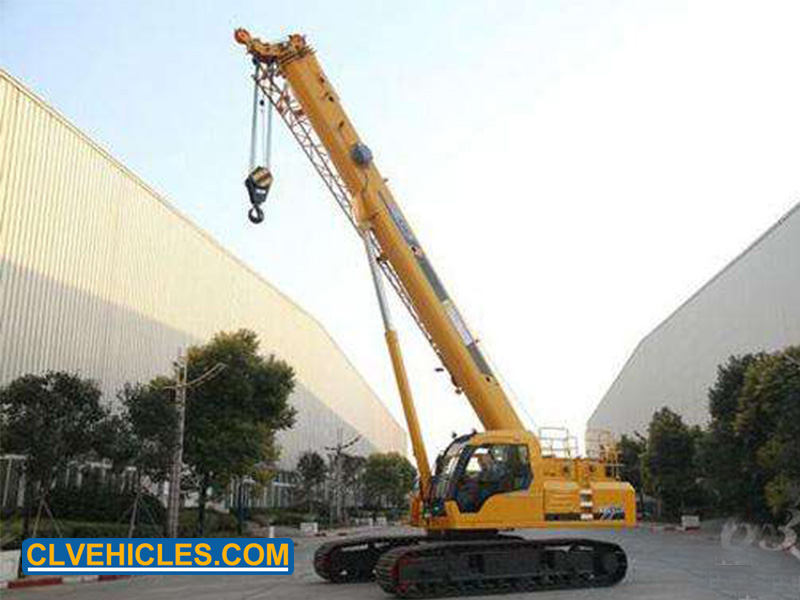

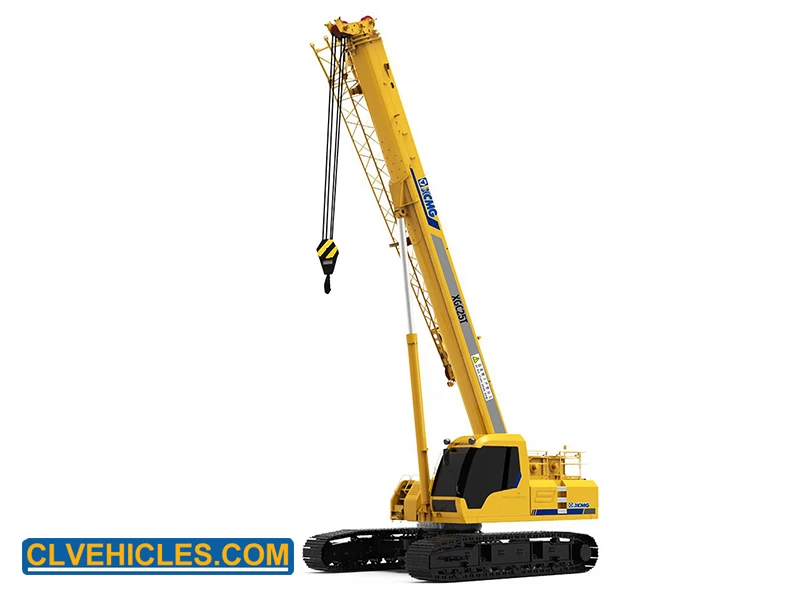

XCMG mini telescope boom crawler crane XGC25T 25ton price
The max rated load of XGC25T telescopic crawler crane is 25t, 4-section telescopic boom, fully extended boom length is 33m (10.6~33m), jib length is 8.15m,it meets all working radius in boom length range. Extendable crawler track meets the requirements of lifting work with high stability, also meets transport requirements for crane outline dimension.
Quick Details
|
Crane full length
|
12805MM
|
|
Width of track shoe
|
700MM
|
|
Engine model
|
QSB6.7
|
|
Rated power of engine
|
142KW
|
|
Max. lifting load moment --basic boom
|
970KN.M
|
|
Hoisting height --basic boom
|
9.9M
|

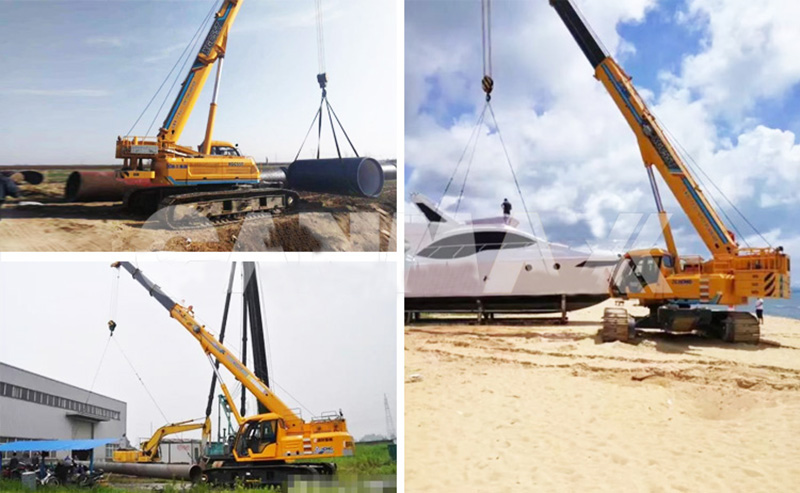

Applications
Competitive Advantages
1.It has multiple functions such as dynamic tamping, piling, lifting and SDDC, which fully reflects the high cost performance of the product.No decoupling
2.ramming efficiency increased 200%.30m/min rammer lifting speed, leading the industry.
3.Large wheel pitch and large track gauge structure, with track gauge stretching function, good stability of the vehicle, the specific pressure is only 0.053mpa, suitable for pile machine and dynamic compaction soft ground;
4.The universal crawler of excavator is adopted to make the walking more stable, the ground adaptability stronger and the maintenance and replacement cost lower.
5.The assembly of the whole machine is efficient and fast, and the whole machine can be completed in 60min
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
|
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
Supply only upper body without chassis. According to your chassis drawing,
design function parts.
Customization
Communicate with engineer,making design drawings and produce customized products.
Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts
on trucks as tank and box.
|
|
