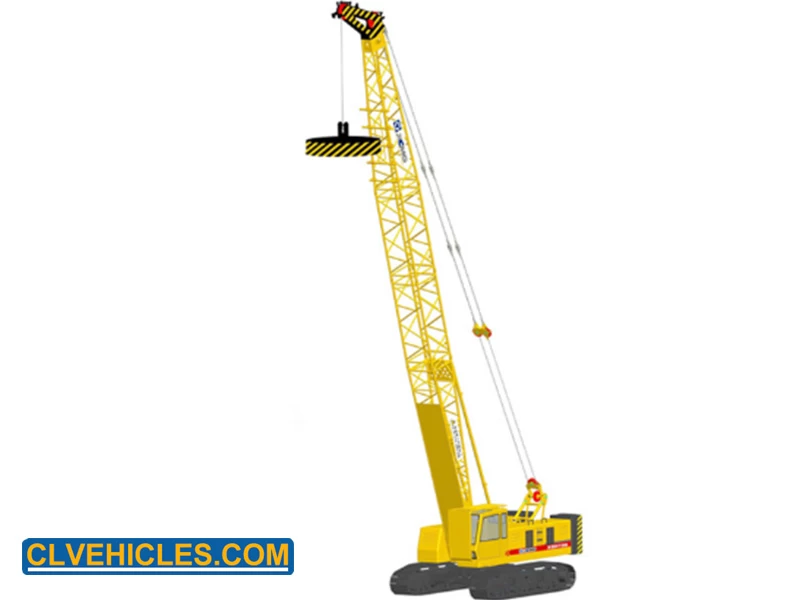

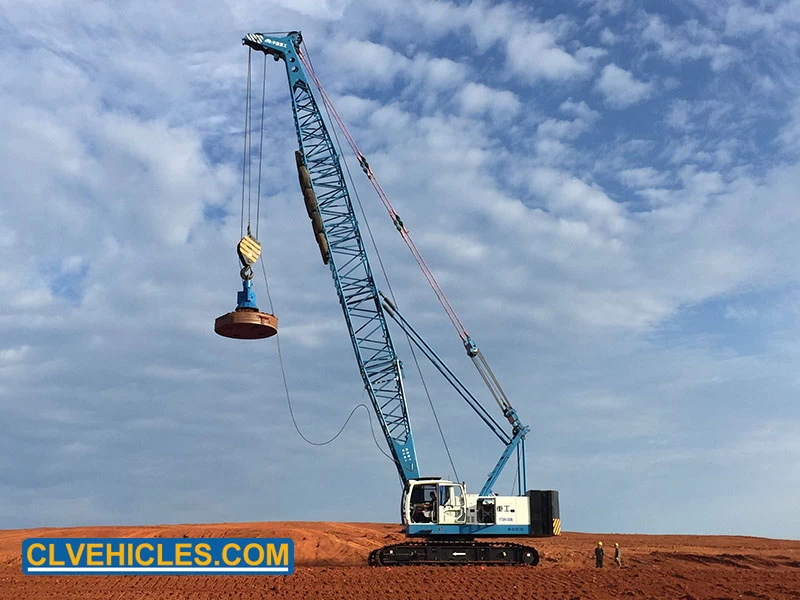

XCMG XGH100 Dynamic Compactor Compaction machine
The dynamic compaction equipment is an upgraded machine based on our crawler crane through exchanging the working unit it can be used as either dynamic compactor or a hydraulic crane the elevator adopts free fall winch winch has hydraulic clutch to make the dynamic compactor more applicable to construction requirements compared with traditional mechanical hydraulic integrated products its realize big tonnage lifting thus the dynamic compaction machine provides wide applications and strong adaptability the whole equipment and dynamic lowering function are patented.
Quick Details
|
Tamping energy level
|
105m
|
|
The biggest fall from
|
15m
|
|
The length of the boom
|
18.5m
|
|
Working Angle
|
73m
|
|
Radius of homework
|
7mm
|
|
Grounding length
|
1400mm
|
Competitive Advantages
1.The first domestic crawler crane to use pilot proportional control technology.
2.The lifting performance is in the advanced level in same domestic industry.
3.The patented logic integrated control valve is used to control brake opening and closing, and brake control pressure is from main oil circuit, which make a more safe and reliable work.
4.The main system uses overall power variable pump control and the main and auxiliary winch can respectively choose double-pump coflow mode to improve working efficiency.
5.The main crane actions use advanced hydraulic proportional control technology. Operator can control the each mechanism moving direction and speed by operating the hydraulic control handles, with infinitely variable speeds and good fine motions.
6.The balance valves are the imported products, with stable, safe and reliable work.
7.The load moment limiter is cooperative developed by Hirschmann and is custom-made for our company, can display working parameters graphically, dynamically and digitally and stop movement toward dangerous direction and give warning. The controller and display communicated with each other through CAN Bus technology, with higher reliability. Combination with traditional electrical system can realize crane automatic control, greatly improved the safety, reliability and efficiency for crane operation.
8.The display can show working parameters such as engine speed, fuel level, engine oil pressure, engine working hours and so on.
