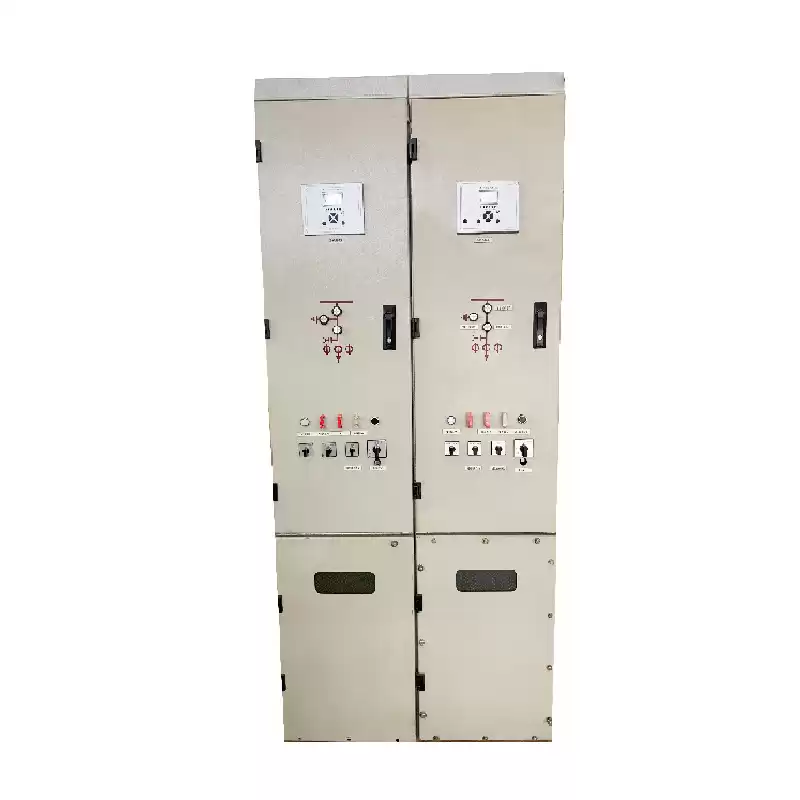

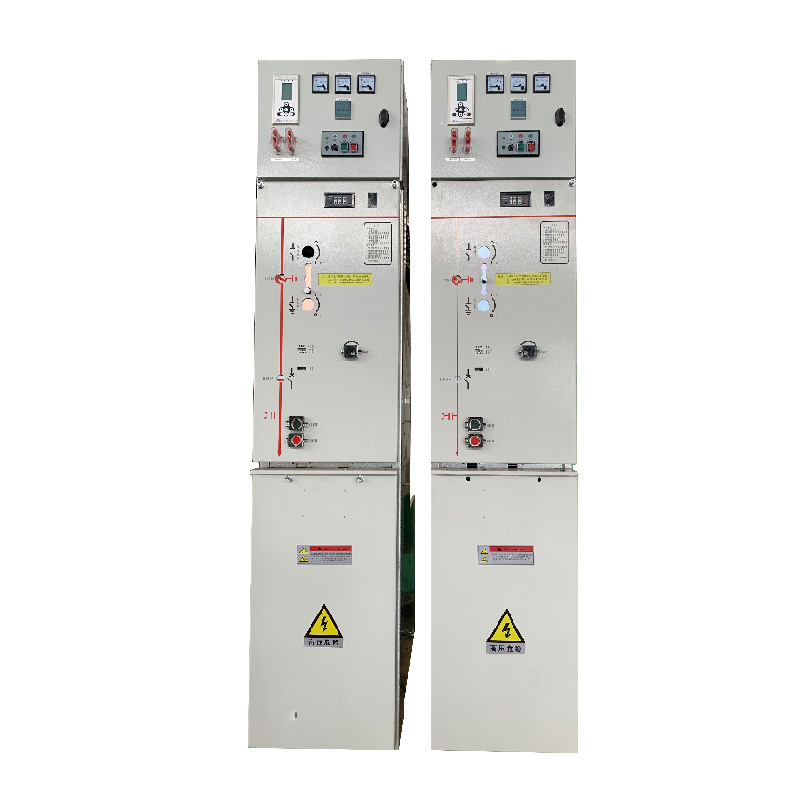

The 12kV inflatable cabinet is maintenance-free and is suitable for places where the operating environment is not ideal such as ports, mountainous areas, and steel plants. At the same time, the inflatable cabinet is small in size, which is especially suitable for more developed areas .
Features:
1. The environmentally friendly gas N2 is used as an insulated conductor, which is safer and more environmentally friendly, with a fully enclosed, maintenance-free structure and low total cost.
2. Modular design, main bus expansion methods are divided into side expansion and top expansion, easy installation and flexible expansion. According to customer needs, any combination.
3. Intelligent design, advanced protection, control and monitoring functions, easy to realize distribution network automation.
4. Small size to meet the needs of miniaturized space.
5. Imported brand German Dikang authorized.
Good Parameter:
1.The air box is completely insulated with environmentally gas N2
2.The air box adopts a completely bare conductor without any compound insulation measures
3.Internal arcing (level AFLR) fault current 31.5kA, duration 1S
4.In the corrosion resistance test (salt spray test), the spray duration reached 168h;
5.Enclosure protection level: enclosure IP4X, compartment IP2XC, air box enclosure (304/3mm stainless steel plate) protection level IP67;
6.Mechanical life test: circuit breaker 20000 times (M2 level), three-station isolation/earth switch each 3000 times (M1 level);
7.Partial discharge test: the partial discharge volume is less than or equal to 10pC when the test voltage is 1.2Ur;
1. Altitude: ≤4000m (the equipment is fully insulated and sealed, applicable to high altitude areas.When the equipment is running at an altitude higher than 1000m, please make special note for pressure adjustment during manufacturing).
2. Surrounding temperature: -25 ~ +40℃ (the highest average daily temperature does not exceed 35℃).
3. Relative humidity: daily average is no more than 95%, and monthly average is no more than 90%.
4. Wind speed: no more than 35m/s.
5. Earthquake intensity: 8 degrees
6. Pollution level: level 2
7. Installation site: Without fire, explosion or violent vibration, well-ventilated and non-corrosive gas.
8. Ground slope: no more than 3°.
Note: If the use environment exceeds the above scope.Please contact us.
