Xiamen 20mm Toray Carbon Rim Road Bike Tubular Rims

- Full Carbon T700

- Brake Track: Basalt, Disc Brake

- 20mm Carbon Road Bike Tubular Rims

- 23mm Wide 20mm Deep Carbon Clincher Rim

- Weight: 250+/-15g

- ERD: 606mm

  • PaymentPaypal, Bank Transfer, West Union
  • FinishUD/ 3K/ 12K/ 3K Twill/ 12K Twill
  • Rim TypeTubular
  • Brake SurfaceBasalt/ Disc Brake/ Twill/ 3K/ Special Design
Facebook Twitter Pinterest LinkedIn 分享

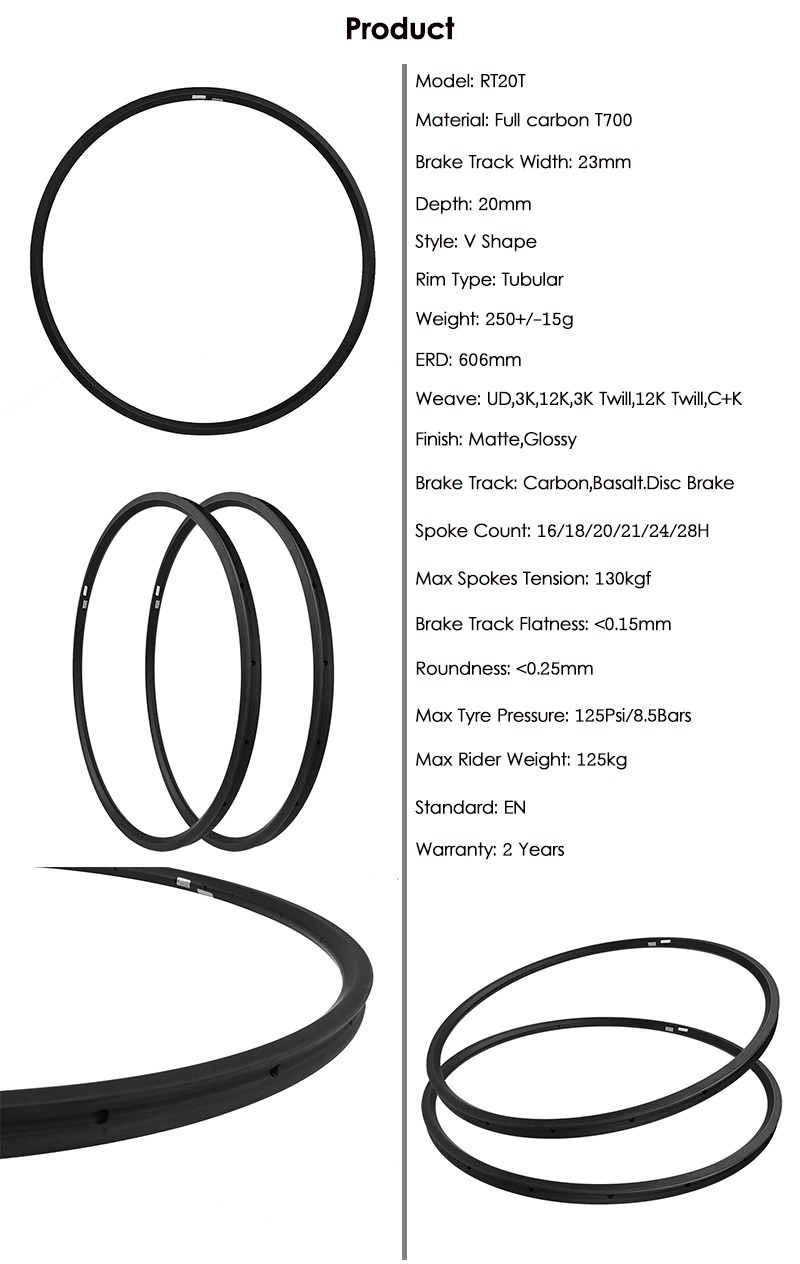

Model: RT20T Size: 700C
Material: Carbon T700+30%T800 Brand Name: Superroad
Brade Track Width: 23mm Drilling: Traditional/Internal
Rim Depth: 20mm Spoke Hole: 16/18/20/21/24/28H
Rim Type: Tubular Brake Track: Carbon,Basalt,3K,12K,Twill
Weight: 250+/-15g Weave: UD/3K/12K,3K+Twill,12K+Twill
ERD: 606mm Finish: Matte/Glossy
Max Spokes Tension: 130kgf Max Tyre Pressure: 125Psi/8.5Bars
Brake Track Flatness: <0.15mm Roundness: <0.25mm
Decal: Customized Max Rider Weight: 125kg
Business: OEM&ODM Standard: EN
Port: Xiamen Warranty: 2 Years

tubular carbon rim


How much spoke tension should I use?

Although the maximum spoke tension of our rims is 150kgf, we do not recommend to lace your
wheelset so intense. Generally, 3 of charging tension are involved in wheel building.
Riding comfortability and performance are supposed to be considered while choosing charging
tension.

A. Tension for "transportation riders" (Comfortability)

80-90kgf are ideal for regular transportation riders or exercise on a regular basis.

B. Tension for "enthusiast riders" (Balance)

100-110kgf are good for people with enjoyful and training purpose.

C. Tension for "professional riders" (Performance)

120-130kgf are charged for riders who are expertized in riding or competition.
