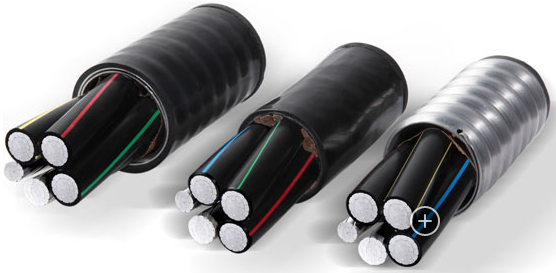

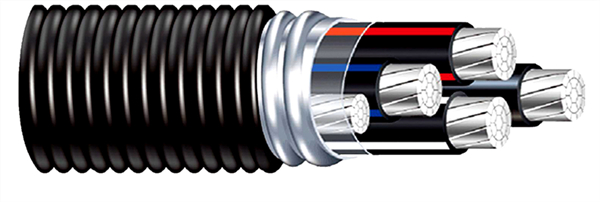

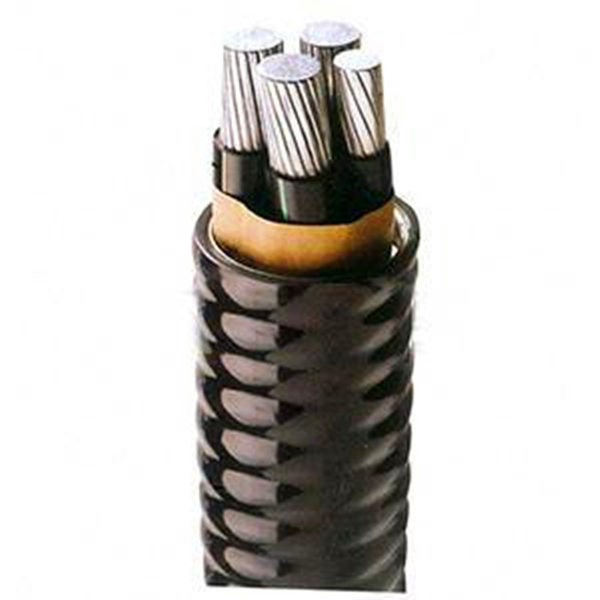

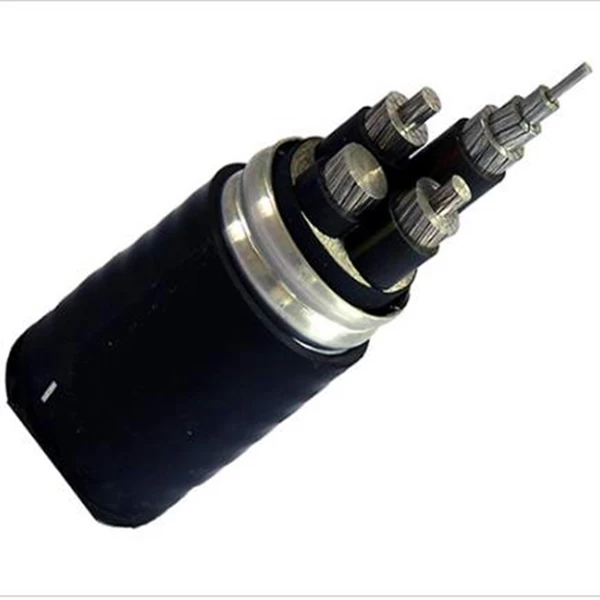

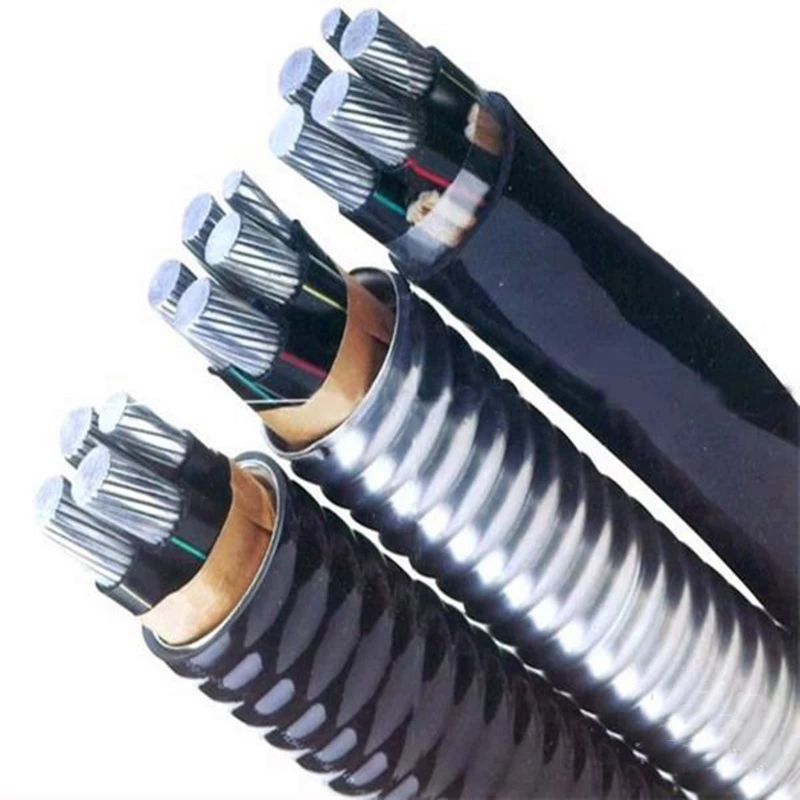

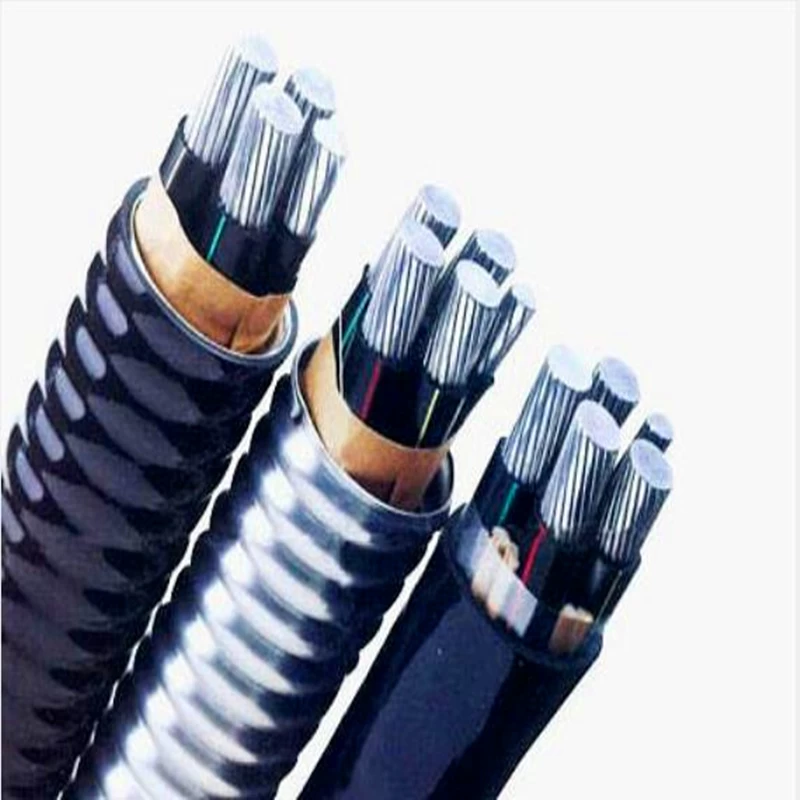

XLPE insulated PVC sheath aluminum alloy power cable

XLPE insulated PVC sheath aluminum alloy power cable

MAIN KEYWORDS

Aluminum alloy power cable, AA8000 aluminum alloy power cables, YJLHV power cable, YJHLV power cable, YJHLV82 aluminum alloy cables, YJHLV (TC90) aluminum alloy cables, ZC-AC90 YJHLV aluminum alloy cable, ACWU90 YJHLV aluminum alloy cables.

PRODUCTS APPLICATION

XLPE insulated PVC sheath aluminum alloy power cable is applicable for aluminum alloy conductor and sectional area from 16 mm² to 400 mm². The type of core conductor is ASTM Grade B compacted, stranded conductor, which comes to GB/T 19666-2019 flame retardant Grade C.

Aluminum alloy cable is in great compliance with GB/T 3956-2008, GB/T 12706-2020 and various standards of the latest editon of IEC 60502.

Aluminum alloy cable can be used widely on condition that there is no armored mechanical protection.They can be used for feeder lines such as in office building, hotels, shopping center and factory lighting,socket and other electrical equipment. Aluminum alloy cable is applicable for using working temperature 90℃, XLPE insulation, and black PVC outer sheath.

PRODUCTS CONFIGURATION

PRODUCTS STRUCTURE

---Conductor Material

   Plain annealed copper wire, solid class 1, or strand class 2.

---Insulation Material (inner insulation)

   XLPE (Cross-linked Polyethylene）

---PVC Insulation Colour

   2C: brown, blue

   3C: brown, blue, yellow/green

   4C: brown, blue, black, yellow/green,

   5C: brown, blue, black, grey, yellow/green

   Remark: we can choose other colors according to the customer request.

---XLPE Insulation Colour

   Natural color with colored PP tape

---Filler Material

    Fiberglass tape, or PVC (Polyvinyl chloride).

---Inner Sheath (Cabling Material)

   Aluminum interlocking armored sheath

---Sheath Material (out insulation)

   PVC (polyvinyl chloride)

---Sheath Colour

   Black

---Core Number

   2～5 cores, 2C～5C.

---Voltage Rate (U₀/U)

   0.6/1kV, 600/1000V (Um: 1.2kV).

---Working Temperature

   -15℃～+90℃.

---Minimum Bending Radius

   Fixed: 12 x Out Diameter.

---Production Standard

   GB/T 12706, GB/T 31840, IEC 60502, ASTM B-800.

---Products Delivery

   Within 10-20 working days as soon as we received the deposit.

PRODUCTS CHARACTERISTICS

---Max. Conductor Working Temperature

  +90℃

---Max. Short-circuit Temperature

  Shall not exceed +250℃ (5 seconds max. duration)

---Installation Temperature

   Ambient temperature under installation shall not be below 0℃.

---Min. Bending Radius

   The bending radius of cable (D-Diameter of cable) : ≥7D

REMARK

---The above information is only for you reference, for the formal technical data, please refer to the actual cables.

---The product can have flame retardant, fire-resistant or Low Smoking Zero Halogen properties.

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Hante Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Hante Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
