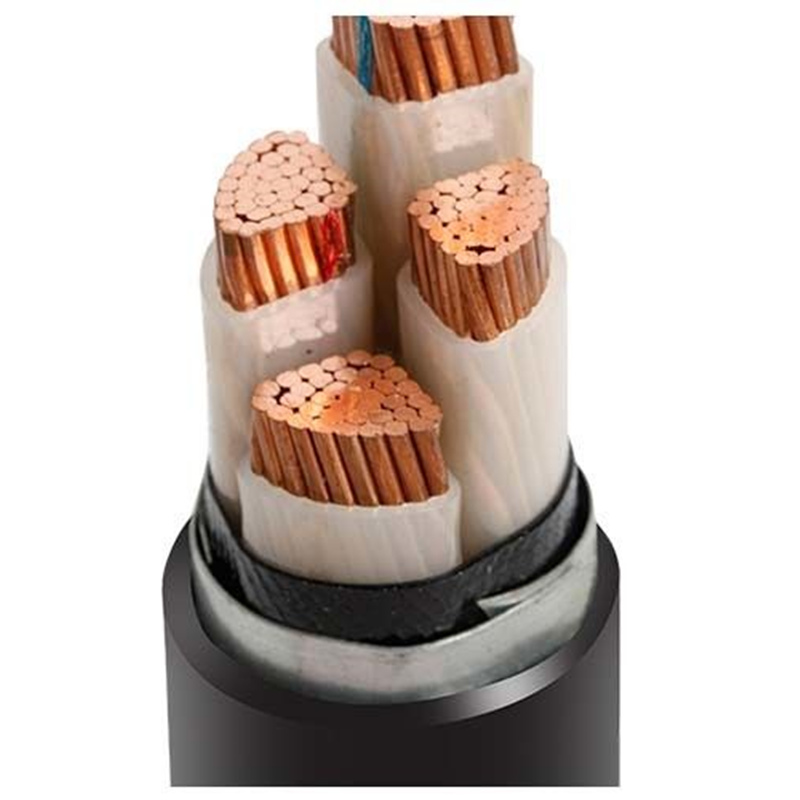

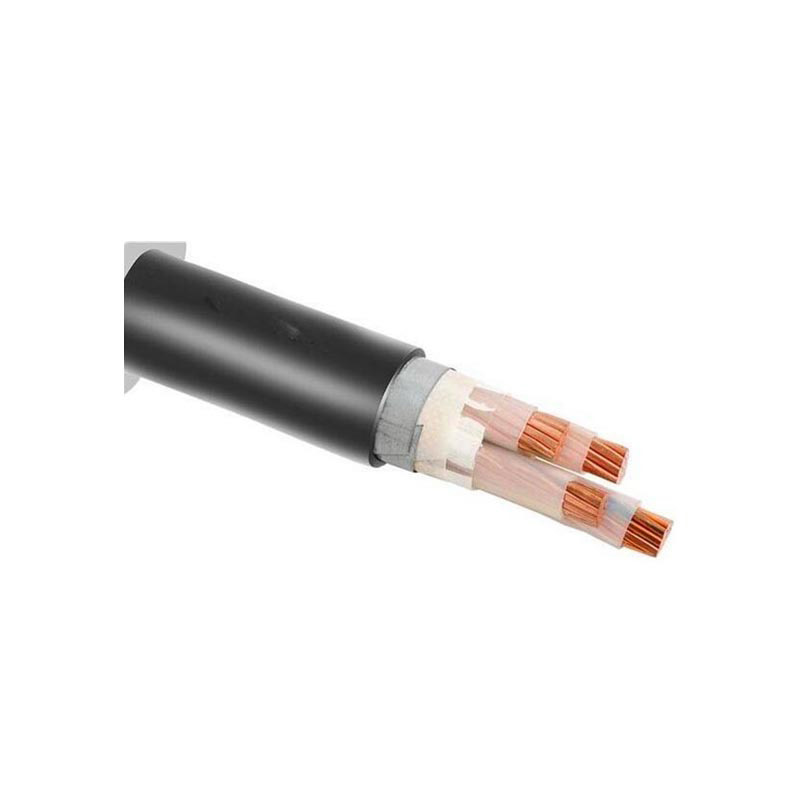

XLPE Insulated STA Armored PVC Sheathed YJV22 Power Cables
XLPE Insulated STA Armored PVC Sheathed YJV22 Power Cables, 0.6/1kV, CU/XLPE/PVC/STA/PVC, copper conductor, XLPE insulation, PVC inner sheath, steel tape armored, PVC out sheath, meet to GB/T 12706, IEC 60502, BS 7870.
XLPE Insulated Steel Tape Armoured PVC Sheathed YJV22 Power Cables
MAIN KEYWORDS
YJV22 power cable, BS 7870 steel tape armored cable, U-1000 RVFV power cable, STA armoured power cable, CU/XLPE/STA/PVC, CU/XLPE/PVC/STA/PVC power cable.
APPLICATION CHARACTERISTICS
XLPE Insulated Steel Tape Armored PVC Sheathed YJV22 Power Cables, copper conductor, XLPE insulation, PVC inner sheath, steel tape armoured, PVC out sheath, U0/U: 0.6/1kV. It applies to electrical power transmission and distribution lines with AC rated voltage U0/U up to and including 0.6/1kV. For outdoor installation in damp and wet locations, laid directly in the ground where excessive mechanical stresses are present in sloping and moving terrains and in vertical or inclined laying, as well as in locations susceptible to sliding.

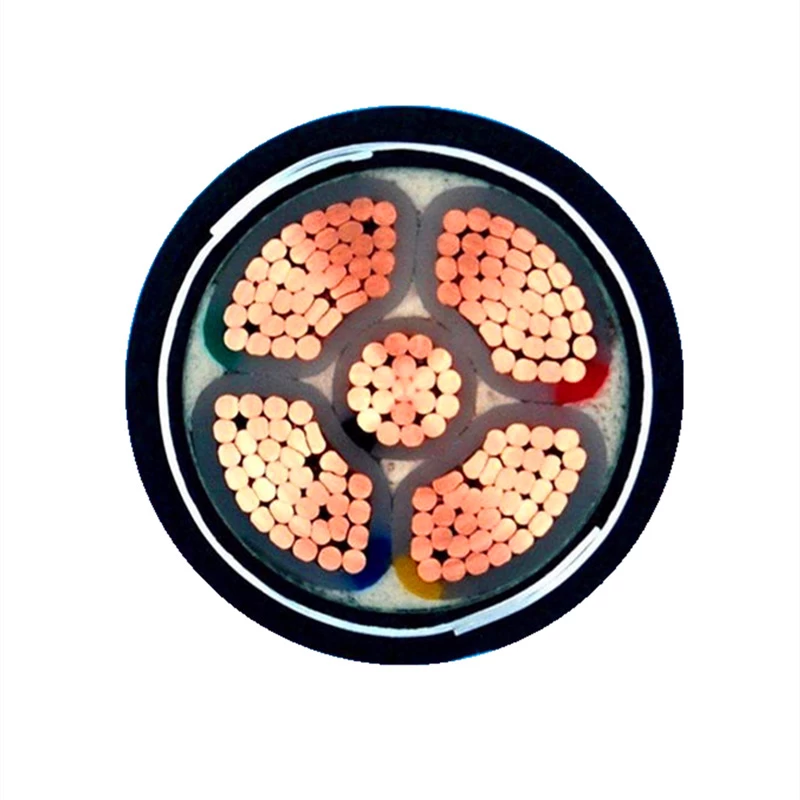

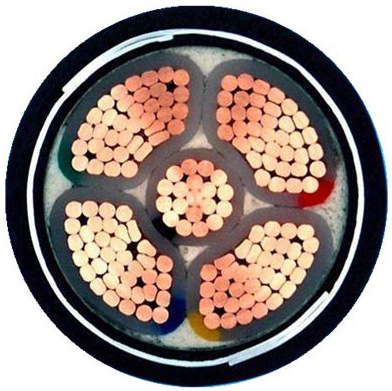

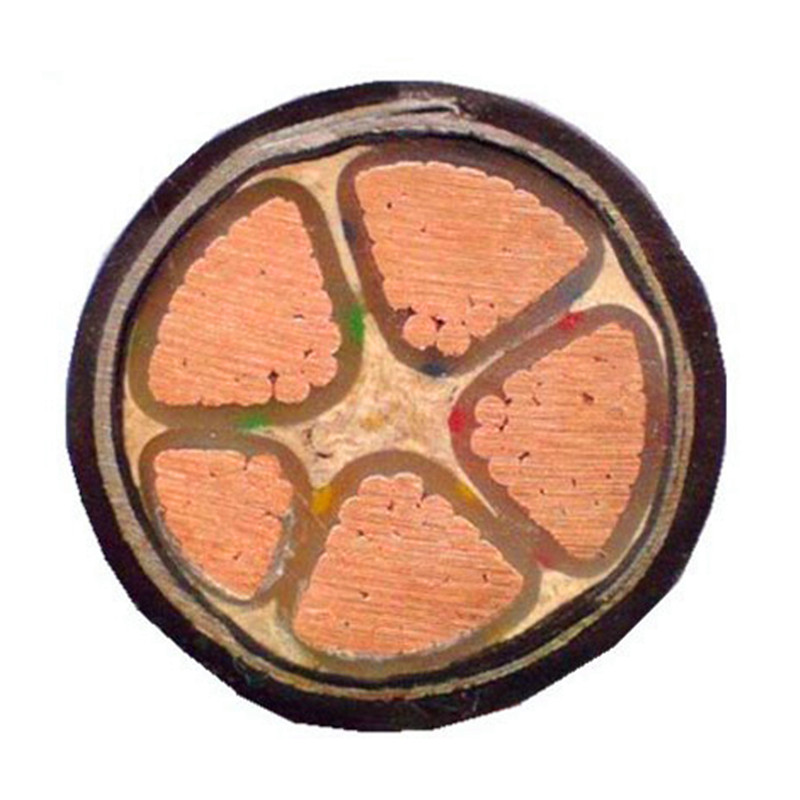

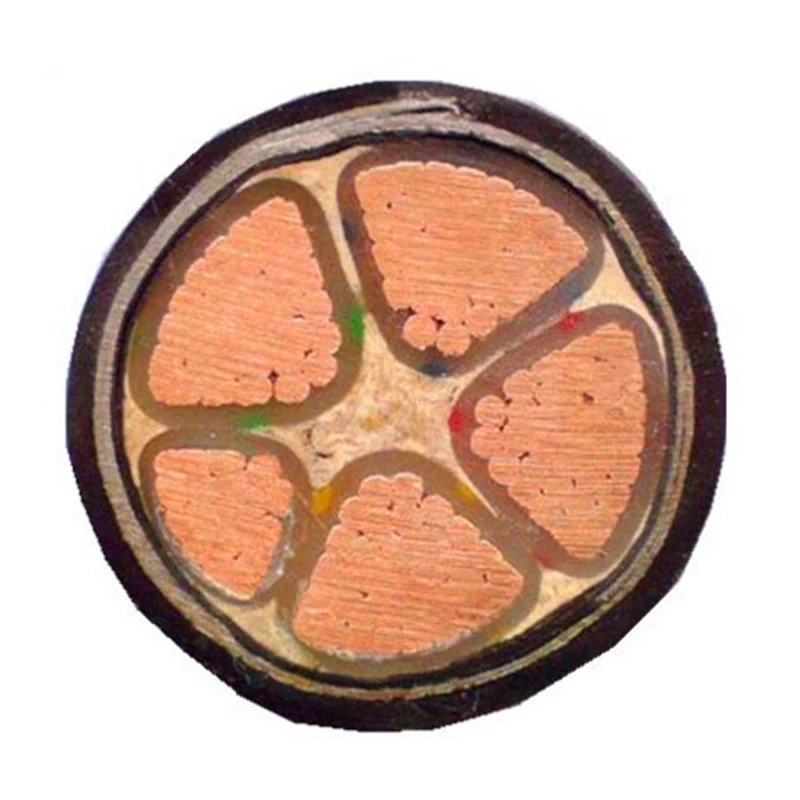

PRODUCTS STRUCTURE
---Conductor Material
Pure annealed copper wire, solid class 1, or strand class 2.
---Insulation Material
XLPE (cross-linked polyethylene)
---Insulation Color
1C: brown, blue, red, yellow, green, black, or others.
2C: brown, blue
3C: brown, blue, yellow/green
4C: brown, blue, black, yellow/green,
5C: brown, blue, black, grey, yellow/green
Remark: the insulated color is nature and close to transparent, then it with a colored tape.
---Filler Material
Fiberglass tape.
---Cabling Material
Non-woven fabrics
---Inner Sheath Material
PVC (Polyvinyl chloride)
---Armored Material
Galvanized steel tape
---Sheath Material (out insulation)
PVC (polyvinyl chloride)
---Sheath Color
Black, or others.
---Core Number
2～5 cores, 2C～5C.
---Voltage Rate (U0/U)
0.6/1kV, 600/1000V (Um: 1.2kV).
---Working Temperature
-15℃～+90℃.
---Minimum Bending Radius
Fixed: 20 x Out Diameter.
---Production Standard
GB/T 12706, IEC 60502, BS 7870
---Products Delivery
Within 10-15 working days as soon as we received the deposit.
REMARK
---The above information is only for
you reference, for the formal technical data, please refer to the actual cables.
---The product can have flame retardant, fire-resistant
or Low Smoking Zero Halogen properties, and their working temperature can be 90 degree, but the production process and insulation materials maybe has
a few of different.

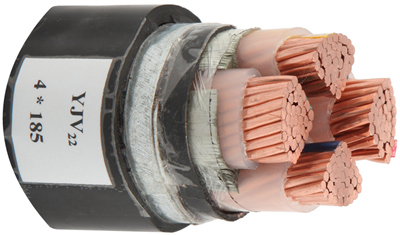

---For the YJV22 power cable, according
to the practice, the common specification is 50～240 mm2.
---The OEM or OBM service
will be accepted, but the customer should be provided the authorization letter to
us in advance, and the authorization letter must be true and valid.
---Hante Cable:
Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Hante Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
