Electrical Performance
1) Contact Resistance & Rated Current
|
Contact Specification (mm)
|
Contact Resistance (mΩ)
|
Rated Current (A)
|
|
Φ0.8
|
≤8
|
3
|
|
Φ1
|
≤5
|
5
|
|
Φ1.5
|
≤3
|
10
|
2)Rated Voltage, Withstand Voltage and Insulation Resistance
|
Working Environment
|
Rated Voltage
|
Withstand Voltage
|
Insulation Resistance
|
|
Normal Temperature & Pressure
|
500
|
1500
|
≥3000
|
|
Hot & Humid
|
500
|
750
|
≥100
|
|
High Temperature
|
500
|
---
|
≥500
|
|
Low Pressure Condition 4.39Kpa
|
250
|
350
|
---
|

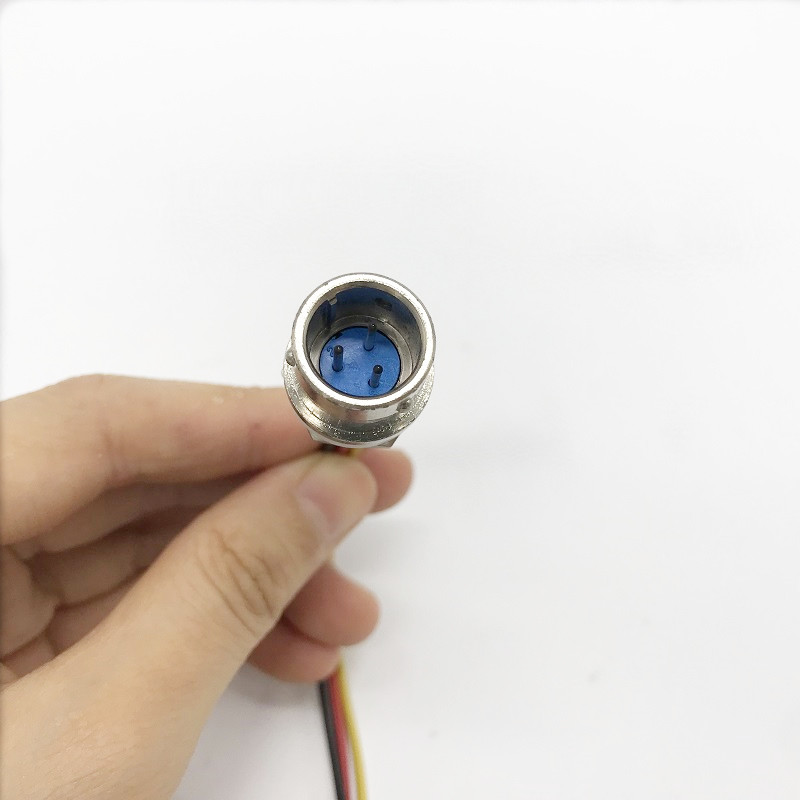

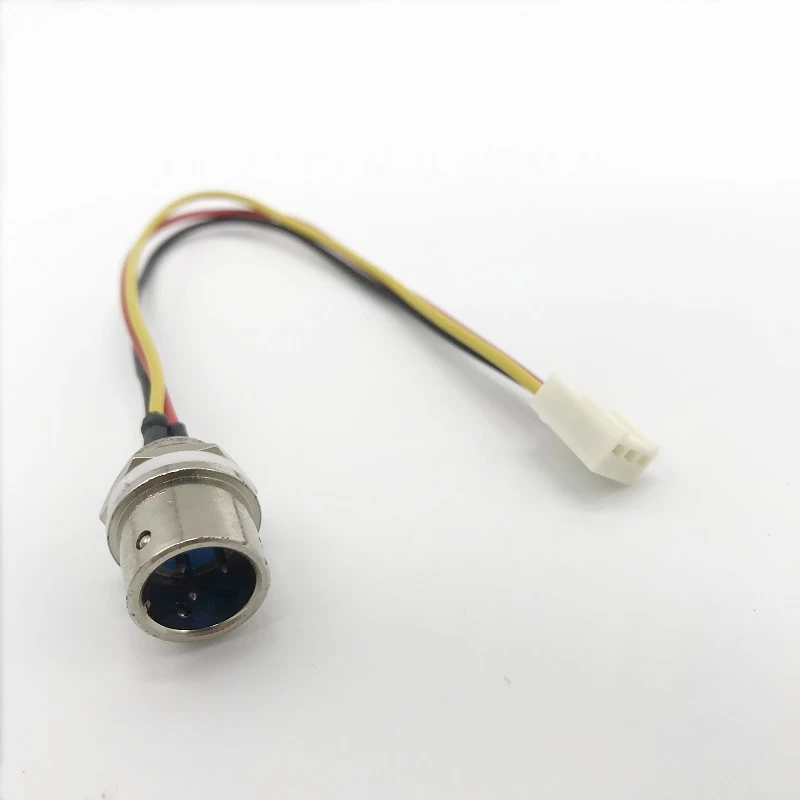

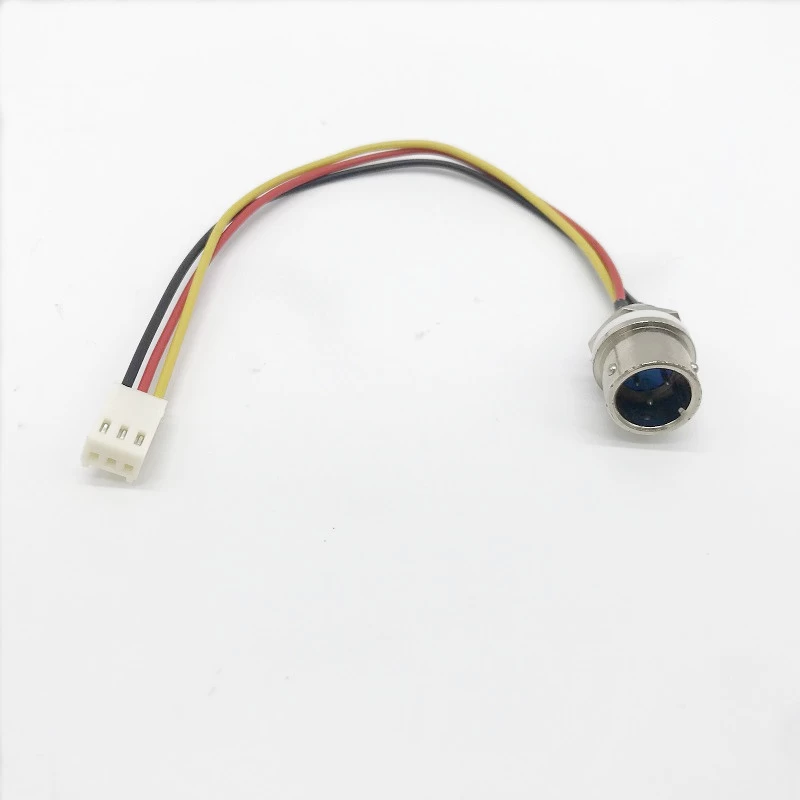

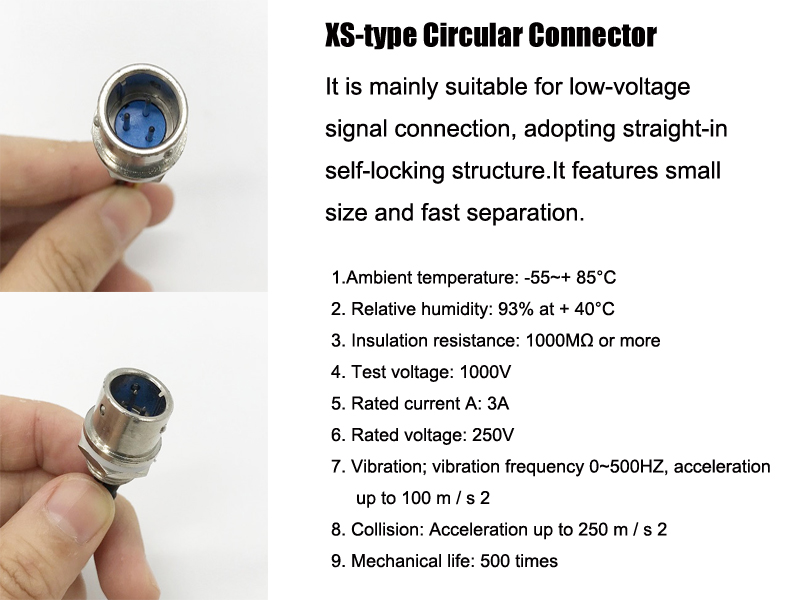

Custom Cable Harness with XS type circular connectors to Molex 2510 3pin connector is mainly for industrial automation applications, machenical devices, computer control machine, etc. We are the professional wire harness manufacturer, specialized in customized wire harness with various kind of connectors, like D-sub, GX circular series,WSP series, RCA, waterproof plastic plug series, OBD and so on. Based on your request, the connectors can be from JST, Molex, TE connectivity, JAE, HRS, Dupont and another brands as you mentioned.
Welcome to contact us for your custom wire harness design.
