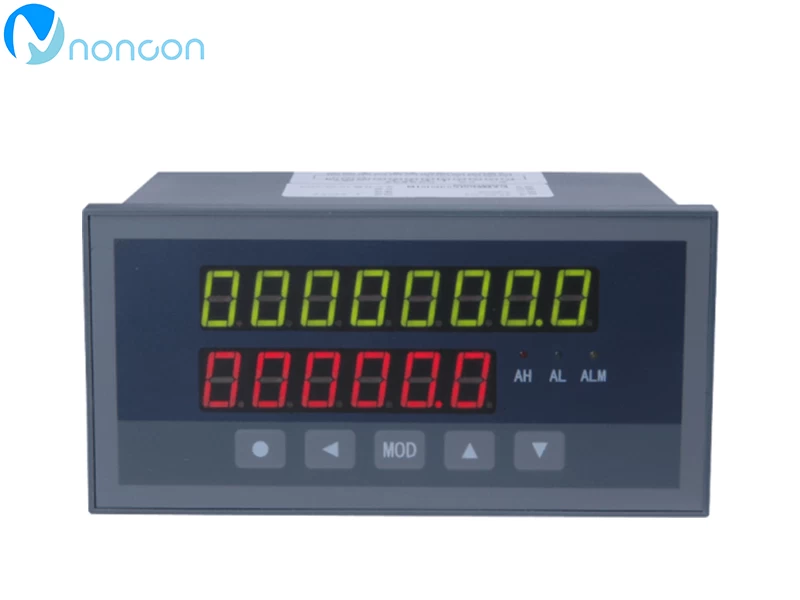

Instrument characteristics
●The error is less than 0.2%F.S, and the function of adjusting and digital filtering can help to reduce the error of the sensor;
●Effectively improve system measurement and control accuracy;
●Flow Sensor for Pulse output;
●3-point switch input for startup, recovery, and zero for each cumulative value;
●1 point control output for valve control cycle 0.02 seconds;
●The 7 - segment line operation can reduce the nonlinear error of flow sensor;
●Instantaneous flow by hour or by minute unit of measurement can choose.
Model specification
Table 1
|
content
|
Code and instructions
|
|
XSN/
|
|
|
Installation dimensions
|
A-—
|
160（W）×80(H)×115(L)
|
|
Panel form
|
H
|
Horizontal type
|
|
Display mode
|
L
|
8 digit cumulative display, display range 0~99999999, decimal point floating
6 digit instantaneous display, display range 0~999999, decimal point floating
|
|
Input signal
|
1
|
Single pulse input
|
|
Control output
|
T1
|
1-point control output
|
|
External control input
|
K3
|
Start, stop, clear / start,
|
|
External power supply
|
B1
|
External supply 12VDC, error less than ±5%, 50mA (flow channel power supply)
|
|
Communication interface
|
S0
|
No communication interface
|
|
S1
|
RS232 interface
|
|
S2
|
RS485 interface
|
|
Instrument power supply
|
V0
|
220V AC
|
|
V3
|
Other
|
