Y spring check valve thread socket weld end


Y type check valve is installed on integrated control water pipe. as a safety device to automatically prevent the counter current of the medium. The first is a bolted bonnet. The valve body is connected with the bonnet with a bolt nut and a wound gasket (31) 6 clip flexible graphite manufacture) seal, may also use the metal ring connection. The second design form is welded bonnet.


Features:

1/4"~3" (DN6~DN80)

W.P.:800WOG (PN50)

W.T.: -20℃-180℃

Investment casting

Thread end: ASME B 1.20.1(NPT)

                 DIN 259/DIN 2999,BS 21,

                 ISO 288-1,ISO 7-1

Socket weld end: ASME B16.11


Material List
No.
PARTS
MATERIAL
1
BODY WCB
CF8
CF8M
2 NUT 304 304 316
3
WASHER 304 304 316
4 SEAT PTFE
5
DISC CF8 CF8 CF8M
6 SPRING 304 304 316
7 GASKET
8 BONNET




Category: Y type strainer



Y spring check valve thread end

Unit:mm

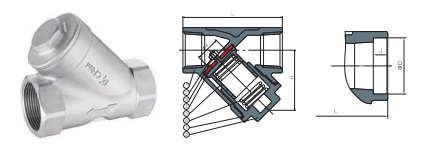

Dimensions
SIZE
d
L
H
D
J
1/4"
DN6
12 60 41 14.2 9.5
3/8"
DN10
12 60 41 17.6 9.5
1/2"
DN15
15 60 41 21.8 9.5
3/4" DN20
20 75 52 27.2 12.5
1"
DN25
24 85 60 33.9 12.5
1--1/4" DN32
32 104 79 42.7 12.5
1-1/2" DN40
39 108 82 48.8 12.5
2" DN50
50 126 94 61.2 16
2-1/2" DN65
63 165 106 73.9 16
3" DN80
76 192 120 89.8 16



Y spring check valve thread end

Packing & Delivery :

Packing Details  : all by seaworthy plywood case and packed strongly by packing belt as below

Delivery Details : Generally it is 5-10 days if the goods are in stock. or15-30 days if the goods are OEM or not enough subject to the order quantity. But anyway, normally, we are able to make sure the delivery will not exceed 45days.
