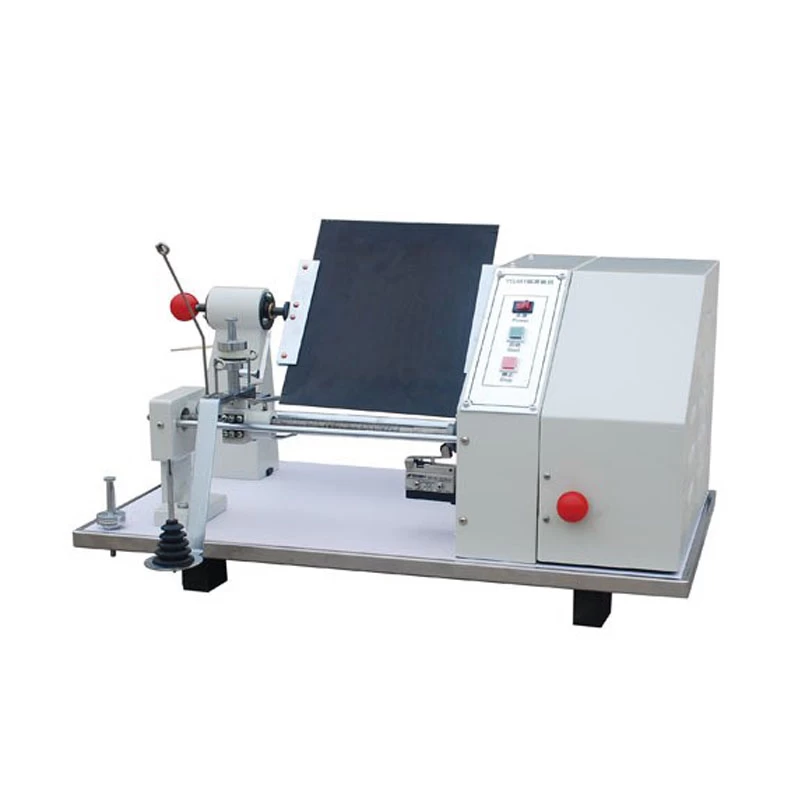

Yarn Examining Machine AY02

Electric reeling machine used for accurate determination of the length of the yarn for the determination of the linear density or count of the textile yarn and for the strength test of the yarn.



AY02-Yarn Examining Machine


Application Of Yarn Examining Machine

Yarn Examining Machine is used to shake all kinds of yarns on the standard blackboard to check and evaluate the yarn appearance quality grade.



Features Of Yarn Examining Machine

  • Direct transmission with synchronous toothed belt, no slippage;
  • Use optocoupler counting;
  • The imported electronic tension sensor dynamically displays the tension of the winding yarn without additional tension impact.


Standards Of Yarn Examining Machine

ASTM D2255, GB/T996, 398, 5324, FZ/T32004, 32005


Key Specification Of Yarn Examining Machine

Model

AY02 Yarn Examining Machine

Simultaneous test yarns

6 strokes

Yarn spacing

60 mm

Yarn frame perimeter

1000±1 mm

Yarn frame rotation speed

20- 250 rpm (stepless speed regulation)

Number of laps

1- 9999

Swing yarn traverse width

35±0.5 mm

tension range of single swing yarn

0-100 ± 1 CN, 0.5 N force per Tex.

Power supply

AC220V 50Hz/60HZ

Dimensions

78×66×48 cm

Weight

53 kg


Related products

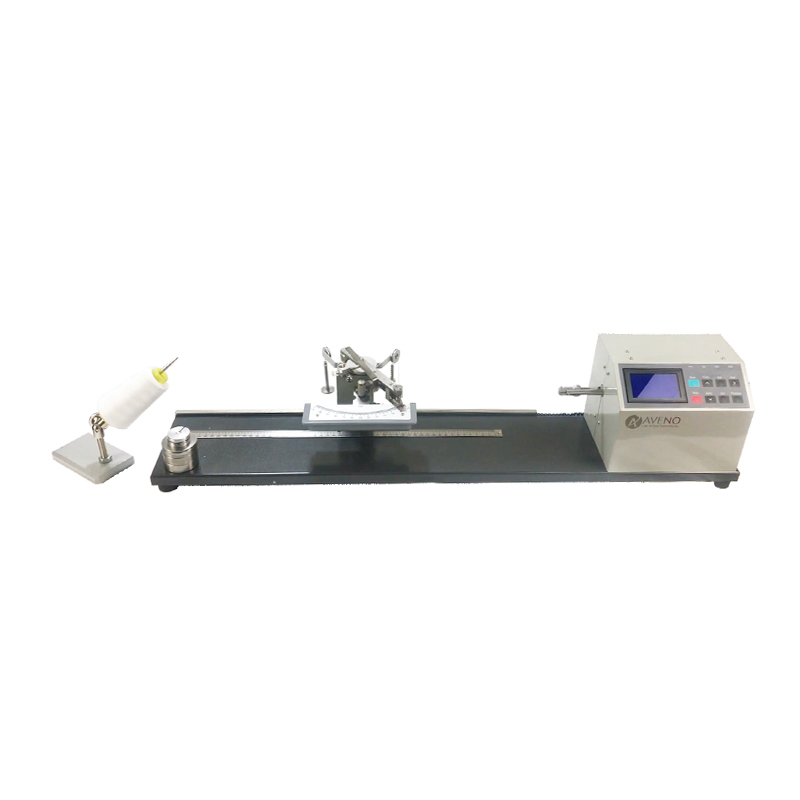

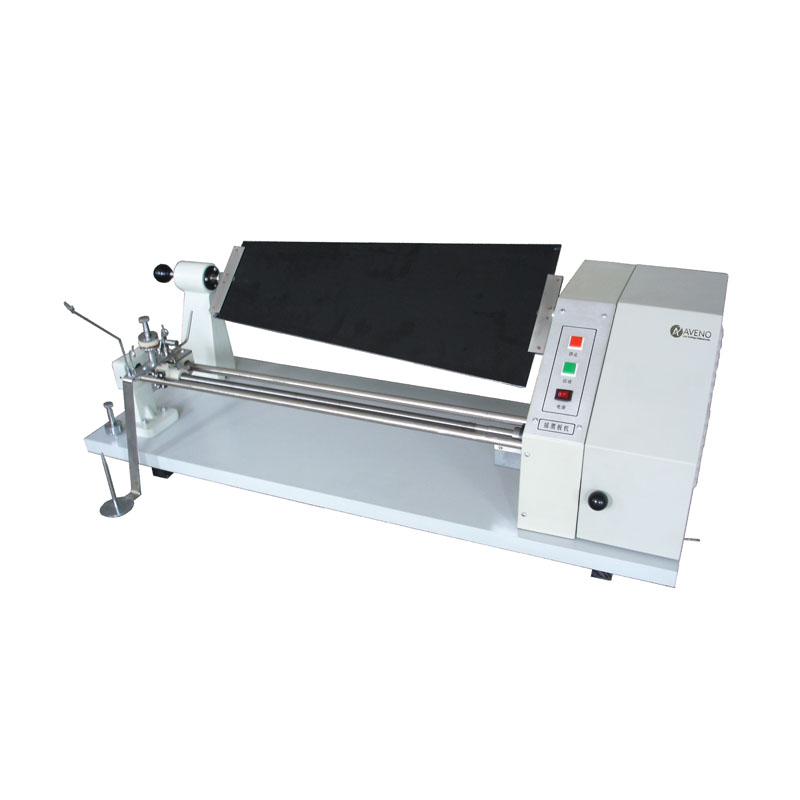

      Electronic Wrap Reel Tester                     Electronic Twist Tester                  Yarn Examining Machine
