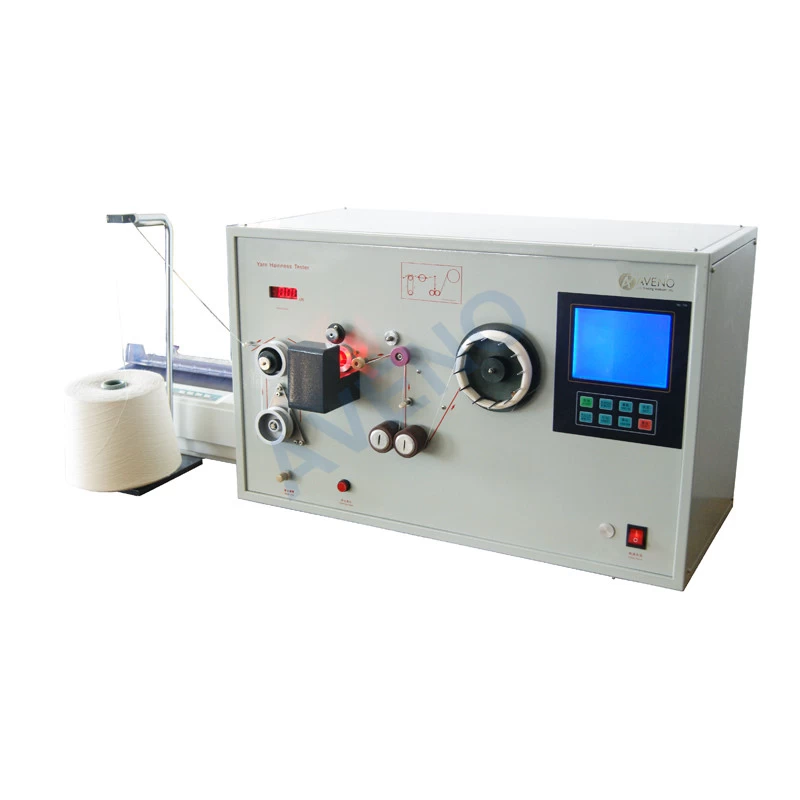

AY14B-Yarn Hairiness Tester
Application Of Yarn Hairiness Tester
Yarn Hairiness Tester is a special electronic instrument for measuring the length, quantity and distribution of different kinds of tube yarn and pulp hairiness.
Feature Of Yarn Hairiness Tester
-
Computer automatic detection, correction, display and statistics
-
High precision of hairiness setting length and stability of yarn walking.
-
Simultaneous determination of the hairiness number of 1-8mm or 1-9mm hairiness at one time
Key Specification Of Yarn Hairiness Tester
|
Model
|
AY14B Yarn Hairiness Tester
|
|
Detected hairiness length
|
Test the hairiness number
of 1, 2, 3, 4, 5, 6, 7, 8 and 9mm hairiness length at the same time
|
|
Hairiness length setting accuracy
|
≤0.1mm
|
|
Hairiness resolution
|
≤0.5mm
|
|
Test speed
|
15m/min, 30m/min, 60m/min±5%
10m/min, 100m/min (optional)
|
|
Yarn test fragment length
|
1～1000m,
can be set
|
|
Continuous test times
|
1-10000, can be set
|
|
Tension adjustment range
|
5-15cN
|
|
Data output method
|
LCD screen display and EPSON
LQ series printer print record
|
|
Statistics
|
Average hairiness index,
The overall uneven rate,
Mean square deviation,
Yarn tube unevenness,
Histogram.
|
|
Power supply
|
AC220V, 50/60HZ
|
|
Dimensions
|
500*450*310mm(L*W*H)
|
