Specifications
| Main function |
Variable Speed/Frequency Drive (VSD/VFD) / Inverter |
| Product series / family name |

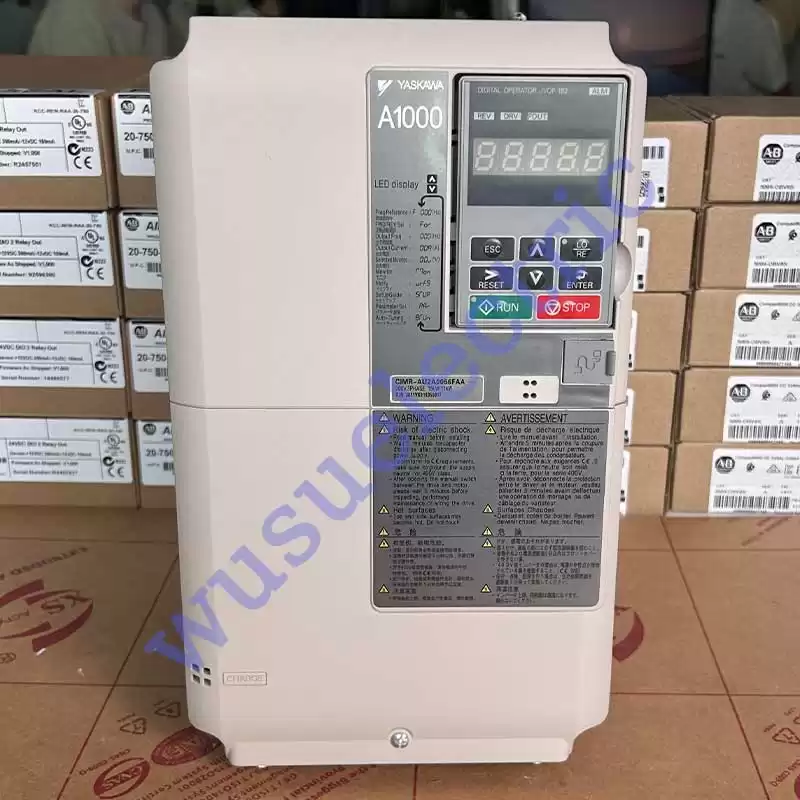

A1000 series |
| Network frequency |
(output) 0.01-400 Hz
(input) 50/60 Hz |
| Model |
SGDG10GT |
| Functions |
Multi-purpose Variable Speed/Frequency Drive (VSD/VFD) / Inverter - USA region
Droop Control
Speed/torque Control Switching
Feed Forward Control
Zero servo function
Speed search
Overtorque detection
Undertorque detection
Torque limit
17-step speed
Acceleration/Deceleration time switch
S-curve accel/decel
3-wire sequence
Auto-tuning
Dwell
Cooling fan on/off switch
Slip compensation
Torque compensation
Frequency jump
Upper/lower limits for frequency reference
DC injection braking at start and stop
Overexcitation braking
High slip braking
PID control
Energy saving control
Fault restart
Application presets
Backup
Online tuning
KEB
Overexcitation deceleration
Inertia (ASR) tuning
High Frequency Injection |
| Supply voltage (AC) |
200Vac-240Vac (208Vac / 220Vac / 230Vac) |
| Display |
LED 5-digit display |
| Type of network |
3-phase input (3P) |
| Rated current |
56A (Normal duty)
47A (heavy duty)
120% / 60s (Normal duty) or 150% / 60s (heavy duty) overload current rating |
| Rated power (HP) |
20HP (Normal duty)
15HP (Heavy-duty) |
| Protection functions |
Motor overheat
Overcurrent
Overload
Overvoltage
Undervoltage
Momentary power loss ride-thru
Overheat
Ground fault |
| Protection settings |
(Overcurrent) output current exceeds 200% of heavy duty rating
(Overload) 120% of rated output current; normal duty
(Overload) 150% of rated output current; heavy duty |
| Communication protocol |
RS-422
RS-485 |
| Mounting mode |
Wall mounting |
| Digital inputs |
1 x digital input (24Vdc; Sink/Source) (S1 - Forward / Stop)
1 x digital input (24Vdc; Sink/Source) (S2 - Reverse / Stop)
1 x digital input (24Vdc; Sink/Source) (S3 - External fault)
1 x digital input (24Vdc; Sink/Source) (S4 - Fault reset)
1 x digital input (24Vdc; Sink/Source) (S5 - Multi-step speed 1)
1 x digital input (24Vdc; Sink/Source) (S6 - Multi-step speed 2)
1 x digital input (24Vdc; Sink/Source) (S7 - Jog speed)
1 x digital input (24Vdc; Sink/Source) (S8 - External Baseblock)
1 x digital input (Pulse train input) |
| Digital outputs |
1 x digital output (SPDT Single Pole Double Throw contact type) (MA-MB-MC; MC-MB closed means fault)
1 x digital output (NO Normally Open contact type / Multi-function contact output) (M1-M2)
1 x digital output (NO Normally Open contact type / Multi-function contact output (Zero speed) contact) (M3-M4)
1 x digital output (NO Normally Open contact type / Multi-function (Speed agree 1) contact output) (M5-M6)
1 x digital output (multi-function pulse train) (MP) |
| Analog inputs |
1 x analog input (-10...+10Vdc / 20kΩ) (Analog Input 1 - Frequency reference bias)
1 x analog input (0-20mA / 4-20mA / -10...+10Vdc / 250Ω) (Analog Input 2 - Frequency reference bias)
1 x analog input (-10...+10Vdc / PTC input) (Analog input 3 - Aux. frequency reference or motor temperature) |
| Analog outputs |
1 x analog output (4-20mA / -10...+10Vdc) (FM - to output frequency meter)
1 x analog output (4-20mA / -10...+10Vdc) (AM - to output current meter) |
| Degree of protection |
IP20
NEMA 1 |
| Net Height (mm) |
295.25 mm |
| Net Width (mm) |
177.25 mm |
| Net Depth (mm) |
184 mm |
| Ambient air temperature for storage |
-20...+60 °C |
| Technology used in component |
Forced ventilation (Fan-cooling)
Standard heatsink fins |
| Rated apparent power (S) |
21kVA (Normal duty)
17.9kVA (heavy duty) |
| Application type |
HVAC
Fans
Pumps
Compressors
Conveyors
Machine Tools
Extruders
Punching Presses
Winders |
| Order code / Manufacturer SKU |
CIMRAU2A0056FAA |
Advantage Products
| Siemens |
6SE6440-2UD21-5AA1 |
Siemens |
6SL3220-1YD42-0CB0 |
| Siemens |
3LD2103-1TP51 |
Siemens |
6SL3120-2TE13-0AD0 |
| Siemens |
6SL3220-3YE46-0AB0 |
Siemens |
6ES7193-6BP20-0BF0 |
| Siemens |
6SE6440-2AB22-2BA1 |
Siemens |
6SL3210-1SE31-5UA0 |
| Siemens |
3VA9211-0WF30 |
Siemens |
6SL3220-3YE34-0UP0 |
| Siemens |
6GK1901-1BB12-2AA0 |
Siemens |
6SL3000-0CE37-7AA0 |
| Siemens |
3RT7017-1AN21 |
Siemens |
6SE6420-2AD22-2BA1 |
| Siemens |
6ES7517-3FP00-0AB0 |
Siemens |
6EX2001-5QN25 |
| Siemens |
3RT1024-1BF40 |
Siemens |
6SL3220-1YE64-0CF0 |
| Siemens |
6SE6430-2UD31-5CA0 |
Siemens |
6SL3220-3YE30-0UP0 |
