Specifications
| Primary brand |
Yaskawa |
| Main function |
AC servo motor |
| Product series / family name |
Servo motors > Rotary > Standard (shaft-type) > Sigma-5 series |
| Sub-range name |
SGMGV models |
| Functions |
Rotary brushless AC servo motor |
| Design |
center-tapped keyed shaft
built-in incremental encod. (20-bit; 1Mppr)
Design rev. A (standard)
high-torque type
Rotation counter-clockwise (CCW) with forward run reference when viewed from the load side |
| Supply voltage (AC) |
400Vac |
| Rated current |
28.1A nominal
70A instantaneous max. |
| Rated active power (kW) |
11kW |
| Rotational speed |
1500rpm rated speed
2000rpm max. speed |
| Torque |
70Nm
2.64Nm/A (RMS) torque constant |
| Maximum torque |
175Nm instantaneous peak |
| Moment of inertia |
0.000242kg.m2 (2.42kg.cm2) |
| Mounting mode |
220x220mm flange mounting |
| Resolution |
20-bit (equivalent to 1Mppr) feedback |
| Degree of protection |
IP67 |
| Ambient air temperature for operation |
0...+40 °C |
| Ambient air temperature for storage |
-20...+60 °C |
| Maximum radial load |
(Allowable radial load Fr) 1764 N |
| Maximum axial load |
(Allowable axial thrust load Fs) 588 N |
| Equivalent to |

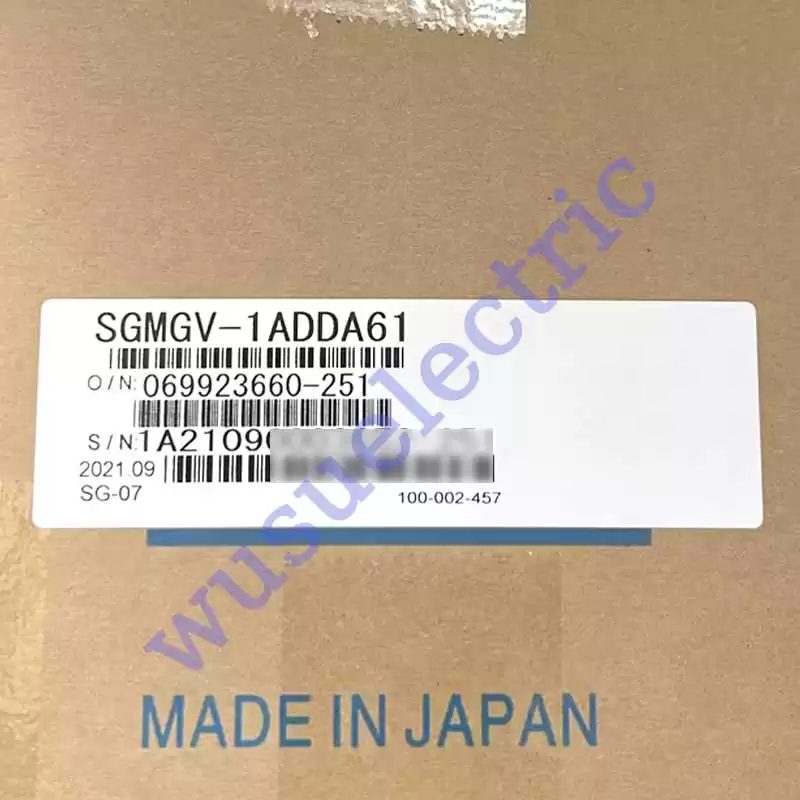

SGMGV1ADDA61 |
| Benefits |
High-speed driving of feed shafts for various machines
Wide selection from 300W to 15kW capacity and holding brake option
Mounted serial encoder 20 bits and high resolution
Protective structure IP67 |
| Insulation material |
Thermal class F |
