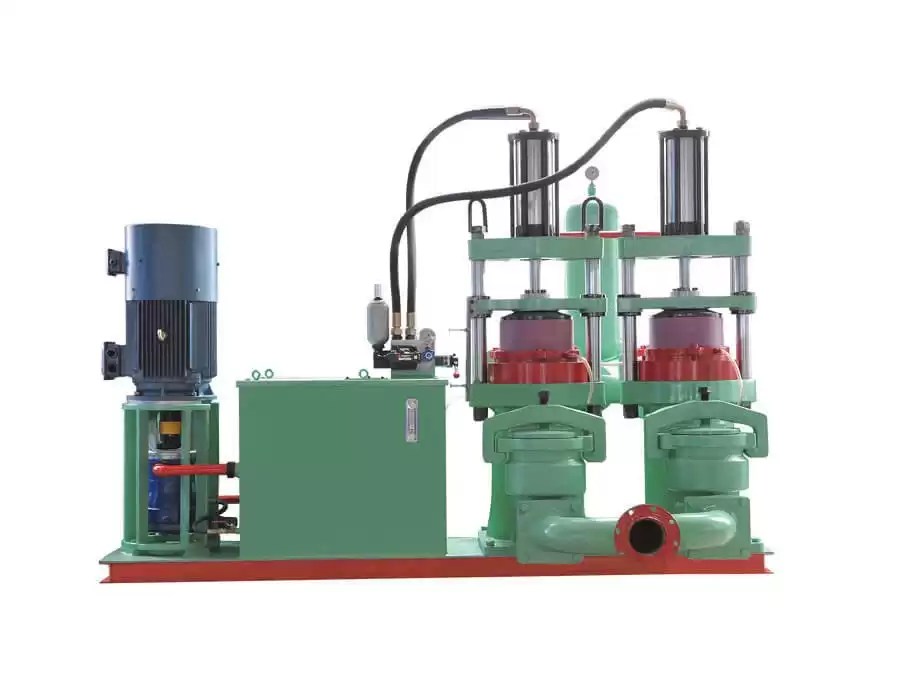

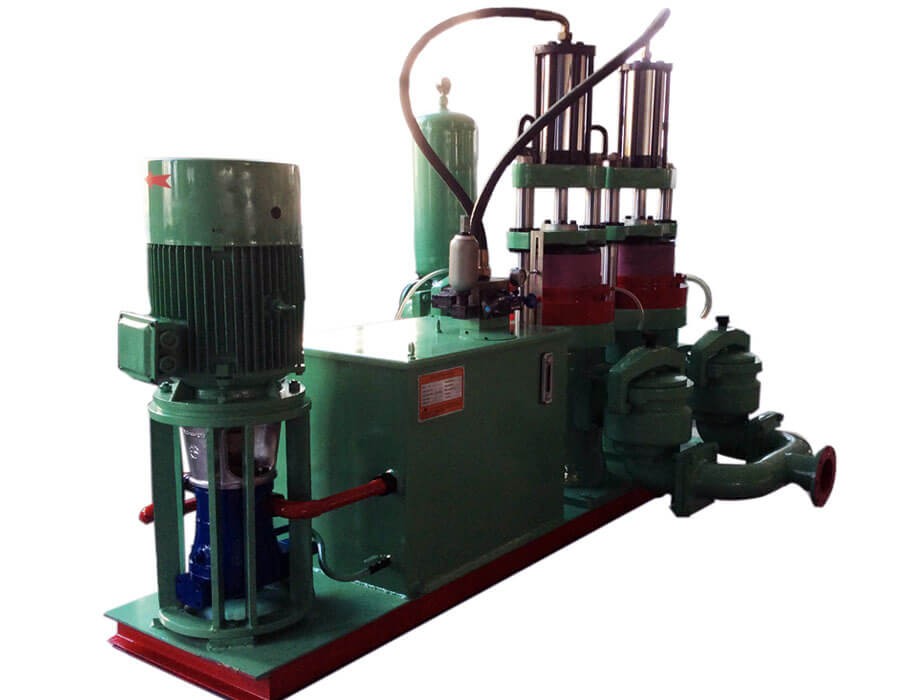

YB-300 Variable Flow Slurry Piston Pump
Variable Piston Pump Characteristic
Oil pump is outside, easy wearing and maintain
Compared to normal type, saving electricity by 30% during working.
Variable Flow Pump Technical Parameters
YB Series Sludge Piston Pump
Model | Flux (m3/h) | Pressure Range (Mpa) | Rated Pressure (Mpa) | Motor Power (kw) | Diameter （Suction And Discharge） （mm） | External Size (L*W*H) (mm) | Weight (Kg) |
YB-85 | 3.0 | 0-2.5 | 2.0 | 4 | Ø76 | 1800*850*1600 | 530 |
YB-120 | 7.1 | 0-2.5 | 2.0 | 11 | Ø76 | 2200*1300*1800 | 860 |
YB-140 | 10 | 0-2.5 | 2.0 | 11 | Ø76 | 2200*1300*1800 | 920 |
YB-200 | 19 | 0-2.5 | 2.0 | 18.5 | Ø89 | 2300*1400*1900 | 1250 |
YB-250 | 30 | 0-2.5 | 2.0 | 22 | Ø133 | 2600*1700*2100 | 1700 |
YB-300 | 40 | 0-2.5 | 2.0 | 30 | Ø133 | 2700*1900*2200 | 2600
|
Variable Flow Pump Application
Long distance supplying slurry, clean(dirty) water and coal slurry (or other suspensions) to filter press.
