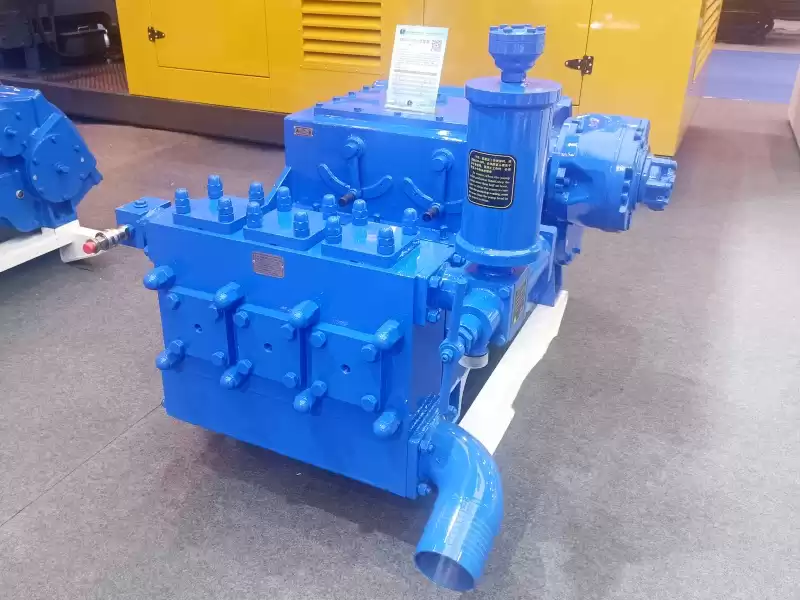

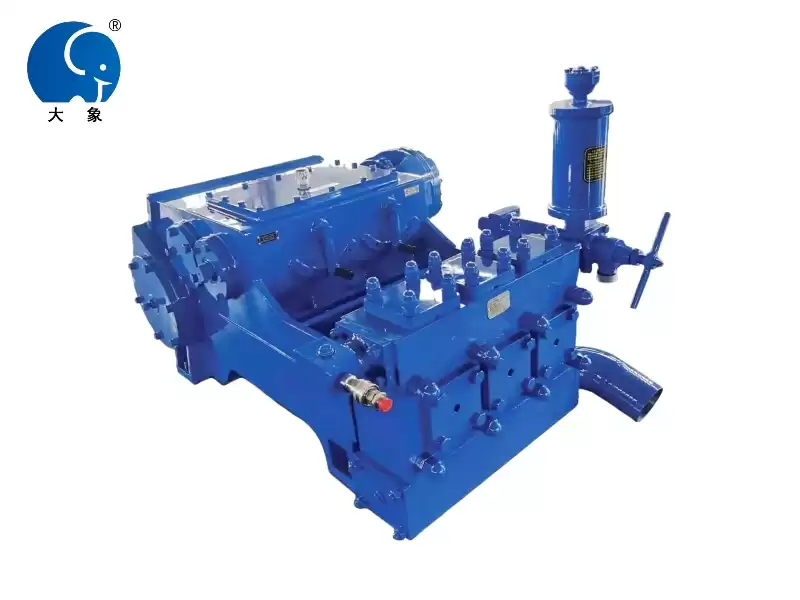

YBW-1200 Piston Mud Pump For 150ton HDD

YBW-1200 Horizontal mud pump mainly works with the drilling rig around 150ton.



YBW-1200 mud pump for drilling rigs is a kind of multi-purpose horizontal triplex reciprocating single-acting piston pump, with four gear shifting and four traffic.



The flushing liquor used by the pump should not contain the chemical impurity, which may corrode metal and rubber parts, meanwhile, the temperature can not exceed 50℃.  If the fluid is drilling mud, then it is recommended to follow below requirement:

1) Specific gravity: between 1.03~1.12,

2) Velocity: 18~25S

3) Allowable sand: max. 4% in content, max. diameter 3mm

4) PH Value: 7~8

5) No massive mud clods, grasses, tree leaves inside the fluid



Technical Parameters and Specifications:

Type Horizontal Triplex Reciprocating Single Acting Piston Mud Pump
Stroke (mm) 150
Cyclinder Diameter (mm) 125
Flow ( L/min) 1200      779       600       385
Pressure (Mpa) 4             6            8         12
Input Speed (r/min) 480
Input Power (KW) 100
Dimensions (mm) 1596*1141*1231
Weight (kg) 1700
Hydraulic Motor Model 3-500
Hydraulic Motor Pressure (Mpa) 25
Maximum Motor Flow (L/min) 260



Check this video to get more information regarding our YBW-1200 triplex mud pump.



Advantages:

1 - Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.

  • *  Professional Design Team:customizing the mud pump as per your requirements,such as the shape, color,etc.
  • *  Production Team:guaranting the production time and the quality, never late for shipment.
  • *  Sales and after-sales Team:1 Year Warranty; 24 Hours Online Service; Video Technical Support.
  • 2 - The Partners we cooperate.

3 - Adopting advanced structure and new materials.

With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.

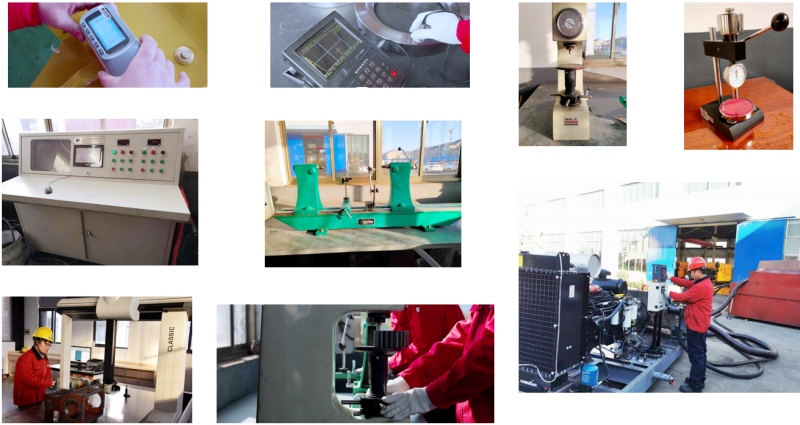

4- Advanced and professional testing and inspection equipment.
