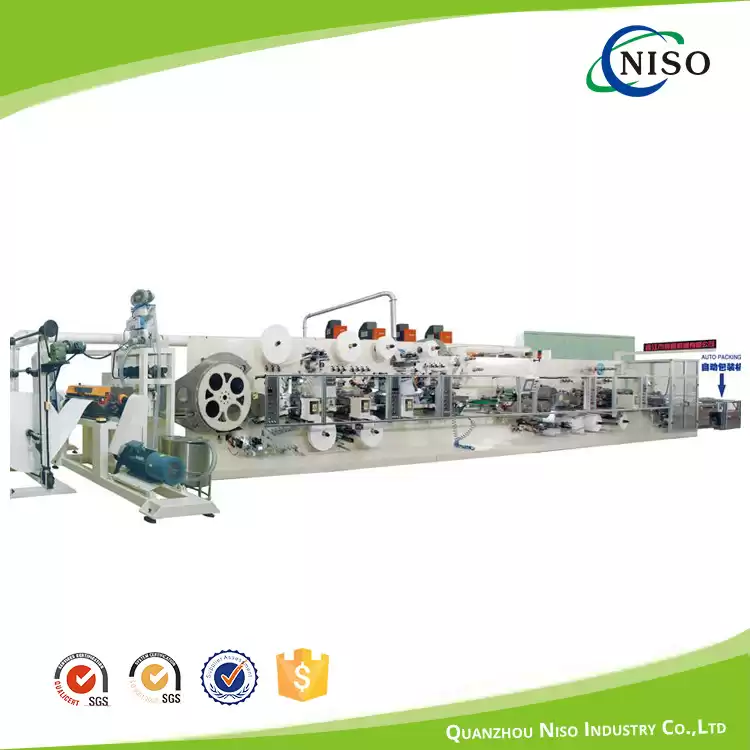

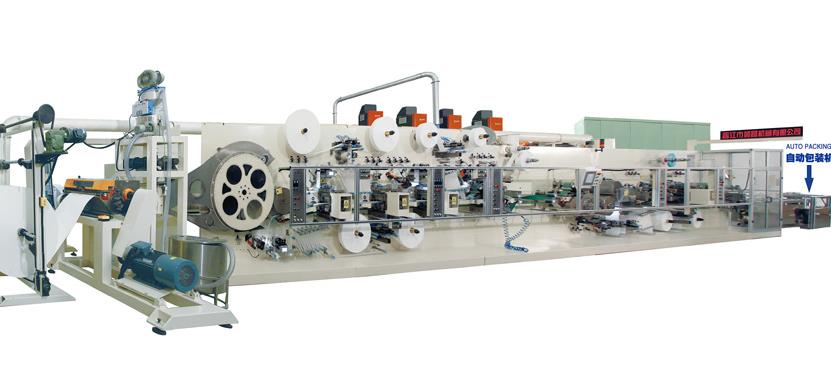

YC-HY400 China Economic Type Pad Machine
Machine parameter
|
Model
|
YC-HY400
|
|
Name
|
Economic type
|
|
Automaticly
|
Semi-auto
|
|
Product size
|
2 sizes
classic thick & ultra thin
wing & straight
|
|
Design speed
|
500pcs/min
|
|
Production speed
|
300-400pcs/min
|
|
Power
|
150KW
|
|
Power source
|
380V, 50HZ, 3 phase 5 wire
|
|
Efficiency
|
≧85%
|
|
Rejection rate
|
≦ 3%
|
|
Machine weight
|
45 Ton
|
|
Machine size
|
22m * 3m * 3m
|
|
Operating size
|
25m * 7m * 5m
|
|
Air pressure
|
0.6-0.8MPA
|
|
Machine color
|
Customlized
|
|
Machine direction
|
Customlized
|
Machine description
|
Machine total system
|
|
1.Pulp crusher system
|
|
2.SAP feeding system
|
|
3.Drum forming system
|
|
4.Lower tissue paper feeding system
|
|
5.Upper tissue paper feeding system
|
|
6.Web roller compacting system
|
|
7.Top sheet non woven feeding system
|
|
8.PE film feeding system
|
|
9.Rotary die system
|
|
10.Pull assembly before longitudinal fold
|
|
11.Longitudinal fold unit
|
|
12.Pull assembly after longitudinal fold
|
|
13.Rejection output
|
|
14.Out put system
|
About NISO
NISO is a professional raw materials and machine supplier for making baby diaper, adult diaper, feminine sanitary napkin,under pad and so on.
NISO covers an area of 5000 square meters, gets CE, ISO, SGS.
NISO exports more than1000 containers to Asia, Mid-east, Europe, South America, Africa countries.
NISO will be your consultancy and partner to reach win-win career together.
Quanzhou Niso Industry Co.,Ltd is your best choice for baby diaper machine, adult diaper machine, sanitary napkin machine and under pad machine in China.
