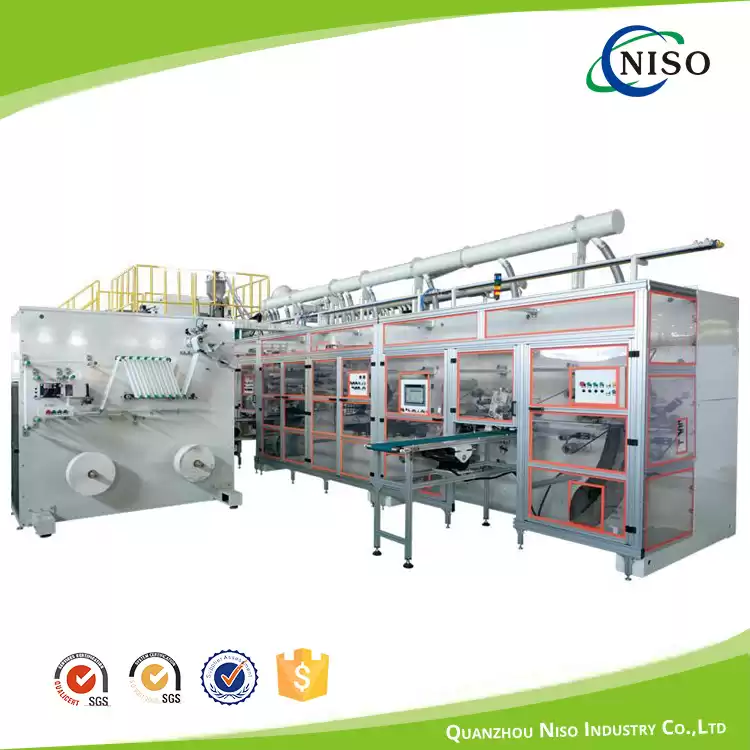

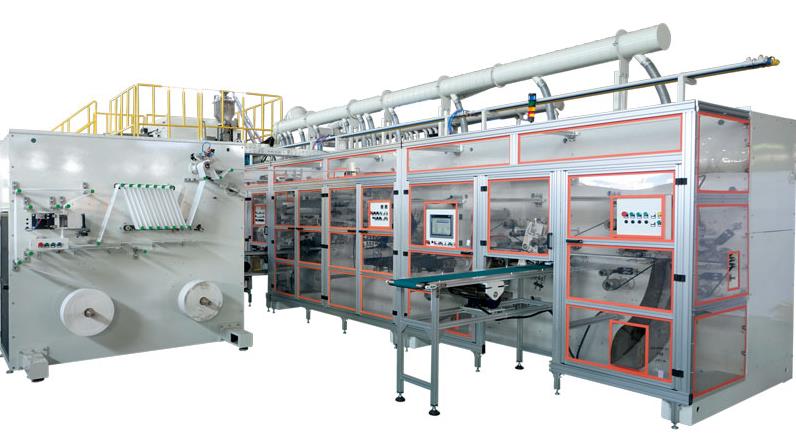

YC-HY600-HSV SemiServo Type Under Pad Machine
Machine parameter
|
Model
|
YC-HY600-HSV
|
|
Name
|
Semi servo type
|
|
Automaticly
|
Full auto
|
|
Product size
|
2 sizes
classic thick & ultra thin
wing & straight
|
|
Design speed
|
800pcs/min
|
|
Production speed
|
500-600pcs/min
|
|
Power
|
200 KW
|
|
Power source
|
380V, 50HZ, 3 phase 7 wire
|
|
Efficiency
|
≧88%
|
|
Rejection rate
|
≦ 2%
|
|
Machine weight
|
60 Ton
|
|
Machine size
|
28m * 3m * 3m
|
|
Operating size
|
33m * 7m * 5m
|
|
Air pressure
|
0.6-0.8MPA
|
|
Machine color
|
Customlized
|
|
Machine direction
|
Customlized
|
Machine description
|
Machine total system
|
|
1.Pulp crusher system
|
|
2.SAP feeding system
|
|
3.Drum forming system
|
|
4.Lower tissue paper feeding system
|
|
5.Upper tissue paper feeding system
|
|
6.Web roller compacting system
|
|
7.Top sheet non woven feeding system
|
|
8.PE film feeding system
|
|
9.Rotary die system
|
|
10.Pull assembly before longitudinal fold
|
|
11.Longitudinal fold unit
|
|
12.Pull assembly after longitudinal fold
|
|
13.Rejection output
|
|
14.Out put system
|
