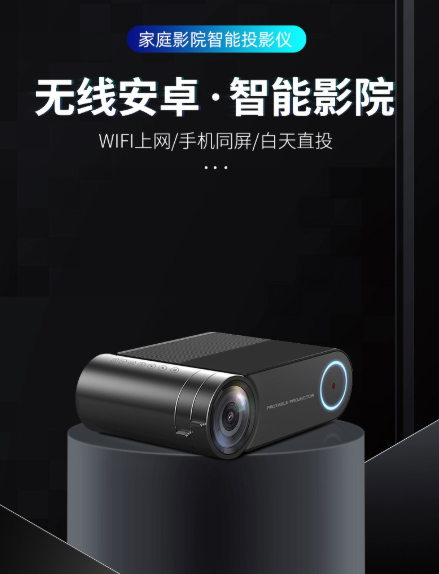

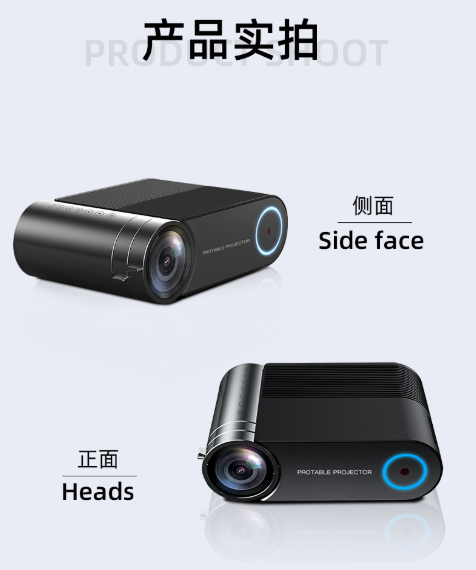

YG550 Projector：
Our company's YG550 home smart micro projector has WiFi function/mobile screen projection/Bluetooth function and supports 1080P HD. With infrared remote control function, it can support mobile hard drives below 1T.
Features:
1.It can read U disk, mobile hard disk, SD card, three-in-one AV cable with set-top box, DVD, etc.
2.It can be connected to the same screen of Apple and Android phones, tablet and notebook.
3.Can connect to WIFI to play movies, videos, TV, etc., and can put PPT in a small office
4.With infrared remote control function; can support mobile hard drives below 1T.
Technical Parameters：
|
Imaging
technology
|
TFT LCD
|
color
|
16.77 million
|
|
Physical
resolution
|
1280*720RGB
|
Keystone correction
|
±15° manual
|
|
Support
resolution
|
1920*1080
|
power input
|
100V-240V-50/60Hz
|
|
type of light
source
|
LED
|
Total power
|
84W
|
|
Light source
life
|
30000 hours
|
input interface
|
HDMI/USB*2/VGA/AV
|
|
Lens
specifications
|
Multi-piece coated
lens F=134
|
Output Interface
|
headset
|
|
Adjustment
method
|
Manual
|
speaker
|
3W
|
|
Projection distance
|
1.5-4.5M
|
Product Size
|
245*166*81.5mm
|
|
Projection
size
|
44-200inch
|
Throw ratio
|
1：4
|
|
screen ratio
|
16：9
|
Product Weight
|
1.25kg
|
Optional Configurations：
1.Normal version function: can read U disk, mobile hard disk, SD card, three-in-one AV cable with set-top box, DVD, etc. The computer with VGA port or HDMI port shall be wired and connected separately. An adapter or dedicated cable is required to connect the mobile phone.
2.The function of the same screen version of the mobile phone: It can read U disk, mobile hard disk, SD card, three-in-one AV cable with set-top box, DVD, etc. The computer with VGA port or HDMI port can be connected to the same screen as Apple Android phone, tablet and notebook.
3.Smart Android wIFI version function: can read U disk, mobile hard disk, SD card, three-in-one AV cable with set-top box, DVD, etc. You can also connect to WIFI to play movies, videos, TV, etc., you can put PPT in a small office, and you can connect to the same screen of Apple's Android phone, tablet and notebook, with Bluetooth function.
Process flow：
Applications：
It can be used for small meetings, home theaters, dormitory theaters, and homestays. You can watch movies at home without going out, so you can have a panoramic view.
