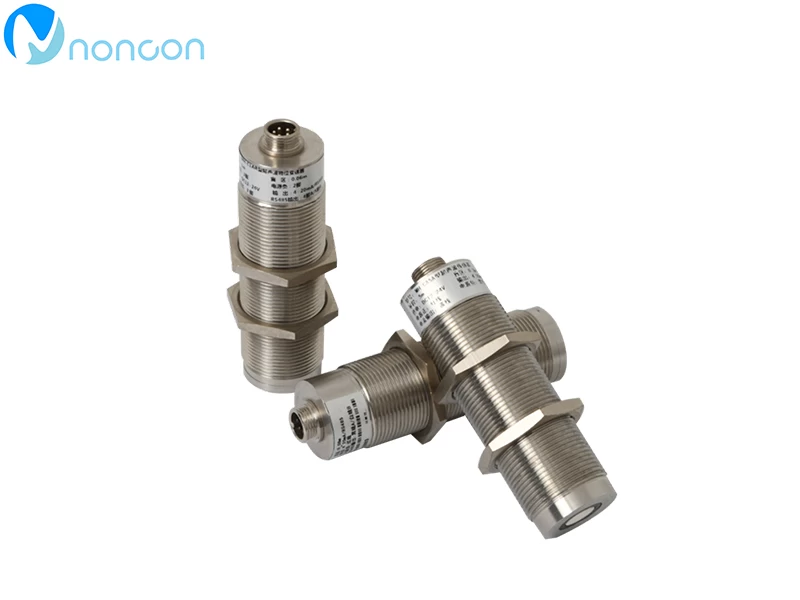

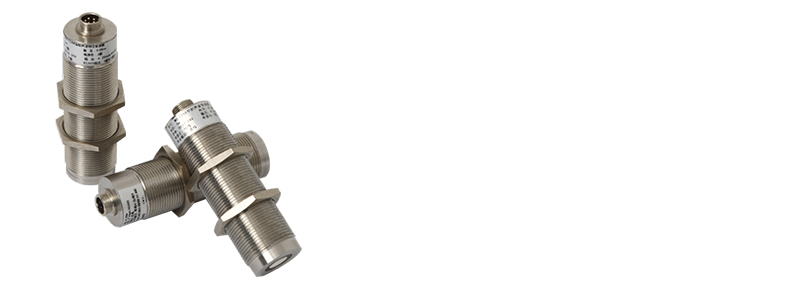

YI2000C High Precision Small Blind Area Ultrasonic Material Level Transmitter

Performance indicators

Range:

1mm、2mm(selected when ordering)

Blind area:

<0.06-1.5m (different depending on the range)

Launch Angle:

less than 6°(different by sensor)

Maximum error:

Less than ±1mm, less than ±1.5mm (different depending on the range)

Frequency :

40KHz~430.0KHz (different depending on model specifications)

Temperature compensation:

Automatic temperature compensation

Output (selected when ordering)

Output (selected when ordering)

0 ~ 20mA; 4 ~ 20mA load > 300Ω; 0 ~ 5V, 0 ~ 10V;

Digital output:

RS485 (support Modbus);

Power supply (selected when ordering)

Operating voltage:

DC12—24V

Power consumption:

<1.5W

Power consumption:

Overall dimensions:

Φ28mm×100mm×M30

Shell material:

304 stainless steel

Connection method:

Screw connection or ring fixation

Installation method:

M30×1.5

Outgoing mode:

Instrument standard socket (with cable 1.5m)

Environmental performance

Protection level:

IP65 (higher protection grade can be customized)

Explosion-proof grade:

EXiaII BT4Gb(selected when ordering)

Working environment:

Normal temperature/pressure

Storage humidity:

≤80%RH without condensation
