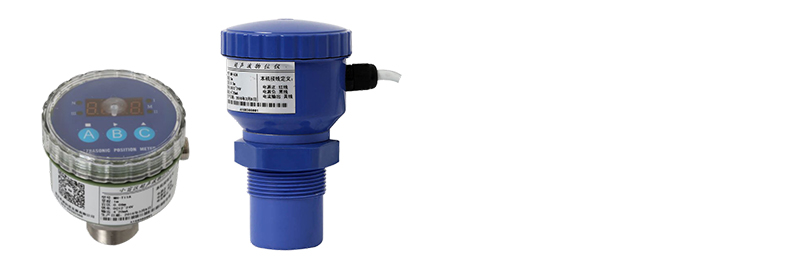

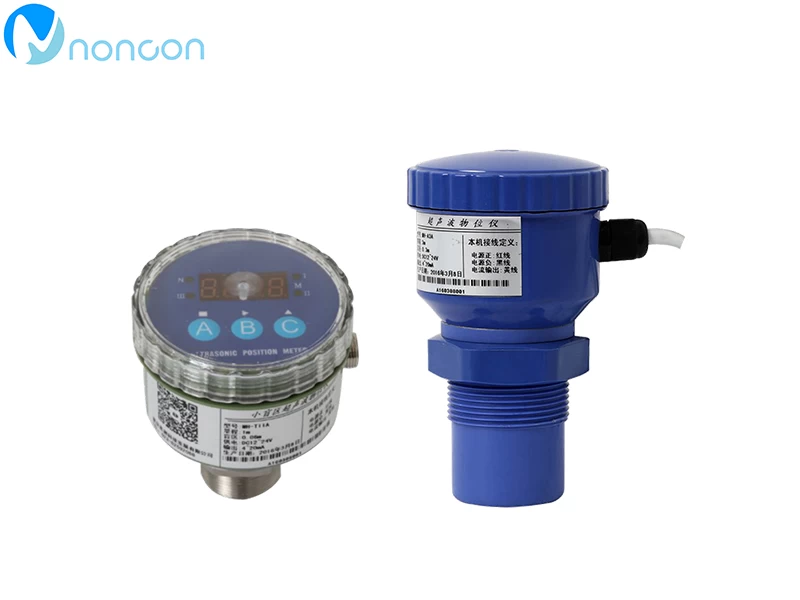

YI2000T High Precision Small Blind Area Ultrasonic Level Meter

Performance indicators

Range:

1mm、2mm(selected when ordering)

Blind area:

<0.06-1.5m (different depending on the range)

Launch Angle:

less than 6°(different by sensor)

Minimum display resolution:

1mm

Maximum error:

Less than ±1mm, less than ±1.5mm (different depending on the range)

Frequency :

40KHz~430.0KHz (different depending on model specifications)

Temperature compensation:

Automatic temperature compensation

Display:

Four-digit 8-segment LED digital tube (optional LCD display)

Site setting:

Local key completion

Calibration:

Factory calibration, on-site calibration

Output (selected when ordering)

Analog output signal:

0～20mA；4～20mA load > 300 Ω;0～5V；1～5V；0～10V；1～10V

Digital output:

RS485 (support Modbus);

Switch output:

Three way NPN

Power supply (selected when ordering)

Operating voltage:

DC12—24V

Power consumption:

<1.5W

Physical characteristics

Overall dimensions:

Φ74mm×92mm×M30(stainless steel)；Φ74mm×117mm×G1 1/2 (ABS)

Installation method:

M30×1.5、G1 1/2

Shell material:

ABS engineering plastics

Transducer:

Stainless steel or ABS engineering plastics

Keyboard:

Three-chip A, B, C keyboard

Outgoing mode:

Instrument standard socket or cable 1.5m (optional any length)

Environmental performance

Protection level:

IP65 (higher protection grade can be customized)

Explosion-proof grade:

EXiaII BT4Gb(selected when ordering)

Working environment:

Normal temperature/pressure

Storage humidity:

≤80%RH without condensation
