Yokogawa
|
|
Dimensions:3.3 cm x 12.5 cm x 13 cm
|
Part Number： AAB841-S00
|
Product Package：Original Package
|
|
Weight: 0.3KG
|

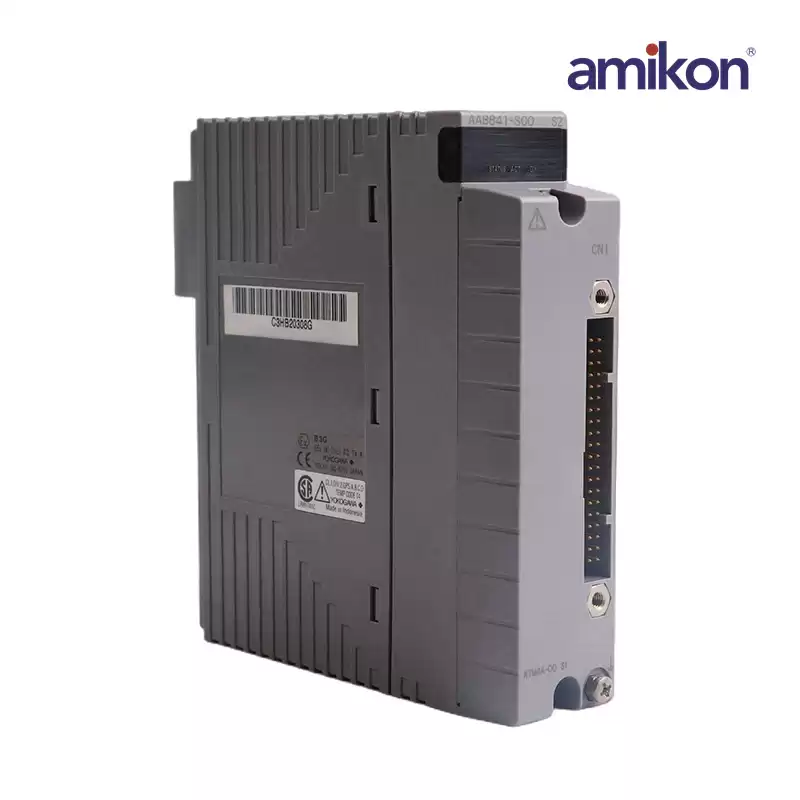

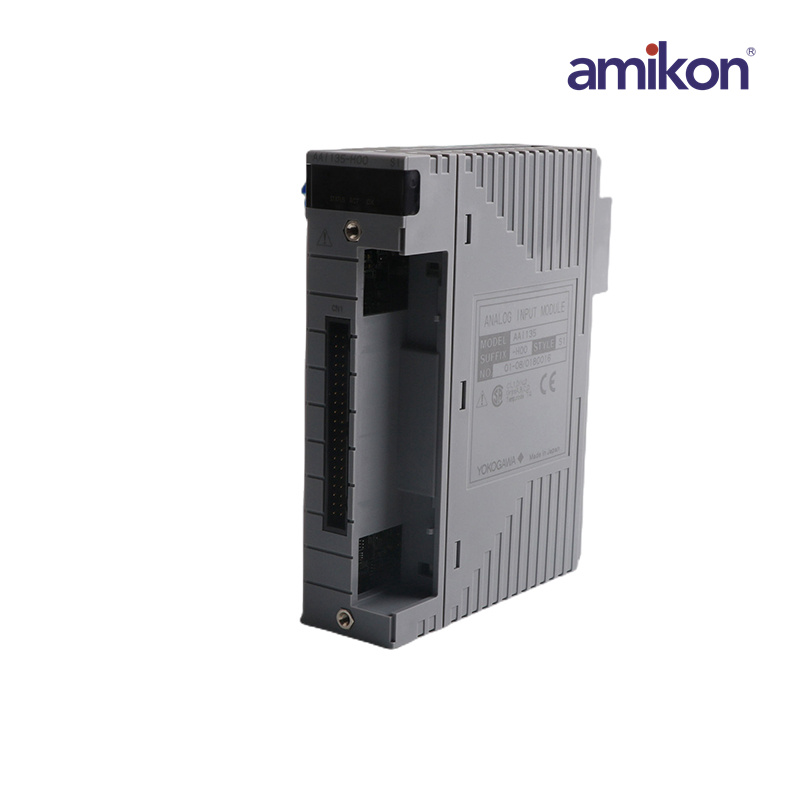

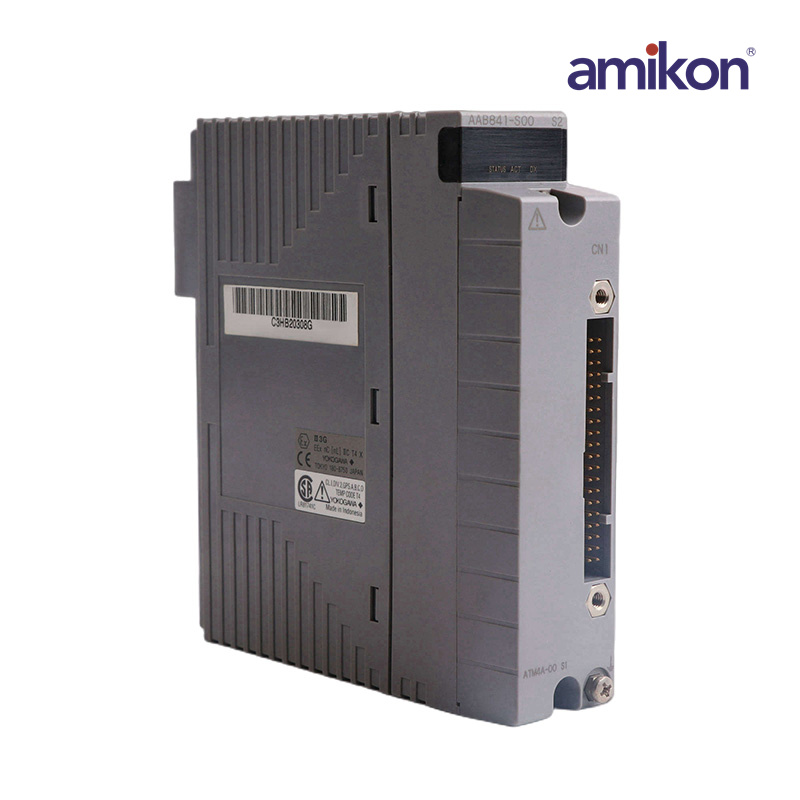

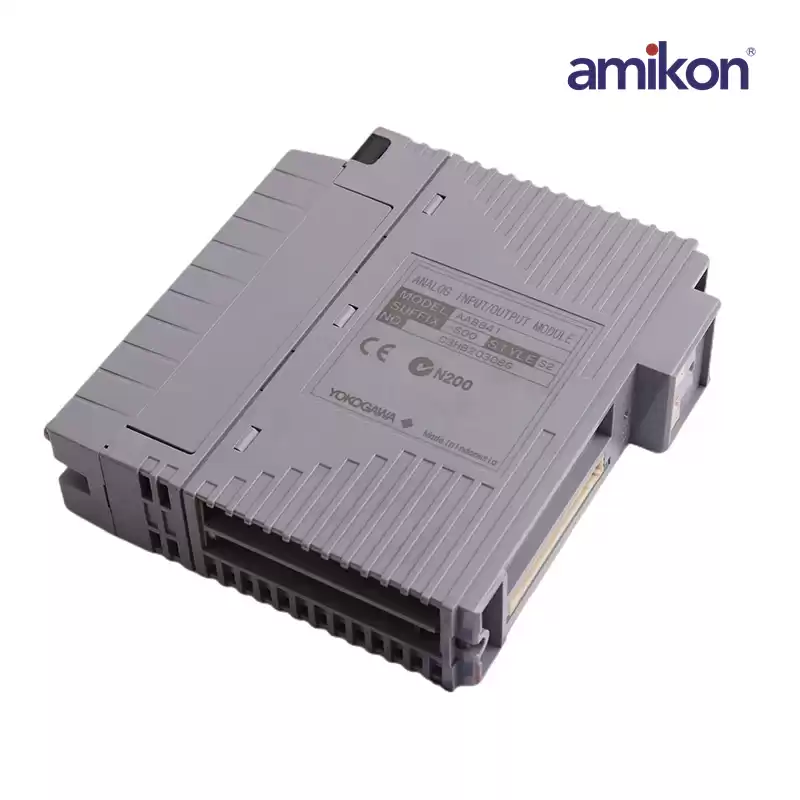

Product Description：Analog I/O Module
|
Shipping Term：TNT DHL FEDEX EMS UPS
|
|
These modules provide 8 inputs and 8 outputs to support up to 8 loops. They can be used in dual-redundant configuration.
|
|
Number of I/O channels 8-channel input/8-channel output, non-isolated (differential input)
|
|
I/O signal Input: 1 to 5 V (allowable common mode voltage ±1 V or less) Allowable input current/ voltage ±7.5 V
|
|
AAB841-S00
|
Data update period 10 ms Input step response time 100 ms Output step response time 40 ms Transmitter power supply 14.8 V or higher (at 20 mA)
26.4 V or less (at 0 mA) (*4) — Setting of 2-wire or 4-wire transmitter For each channel by setting pin — Temperature drift ±0.1 %/10 °C
|
|
