Products Detail:

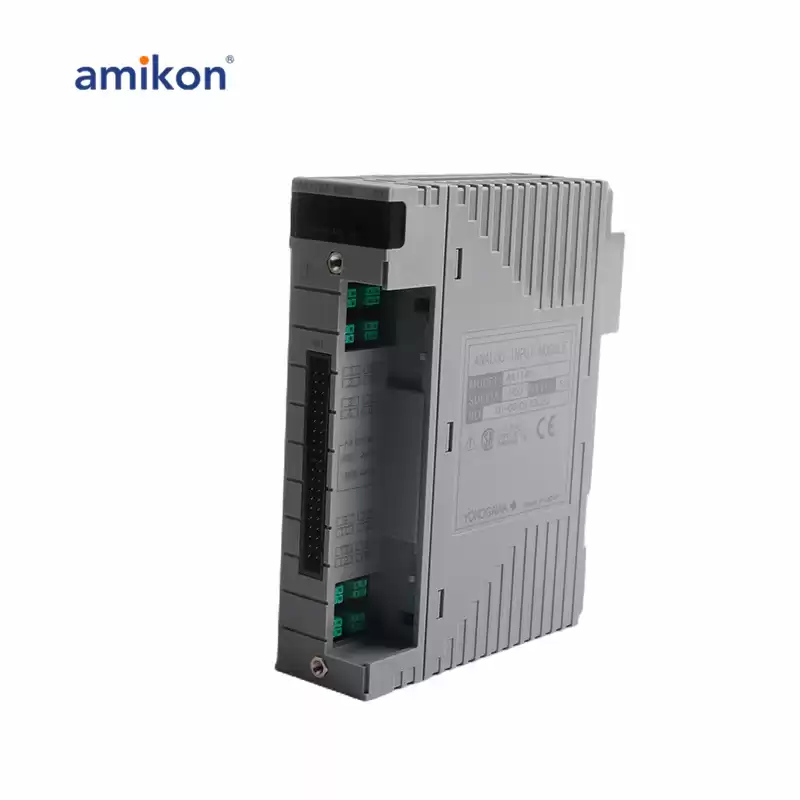

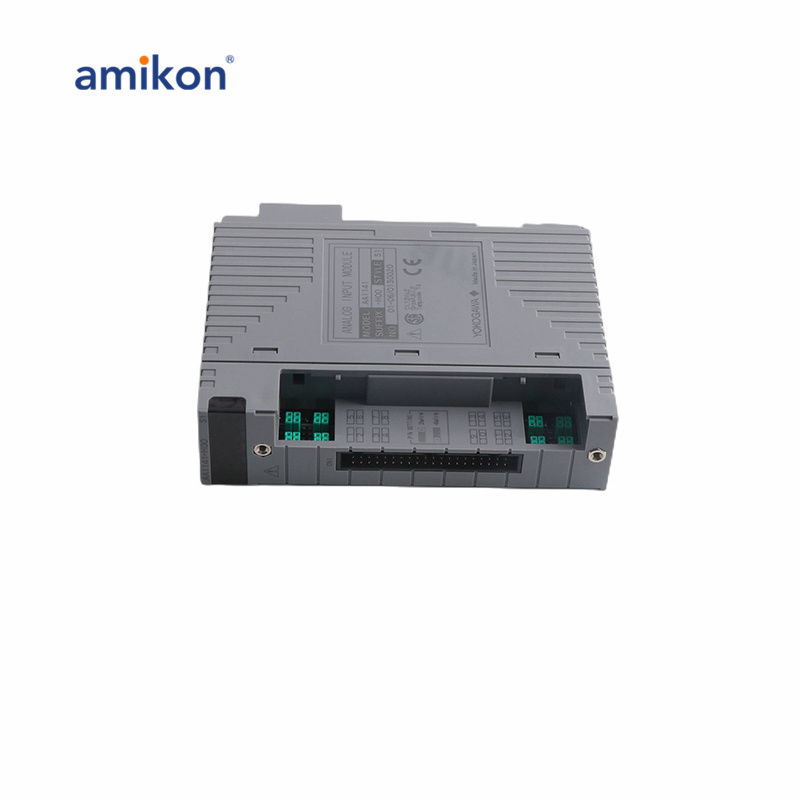

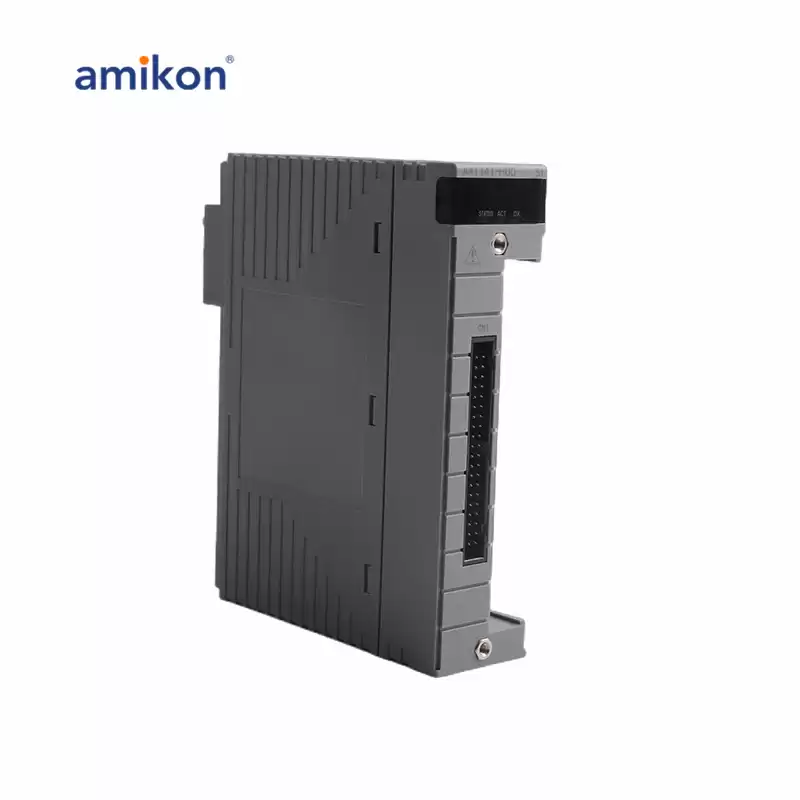

The AAI141-H00 S1 is a 16-channel Analog Input Module (4 to 20 mA, Non-Isolated) designed to interface with field control stations (FCS). It supports HART communication, allowing it to receive HART variables in addition to exchanging standard analog input data via 4–20 mA signals. This module is compatible with 2-wire and 4-wire transmitters, where the required voltage is developed between the connecting terminals for 2-wire transmitters. It can be configured in a dual-redundant setup for enhanced reliability. When installed in remote nodes, the module requires EB401 firmware version 2 or later to enable its HART functionality.
AAI141-H00 S1 - FAQ:
1. What is the primary function of the AAI141-H00 S1 module?
The AAI141-H00 S1 is a 16-channel Analog Input Module that receives 4–20 mA or 1–5 V DC standardized signals from 2-wire or 4-wire transmitters. It also supports HART communication for enhanced data exchange.
2. Can the AAI141-H00 S1 be used in intrinsically safe applications?
The module itself is non-isolated and does not inherently provide intrinsic safety. For such applications, appropriate external barriers or isolators must be used.
3. What is required for HART communication functionality in remote nodes?
For HART communication to function when the module is installed in remote nodes, the EB401 firmware must be Rev 2 or later.
