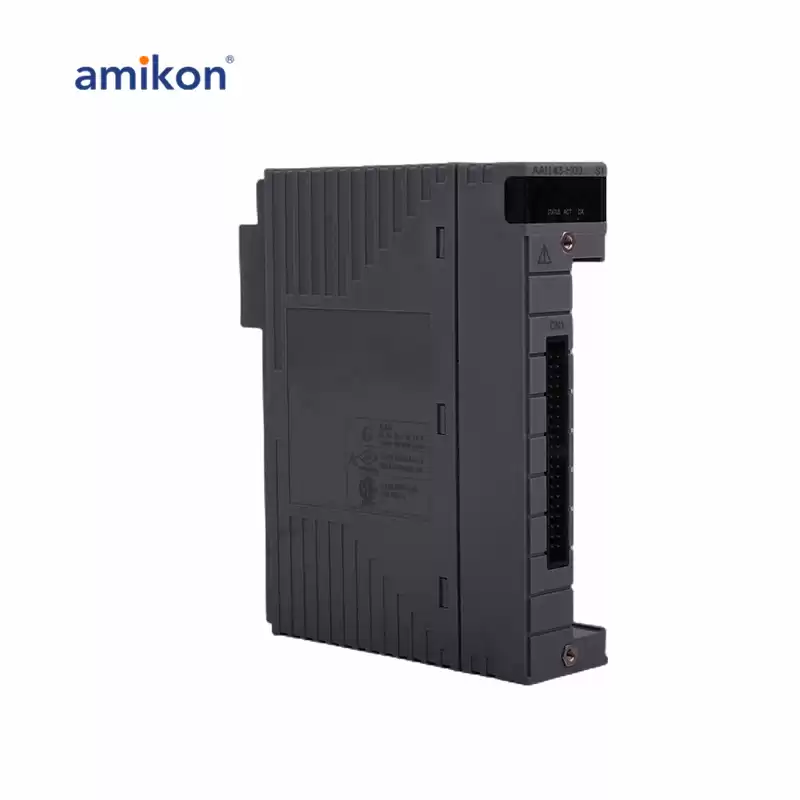

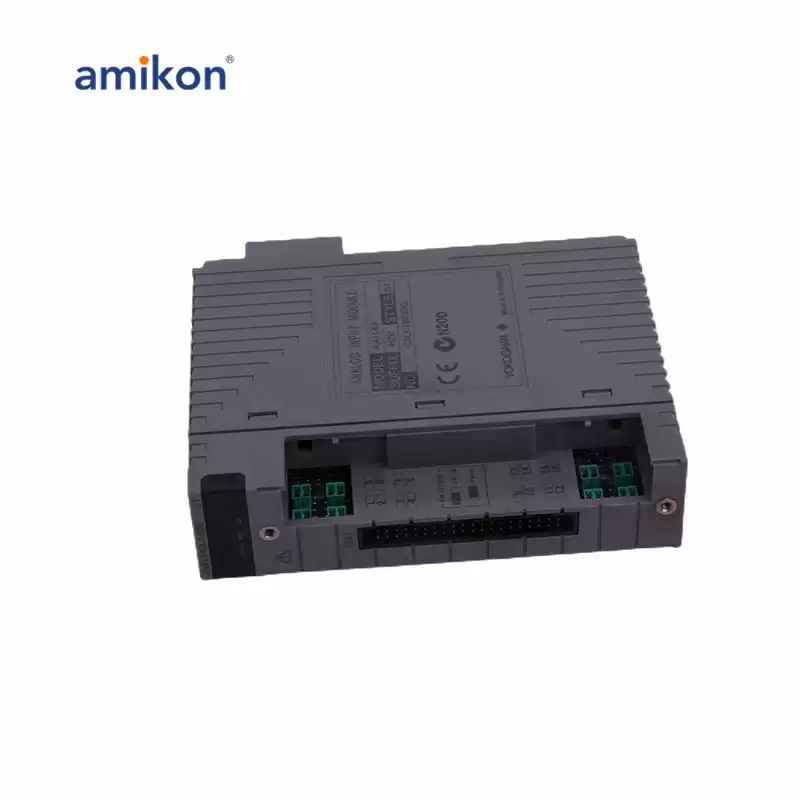

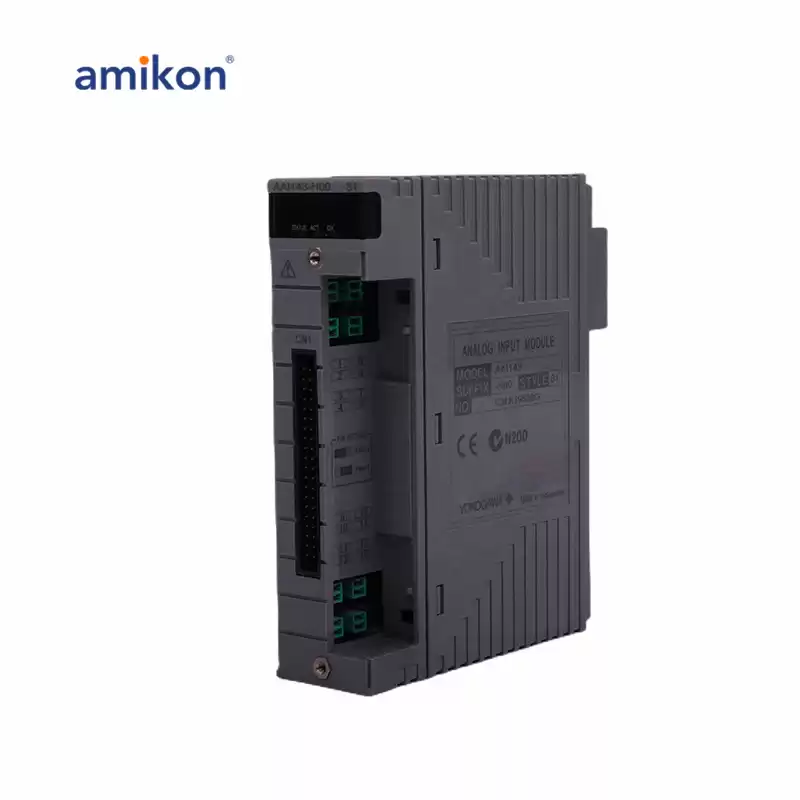

Yokogawa AAI143-H00 S1 Analog Input Module
Brand new and original sealed//Same Day Shipment
- Warranty PeriodOne Year Warranty
- Dimensions3.3x10.8x13cm
- Weight0.25 kg
- Country of OriginJapan
- Brand/ManufaturerYOKOGAWA
- Payment Term100% Advance Payment T/T Bank Wire Transfer
|
We're here when you need us: |
|
Sales Manager：Lisa |
|
WhatsApp/Skype: +86 18965423501 |
|
Wechat: AMKPLC |
Products Detail:
The Yokogawa AAI143-H00 S1 is a 16-channel Analog Input Module designed for 4 to 20 mA signal processing with isolated channels. This module does not support the use of Zener barriers, and for intrinsically safe applications, an isolation barrier must be used. The withstanding voltage for the dedicated cable is rated at 500 V AC between the input signal and the system, while the withstanding voltage for MIL connector cables depends on the cable's specific electrical specifications. Additionally, the module generates voltage between its connection terminals to support 2-wire transmitter operations.Q1: What is the function of the AAI143-H00 S1 module?
A1: The AAI143-H00 S1 is a 16-channel Analog Input Module designed to handle 4 to 20 mA signals with isolated channels. It is used for precise and reliable data acquisition in industrial applications.
Q2: Can this module be used with a Zener barrier?
A2: No, the AAI143-H00 S1 does not support Zener barriers. For intrinsically safe applications, an isolation barrier must be used instead.
Q3: What is the withstanding voltage for the dedicated cable?
A3: The dedicated cable has a withstanding voltage of 500 V AC between the input signal and the system.
Q4: How does the withstanding voltage differ when using a MIL connector cable?
A4: The withstanding voltage for a MIL connector cable depends on the specific electrical specifications of the cable being used.
Q5: Does this module support 2-wire transmitters?
A5: Yes, the module develops the required voltage between its connection terminals to support 2-wire transmitter operations.
