Products Detail:

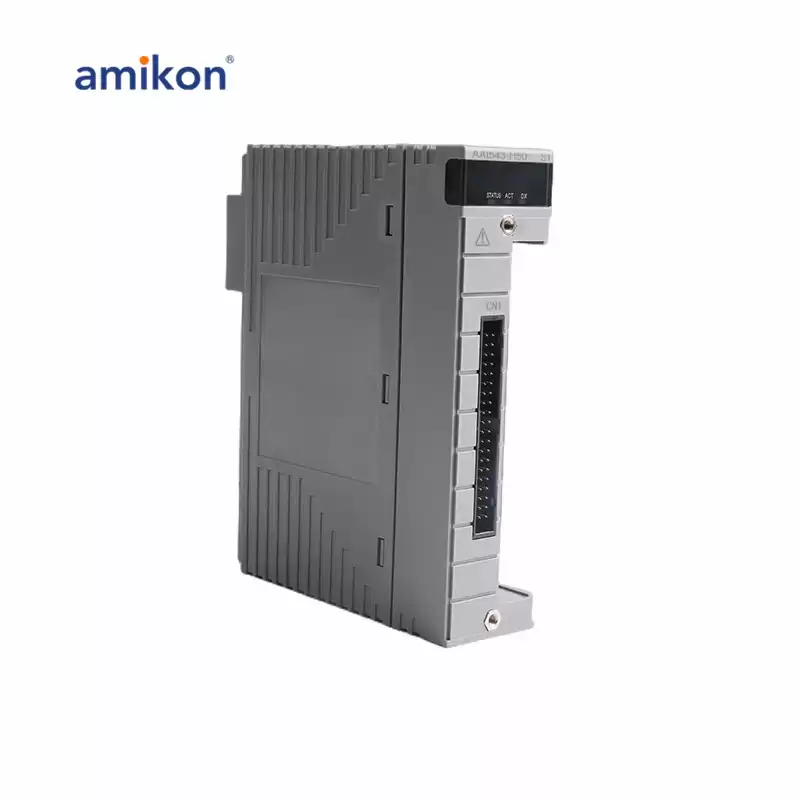

The Yokogawa AAI143-H00 S1 is a 16-channel Analog Input Module designed to handle 4 to 20 mA signals with isolated channels for reliable performance. This module does not support the connection of a Zener barrier and requires the use of an isolation barrier for intrinsically safe applications. When using the dedicated cable, the module can withstand a voltage of 500 V AC between the input signal and the system. For MIL connector cables, the withstanding voltage is determined by the cable's electrical specifications. Additionally, this voltage is developed between the connection terminals for the module’s 2-wire transmitter.
Manufacturers
Yokogawa
Model(s)
Yokogawa Centum CS - Centum VP
Additional Information
Basic Type with HART Communication
Estimated Shipping Size
-Dimensions: 5.0" x 1.0" x 5.0"
-(12.7 cm x 2.5 cm x 12.7 cm)
-Weight: 0 lbs 7.1 oz (0.2kg )
Tariff Code: 8538907080
AAI143-H00 S1 FAQ:
Q1: What is the function of the AAI143-H00 S1 module?
A1: The AAI143-H00 S1 is an Analog Input Module with 16 isolated channels that process 4 to 20 mA signals. It is designed for accurate signal acquisition in industrial applications.
Q2: Can this module be used in intrinsically safe applications?
A2: Yes, but it requires the use of an isolation barrier, as it does not support the connection of a Zener barrier.
Q3: What is the withstanding voltage when using the dedicated cable?
A3: The withstanding voltage is 500 V AC between the input signal and the system when using the dedicated cable.
