Products Detail:

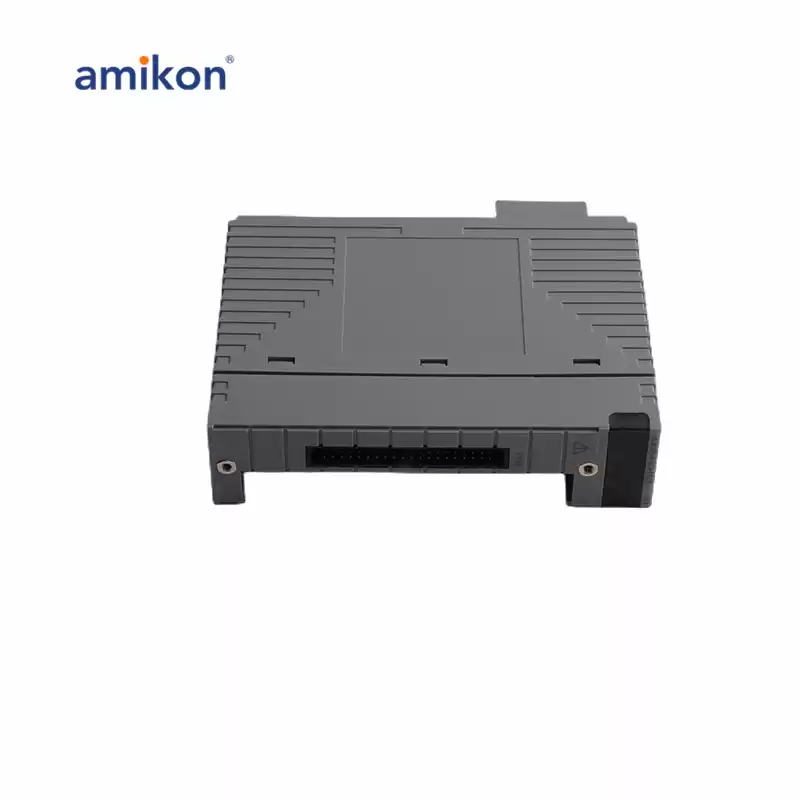

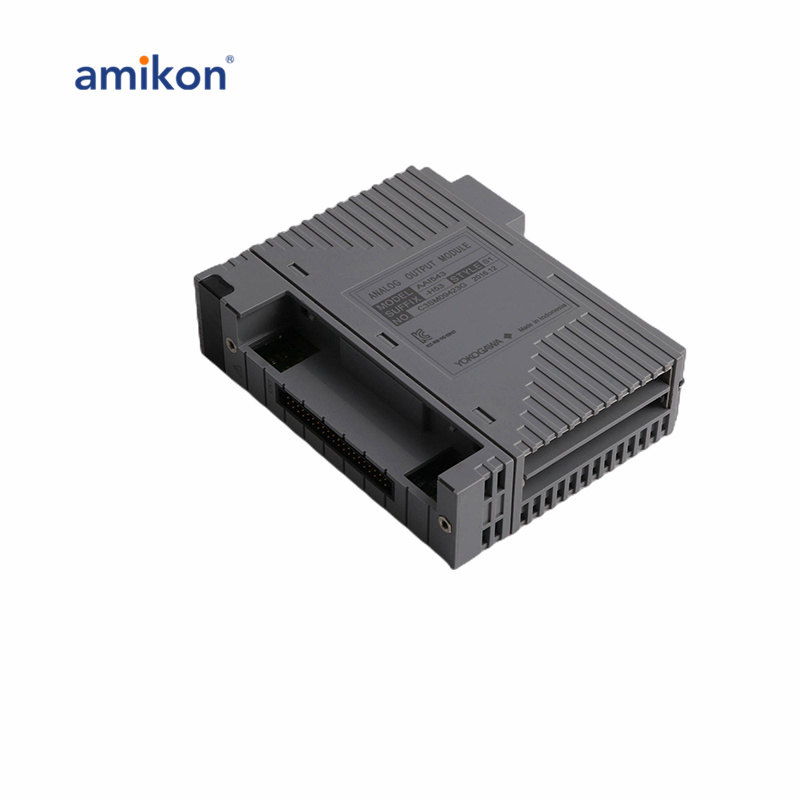

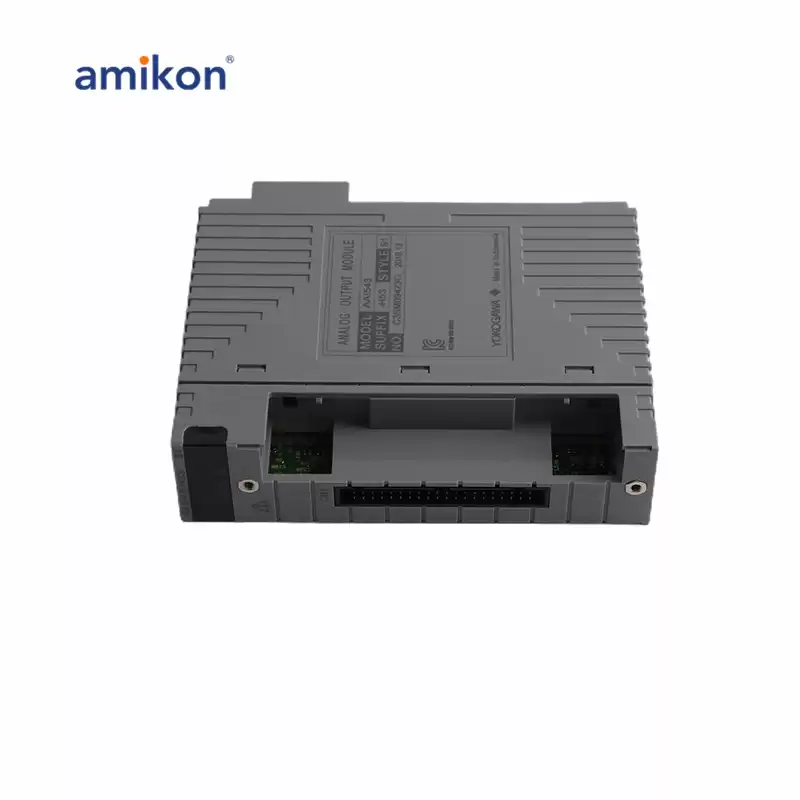

The AAI543-H53 S1 is part of the FIO I/O system, which connects to a control station via an ESB bus and consists of two types of node units: local nodes on the ESB bus and remote nodes on the ER bus. Each node includes a base unit, power supply module, bus interface module, and input/output modules, with the power supply and bus interface modules being redundantly configurable.
When installing modules in ANB10S, ANB10D, ANR10S, ANR10D nodes and the Field Control Unit for FIO (AFV10S, AFV10D), there are limitations on the total number of modules due to power supply constraints.
The system is designed to handle specific parameters such as 1500 V AC for 1 minute, an allowable load resistance from 0 to 750 Ω, with circuit-open detection at less than 0.65 mA. The system has an accuracy of ±48 µA, a data update period of 10 ms, and experiences a drift due to ambient temperature change of ±16 µA/10˚C.
FAQ:
1. What is the redundancy feature in the system?
Both the power supply module and the bus interface module can be configured redundantly, ensuring high availability and reliability for critical applications.
2. How are the nodes connected?
The system uses ESB buses to connect local nodes and ER buses to connect remote nodes. The base unit, power supply module, bus interface module, and input/output modules form the core components of each node.
3. What is the maximum distance for module connections?
Modules can be connected over considerable distances, with specific limits for safe operations, particularly considering power supply constraints in different node configurations.
