Products Detail:

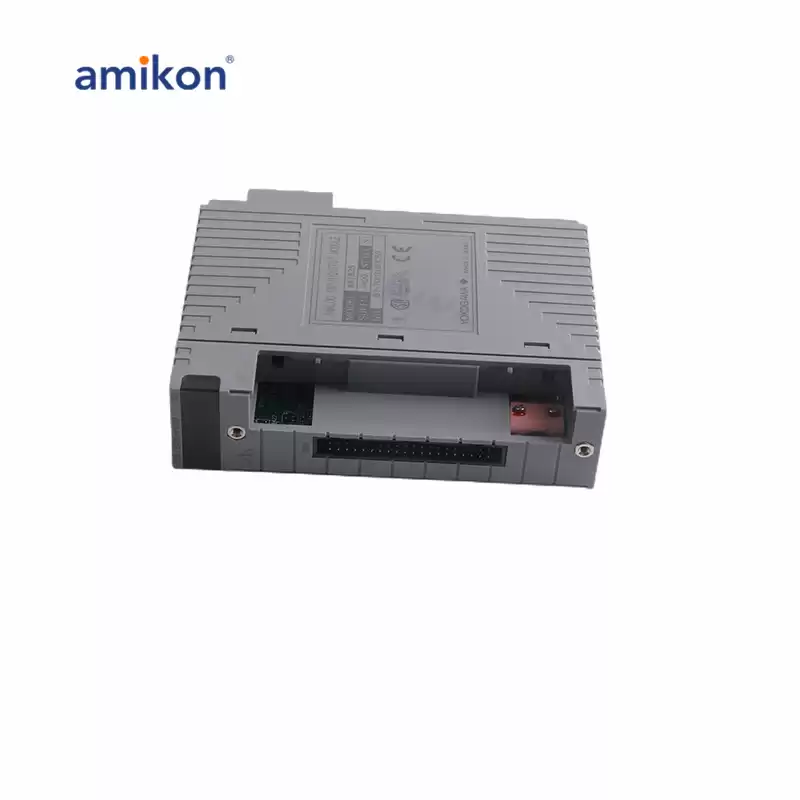

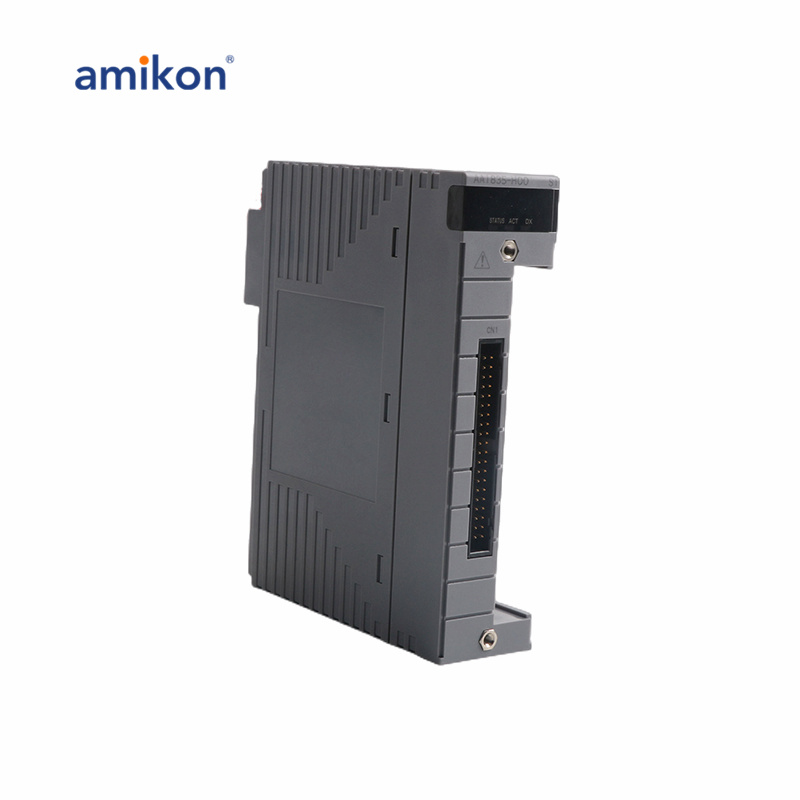

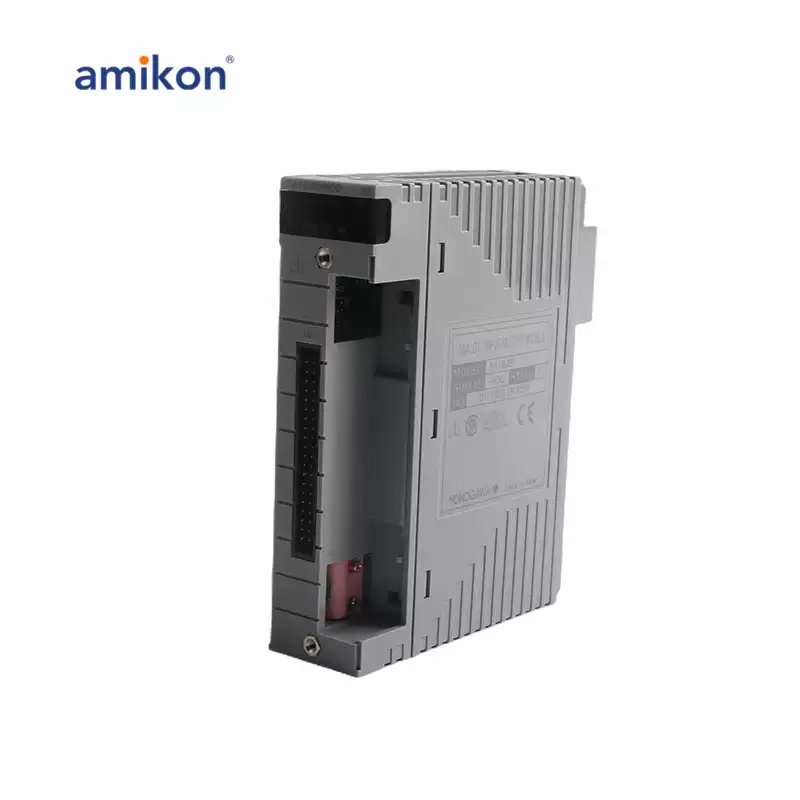

The AAI835-H00 S1 is an Analog Input/Output Module designed for ST3 compatibility with 16 isolated channels. It is used to receive contact or voltage status signals from the field and output status signals to the field via transistor contacts.
The module provides isolation between the field and the system, as well as isolation between each individual channel. It supports an allowable load resistance range of 200 to 750 Ω.
For 2-wire transmitters, a voltage is developed across the connecting terminals of the module. When calculating whether the transmitter's minimum operating voltage requirement will be met, it is important to account for the voltage drop due to the external wiring.
The module is suitable for installation in remote nodes, and can operate effectively in temperature environments ranging from 60 to 70°C, as long as the installation conforms to the specified temperature conditions.
FAQ:
1. What types of signals can the AAI835-H00 S1 module handle?
The AAI835-H00 S1 module is designed to handle 4-20 mA current input and output signals. This is commonly used in industrial applications for transmitting data between the control system and field instruments, such as sensors and actuators.
2. Is the module isolated?
Yes, the AAI835-H00 S1 module is isolated between its channels. This means that the input and output channels are electrically separated to prevent interference or damage from ground loops, transients, or noise.
3. What is the maximum allowable load resistance?
The AAI835-H00 S1 module supports an allowable load resistance of 200 to 750 Ω for its 2-wire transmitter, ensuring it can accommodate a range of industrial devices.
